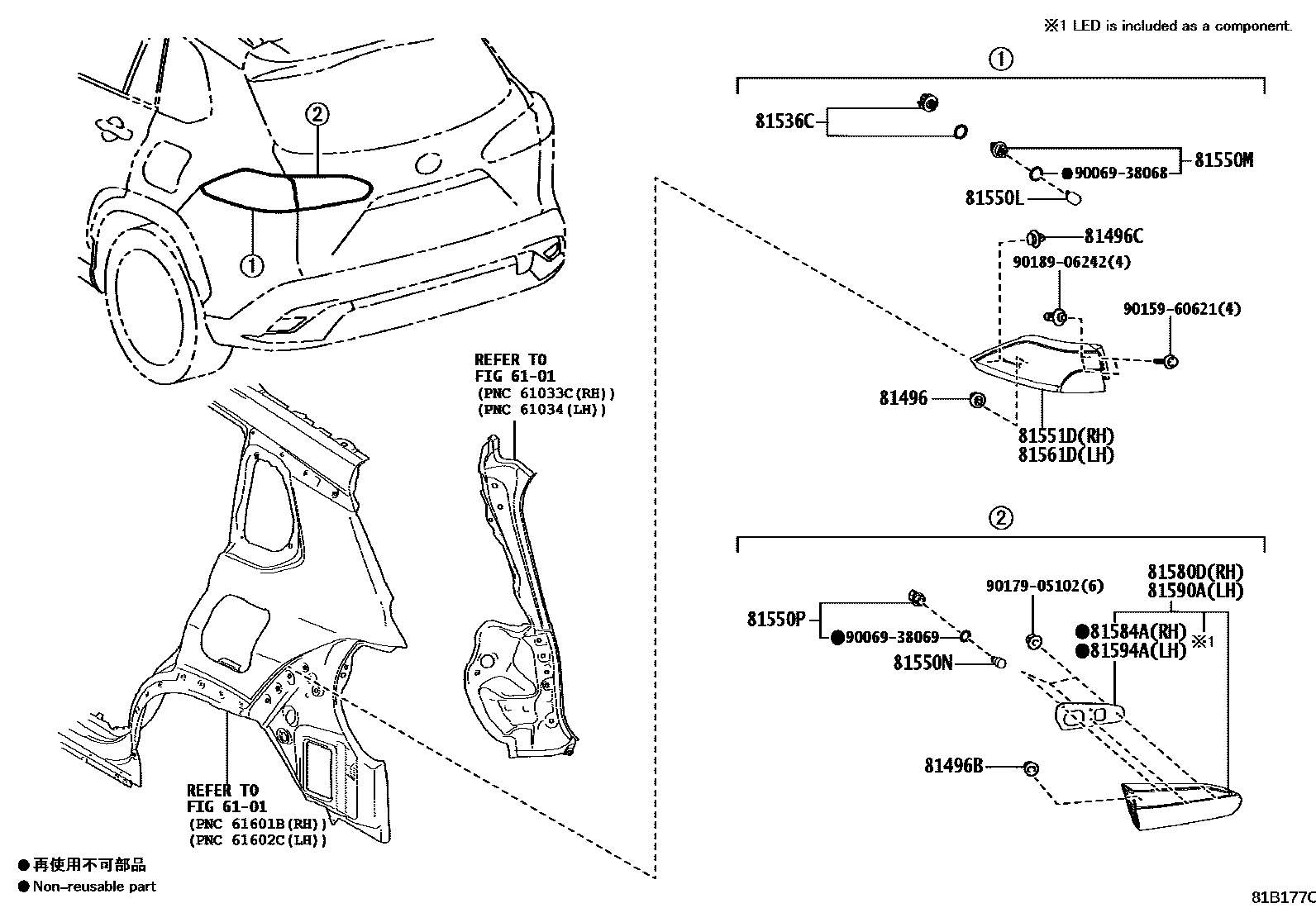

REAR COMBINATION LAMP

6101

81496GUIDE, REAR COMBINATION LAMP

main81496-52020×2iMXGA10,MXGH1#,ZVG1#202207

81496BGUIDE, REAR LAMP

main81496-52020×2iMXGA10,MXGH1#,ZVG1#202207

81496CGUIDE, REAR COMBINATION LAMP, NO.2

main81496-60010×2iMXGA10,MXGH1#,ZVG1#202207

81536CLED, TAIL & STOP LAMP

main81536-16700×2iMXGA10,MXGH1#,ZVG1#202207

81550LBULB, REAR TURN SIGNAL LAMP

main90981-CB006×2iMXGA10,MXGH1#,ZVG1#202207

12V 21W

81550MSOCKET, REAR TURN SIGNAL LAMP

main90069-81137×2iMXGA10,MXGH1#,ZVG1#202207

81550NBULB, BACK UP LAMP

main90981-CB007×2iMXGA10,MXGH1#,ZVG1#202207

12V 16W

81550PSOCKET, BACK UP LAMP

main90069-81138×2iMXGA10,MXGH1#,ZVG1#202207

81551DLENS & BODY, REAR COMBINATION LAMP, RH

main81551-16690iMXGA10,MXGH10..J;MXGH12,15,ZVG1#..N..EUR202207

main81551-16700iMXGH15..N..ARL;MXGA10,MXGH10..E,N;MXGH12,15,ZVG1#..E,G202207

81561DLENS & BODY, REAR COMBINATION LAMP, LH

main81561-16690iMXGA10,MXGH10..J;MXGH12,15,ZVG1#..N..EUR202207

main81561-16700iMXGH15..N..ARL;MXGA10,MXGH10..E,N;MXGH12,15,ZVG1#..E,G202207

81580DLAMP ASSY, REAR, RH

main81581-16010iMXGA10,MXGH10..J;MXGH12,15,ZVG1#..LHD..N202207

main81581-16020iMXGH12,15,ZVG13..RHD..N..EUR202207

main81581-16030iMXGH12,15,ZVG1#..LHD..(E,G);MXGA10,MXGH10,15..(E,N)..ARL202207-202401

main81581-16031iMXGH12,15,ZVG1#..LHD..(E,G);MXGA10,MXGH10,15..(E,N)..ARL202401

main81581-16040iMXGH12,15,ZVG13..RHD..(E,G)..EUR202207-202401

main81581-16041iMXGH12,15,ZVG13..RHD..(E,G)..EUR202401

81584AGASKET, REAR LAMP RH

main81584-16010iMXGA10,MXGH1#,ZVG1#202207

81590ALAMP ASSY, REAR, LH

main81591-16010iMXGA10,MXGH10..J;MXGH12,15,ZVG13..RHD..N..EUR202207

main81591-16020iMXGH12,15,ZVG1#..LHD..N202207

main81591-16030iMXGH15..N..ARL;MXGA10,MXGH10..E,N;MXGH12,15,ZVG13..RHD..(E,G)202207-202401

main81591-16031iMXGH15..N..ARL;MXGA10,MXGH10..E,N;MXGH12,15,ZVG13..RHD..(E,G)202401

main81591-16050iMXGH12,15,ZVG1#..LHD..(E,G)202207-202401

main81591-16051iMXGH12,15,ZVG1#..LHD..(E,G)202401

81594AGASKET, REAR LAMP LH

main81594-16010iMXGA10,MXGH1#,ZVG1#202207

9006938068

main90069-38068

9006938069

main90069-38069

9015960621

main90159-60621

9017905102

main90179-05102

9018906242

main90189-06242

20 parts on this diagram · 1 diagram in section
