REAR SEAT & SEAT TRACK

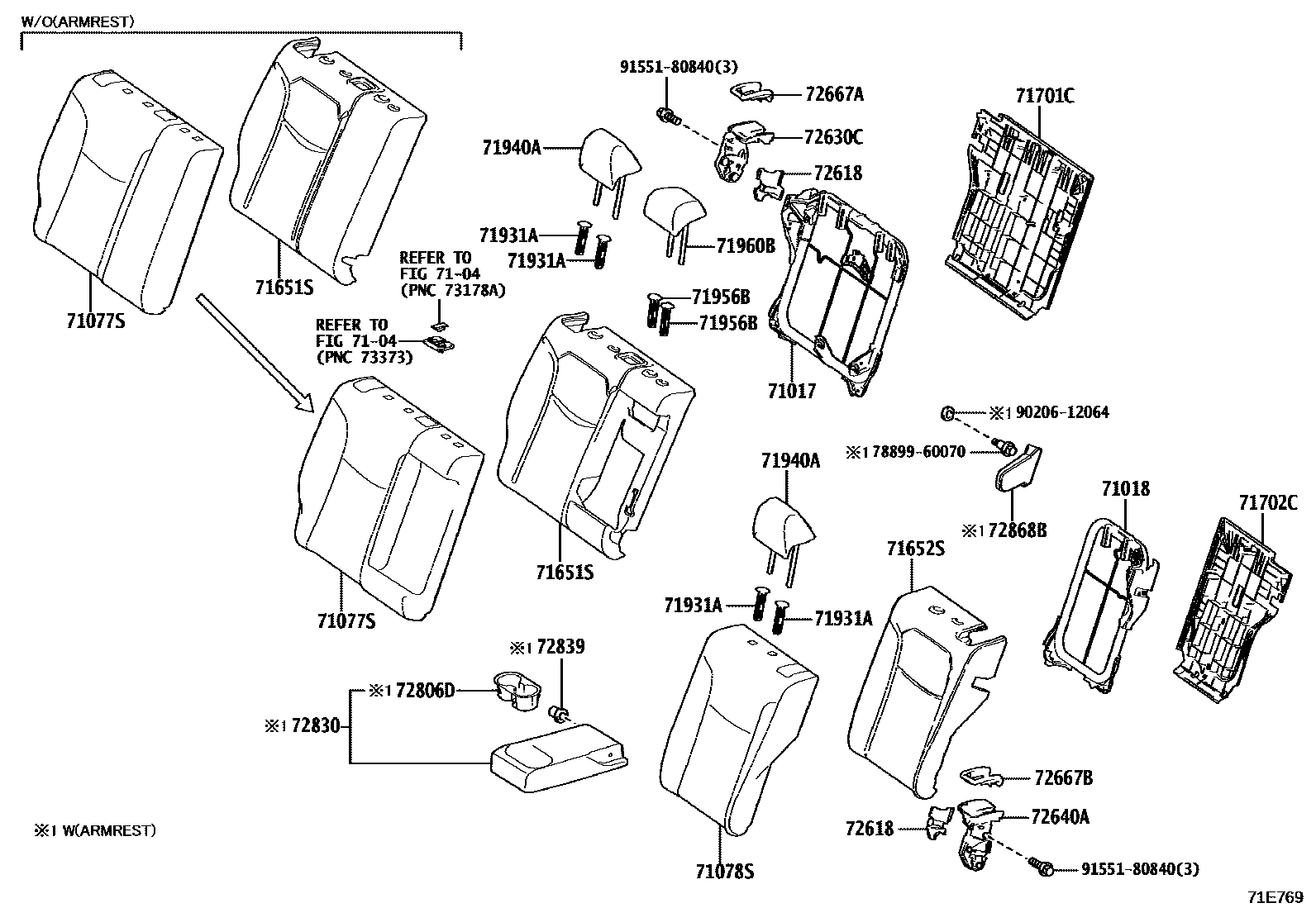

Parts diagram
71017FRAME SUB-ASSY, REAR SEATBACK, RH
main71017-16290i202207
main71017-16300i202207
71018FRAME SUB-ASSY, REAR SEATBACK, LH
main71018-16150i202207
7104SEAT BELT & CHILD RESTRAINT SEAT
→ Go to FIG 71-04
71077SCOVER, REAR SEATBACK, RH (FOR SEPARATE TYPE)
main71077-16A10-B3i202207-202302
MID. GRAY,TRIM1#
main71077-16A10-C1i202207-202302
BLACK,TRIM2#
main71077-16A11-B3i202302
BLACK/MD.GRAY,TRIM1#
main71077-16A11-C1i202302
BLACK/MEDIUM GRAY,TRIM2#
main71077-16A31-B4i202302
MD.GRAY,TRIM1#; SEAT COVER MATERIAL-FABRIC & LEATHER&SEAT HEATER-WITH,MD.GRAY,TRIM1#
main71077-16A70-C2i202207-202302
BLACK,TRIM2#
main71077-16A71-C2i202302
BLACK/MEDIUM GRAY,TRIM2#
main71077-16A80-C1i202207-202302
BLACK,TRIM2#
main71077-16A81-C1i202302
BLACK/DK.GRAY,TRIM2#
main71077-16A00-B2supersedes 71077-16A41-B0i202211-202302
HONG KONG SPEC,MD. GRAY,TRIM1#
main71077-16A00-C0supersedes 71077-16A41-C0i202211-202302
HONG KONG SPEC,BLACK,TRIM2#
main71077-16A01-B2supersedes 71077-16A41-B0i202302
HONG KONG SPEC,BLACK/MD.GRAY,TRIM1#
main71077-16A01-C0supersedes 71077-16A41-C0i202302
HONG KONG SPEC,BLACK,TRIM2#
main71077-16A30-C3i202207-202302
BLACK,TRIM2#; SEAT COVER MATERIAL-FABRIC & LEATHER&SEAT HEATER-WITH,BLACK,TRIM2#
main71077-16A31-C3i202302
BLACK/DK.GRAY/MEDIUM GRAY,TRIM2#; SEAT COVER MATERIAL-FABRIC & LEATHER&SEAT HEATER-WITH,BLACK/DK.GRAY/MEDIUM GRAY,TRIM2#
main71077-16A60-C2i202207-202302
SEAT COVER MATERIAL-LEATHER&SEAT HEATER-WITH,BLACK,TRIM2#; SEAT COVER MATERIAL-LEATHER,BLACK,TRIM2#
main71077-16A61-C2supersedes 71077-16A31-C3i202302
HONG KONG SPEC,BLACK/MD.GRAY,TRIM2#; SEAT COVER MATERIAL-LEATHER,BLACK/MD.GRAY,TRIM2#
main71077-16B00-C0i202211-202302
HONG KONG SPEC,BLACK/DARK GRAY,TRIM2#
main71077-16B01-C0i202302
HONG KONG SPEC,BLACK/DK.GRAY,TRIM2#
71078SCOVER, REAR SEATBACK, LH(FOR SEPARATE TYPE)
main71078-16A00-B3i202207-202302
MID. GRAY,TRIM1#
main71078-16A00-C2i202207-202302
BLACK,TRIM2#
main71078-16A01-B3i202302
BLACK/MD.GRAY,TRIM1#
main71078-16A01-C2i202302
BLACK/MEDIUM GRAY,TRIM2#
main71078-16A20-C3i202207-202302
BLACK,TRIM2#; SEAT COVER MATERIAL-FABRIC & LEATHER&SEAT HEATER-WITH,BLACK,TRIM2#
main71078-16A21-B4i202302
MD.GRAY,TRIM1#; SEAT COVER MATERIAL-FABRIC & LEATHER&SEAT HEATER-WITH,MD.GRAY,TRIM1#
main71078-16A21-C3i202302
BLACK/DK.GRAY/MEDIUM GRAY,TRIM2#; SEAT COVER MATERIAL-FABRIC & LEATHER&SEAT HEATER-WITH,BLACK/DK.GRAY/MEDIUM GRAY,TRIM2#
main71078-16A30-C2i202207-202302
BLACK,TRIM2#; SEAT COVER MATERIAL-LEATHER&SEAT HEATER-WITH,BLACK,TRIM2#; SEAT COVER MATERIAL-LEATHER,BLACK,TRIM2#
main71078-16A31-C2i202302
BLACK/MEDIUM GRAY,TRIM2#; SEAT COVER MATERIAL-LEATHER,BLACK/MEDIUM GRAY,TRIM2#
71651SPAD, REAR SEATBACK, RH(FOR SEPARATE TYPE)
main71651-16400i202207
main71651-16410i202207
71652SPAD, REAR SEATBACK, LH(FOR SEPARATE TYPE)
main71652-16190i202207
71701CBOARD SUB-ASSY, REAR SEATBACK, RH
main71701-16010i202207
71702CBOARD SUB-ASSY, REAR SEATBACK, LH
main71702-16010i202207
71931ASUPPORT, REAR SEAT HEADREST
main71930-47050-C5×2i202207
W(LOCK),BLACK,TRIM2#
main71930-47050-P0×2i202207
W(LOCK),MD. GRAY,TRIM1#
main71931-47030-C4×2i202207
W/O(LOCK),BLACK,TRIM2#
main71931-47030-P1×2i202207
W/O(LOCK),MD. GRAY,TRIM1#
71940AHEADREST ASSY, REAR SEAT
main71940-16090-B3×2i202207
MID. GRAY,TRIM1#
main71940-16090-C2×2i202207
BLACK,TRIM2#
main71940-16100-B3×2i202207
MD.GRAY,TRIM1#; SEAT COVER MATERIAL-FABRIC & LEATHER&SEAT HEATER-WITH,MD.GRAY,TRIM1#
main71940-16100-C3×2i202207
BLACK,TRIM2#; SEAT COVER MATERIAL-FABRIC & LEATHER&SEAT HEATER-WITH,BLACK,TRIM2#
71956BSUPPORT, REAR SEAT HEADREST
main71930-47050-C5i202207
W(LOCK),BLACK,TRIM2#
main71930-47050-P0i202207
W(LOCK),MD. GRAY,TRIM1#
main71931-47030-C4i202207
W/O(LOCK),BLACK,TRIM2#
main71931-47030-P1i202207
W/O(LOCK),MD. GRAY,TRIM1#
71960BHEADREST ASSY, REAR SEAT, CENTER
main71960-16020-B3i202207
MID. GRAY,TRIM1#
main71960-16020-C2i202207
BLACK,TRIM2#
main71960-16030-B4i202207
MD.GRAY,TRIM1#; SEAT COVER MATERIAL-FABRIC & LEATHER&SEAT HEATER-WITH,MD.GRAY,TRIM1#
main71960-16030-C4i202207
BLACK,TRIM2#; SEAT COVER MATERIAL-FABRIC & LEATHER&SEAT HEATER-WITH,BLACK,TRIM2#
72618PROTECTOR, REAR SEATBACK LOCK STRIKER
main72618-16020i202207
RH
main72618-16030i202207
LH
72630CLOCK ASSY, REAR SEATBACK, RH
main72630-16250-B0i202207
MD. GRAY,TRIM1#
main72630-16250-C1i202207
BLACK,TRIM2#
72640ALOCK ASSY, REAR SEATBACK, LH
main72640-16170-B0i202207
MD. GRAY,TRIM1#
main72640-16170-C1i202207
BLACK,TRIM2#
72667ABEZEL, REAR SEATBACK LOCK, UPPER RH
main72667-16010-B0i202207
MD. GRAY,TRIM1#
main72667-16010-C1i202207
BLACK,TRIM2#
72667BBEZEL, REAR SEATBACK LOCK, UPPER LH
main72667-16020-B0i202207
MD. GRAY,TRIM1#
main72667-16020-C1i202207
BLACK,TRIM2#
72806DHOLDER SUB-ASSY, REAR SEAT CENTER ARMREST CUP
main72806-47010-B6i202207
MD. GRAY,TRIM1#
main72806-47010-C1i202207
BLACK,TRIM2#
72830ARMREST ASSY, REAR SEAT, CENTER
main72830-16010-B2i202207
MD. GRAY,TRIM1#
main72830-16010-C0i202207
BLACK,TRIM2#
main72830-16020-B2i202207
MD. GRAY,TRIM1#; SEAT COVER MATERIAL-FABRIC & LEATHER&SEAT HEATER-WITH,MD. GRAY,TRIM1#
main72830-16020-C1i202207
BLACK,TRIM2#; SEAT COVER MATERIAL-FABRIC & LEATHER&SEAT HEATER-WITH,BLACK,TRIM2#
72839SHIM, REAR SEAT ARMREST HINGE
main72839-22010i202207
72868BCOVER, CENTER ARMREST HINGE
main72868-12080-B3i202207
MD. GRAY,TRIM1#
main72868-12080-C0i202207
BLACK,TRIM2#
7889960070BOLT, FRONT SEAT
main78899-60070
9020612064
main90206-12064
9155180840
main91551-80840

25 parts on this diagram · 3 diagrams in section
