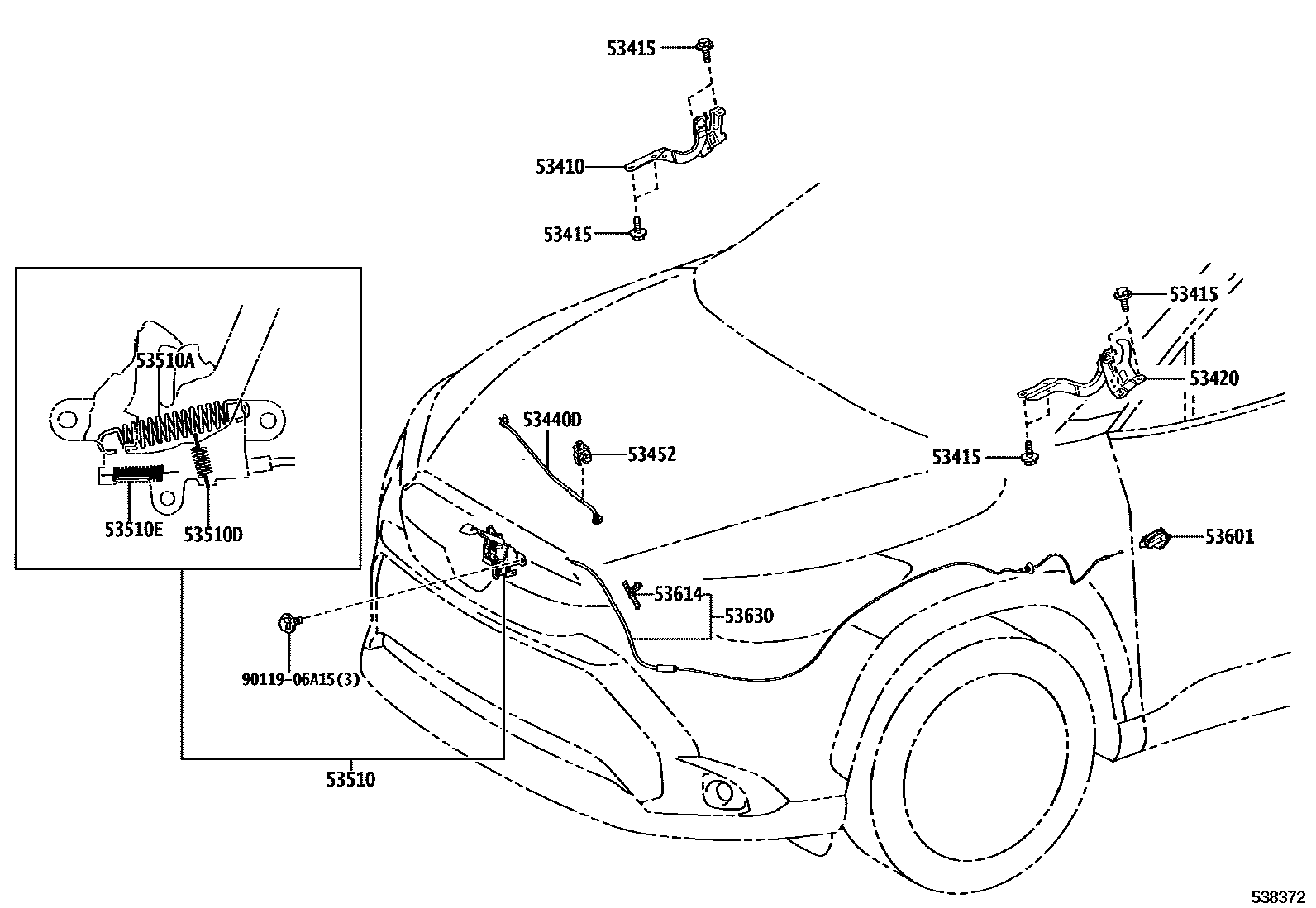

HOOD LOCK & HINGE
53410HINGE ASSY, HOOD, RH
53415BOLT, HOOD HINGE
53420HINGE ASSY, HOOD, LH
53440DSUPPORT ASSY, HOOD
53452HOLDER, HOOD STAY
53510LOCK ASSY, HOOD
NEW ZEALAND SPEC&ANTI-THEFT SYSTEM-WITH(IMMOBILIZER & ALARM)
HONG KONG SPEC; SINGAPORE SPEC
GEORGIA,AZERBAIJAN SPEC; TURKEY SPEC; UKRAINE SPEC; UKRAINE,MOLDOVA SPEC
53510ASPRING, TENSION(FOR HOOD LOCK)
WD=0.9,CW=21
53510DSPRING, TENSION(FOR HOOD LOCK)
WD=1.2,CW=8.5
53510ESPRING, TENSION(FOR HOOD LOCK)
WD=1.8,CW=13
53601LEVER SUB-ASSY, HOOD LOCK CONTROL
main53601-30100-C0iMXGA10,MXGH10,15..E..ARL; MXGH15..N..ARL;MXGH12,15,ZVG12..EUR;MXGA10,MXGH10,ZVG13..G,J,N202207
BLACK,TRIM1#,2#; BLACK,TRIM2#
53614CLAMP, HOOD LOCK CONTROL CABLE
53630CABLE ASSY, HOOD LOCK CONTROL
9011906A15
main90119-06A15
13 parts on this diagram · 2 diagrams in section
