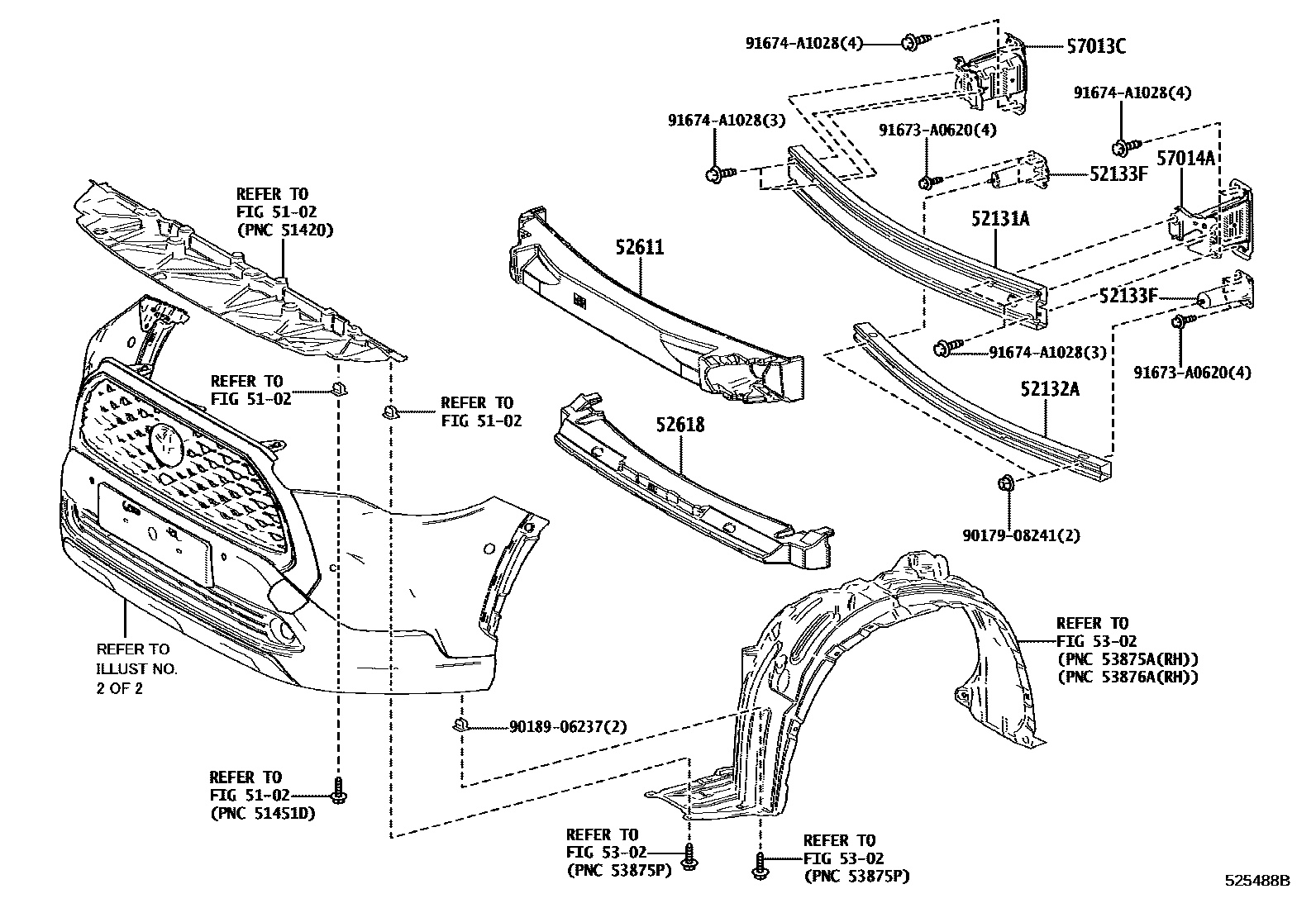

FRONT BUMPER & BUMPER STAY

0001 1 0002 1

5102

52131AREINFORCEMENT, FRONT BUMPER

main52131-16110iMXGA10,MXGH1#,ZVG1#202207

52132AREINFORCEMENT, FRONT BUMPER, NO.2

main52132-12150iMXGA10,MXGH1#,ZVG1#202207-202409

main52132-12151iMXGA10,MXGH1#,ZVG1#202410

52133FBRACKET, FRONT BUMPER, RH

main52133-12190iMXGA10,MXGH1#,ZVG1#202207

52611ABSORBER, FRONT BUMPER ENERGY

main52611-16070iMXGA10,MXGH1#,ZVG1#202207

52618ABSORBER, FRONT BUMPER, LOWER

main52618-16010iMXGA10,MXGH1#,ZVG1#202207

5302

57013CBRACKET SUB-ASSY, FRONT SIDE MEMBER, RH

main57013-16010iMXGA10,MXGH1#,ZVG1#202207

57014ABRACKET SUB-ASSY, FRONT SIDE MEMBER, LH

main57014-16010iMXGA10,MXGH1#,ZVG1#202207

9017908241

main90179-08241

9018906237

main90189-06237

91673A0620

main91673-A0620

91674A1028

main91674-A1028

13 parts on this diagram · 2 diagrams in section
