1104CYLINDER HEAD

→ Go to FIG 11-04

1708VACUUM PIPING

→ Go to FIG 17-08

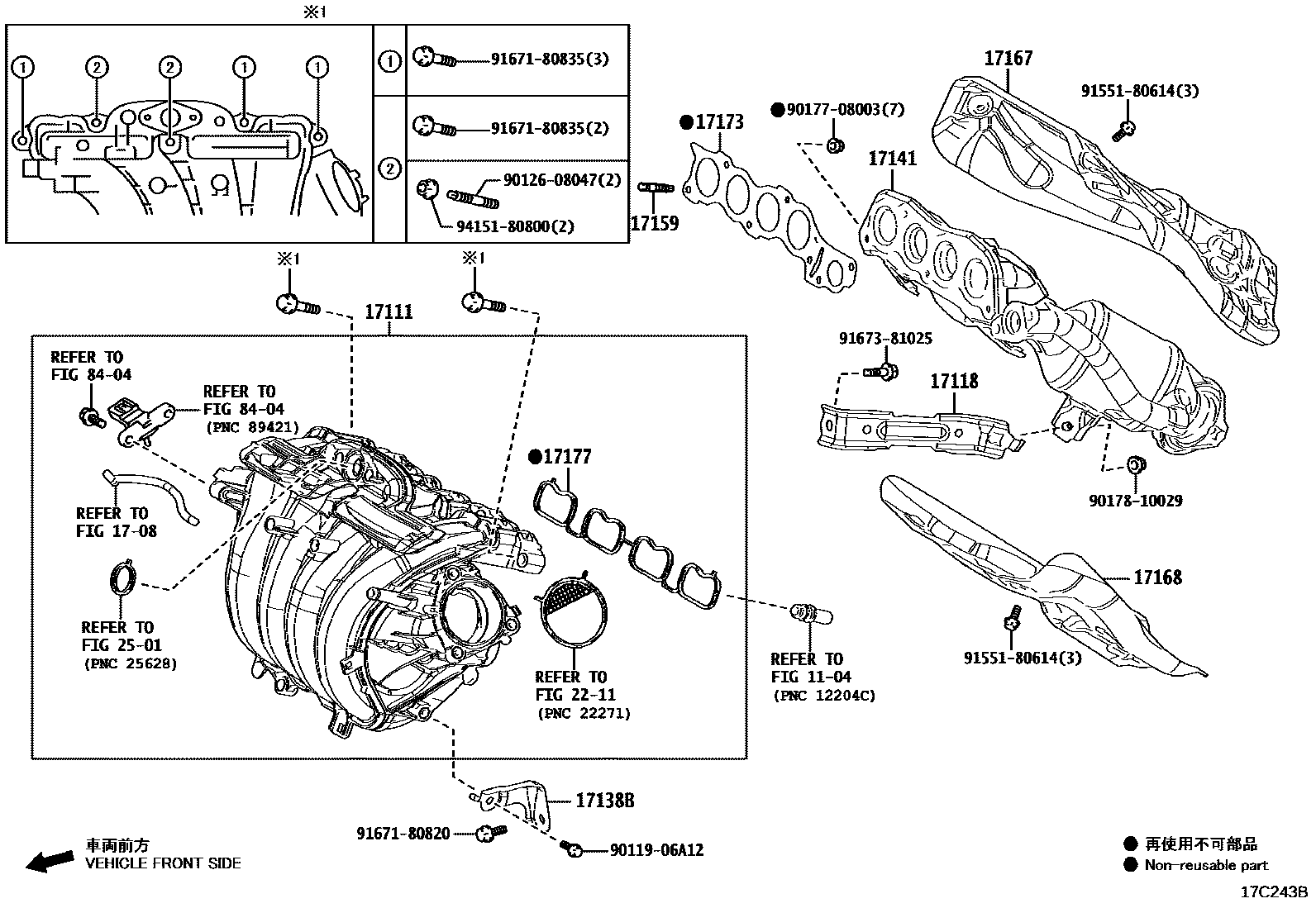

17111MANIFOLD, INTAKE

main17120-24010i202207

main17120-24020i202207

main17120-37110i202207

17118STAY, MANIFOLD

main17118-24010i202207

main17118-37100i202207

17138BSTAY, INTAKE MANIFOLD

main17138-24010i202207

main17138-24020i202207

17141MANIFOLD, EXHAUST

main17141-24120i202207

main17141-24300i202401

GEORGIA,AZERBAIJAN SPEC; UKRAINE SPEC; UKRAINE,MOLDOVA SPEC

main17141-24310i202207-202401

*114=*710

main17141-24320i202207-202401

*114=*721; *114=*721,GEORGIA,AZERBAIJAN SPEC; *114=*721,UKRAINE SPEC; *114=*721,UKRAINE,MOLDOVA SPEC

main17141-24510i202401

*114=*752

main17141-37310i202207-202401

*114=TOYOTA/AT37310Y

main17141-37370i202401

*114=*757

17159BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD)

main90126-08026×2i202207

NO.1

main90126-08052×7i202207

NO.2

17167INSULATOR, EXHAUST MANIFOLD HEAT, NO.1

main17167-24030i202207

GEORGIA,AZERBAIJAN SPEC; UKRAINE SPEC; UKRAINE,MOLDOVA SPEC

main17167-24060i202207-202309

main17167-24061i202310

main17167-37120i202207

17168INSULATOR, EXHAUST MANIFOLD HEAT, NO.2

main17168-24030i202207

(J)

main17168-37150i202207

main17168-F2050i202207

(L)

17173GASKET, EXHAUST MANIFOLD TO HEAD

main17173-24010i202207

main17173-37010i202207

17177GASKET, INTAKE MANIFOLD TO HEAD, NO.1

main17171-24020i202207

main17177-37030i202207

2211FUEL INJECTION SYSTEM

→ Go to FIG 22-11

2501EXHAUST GAS RECIRCULATION SYSTEM

→ Go to FIG 25-01

8404ELECTRONIC FUEL INJECTION SYSTEM

→ Go to FIG 84-04

9011906A12

main90119-06A12

9012608047

main90126-08047

9017708003

main90177-08003

9017810029

main90178-10029

9155180614

main91551-80614

9167180820

main91671-80820

9167180835

main91671-80835

9167381025

main91673-81025

9415180800

main94151-80800
