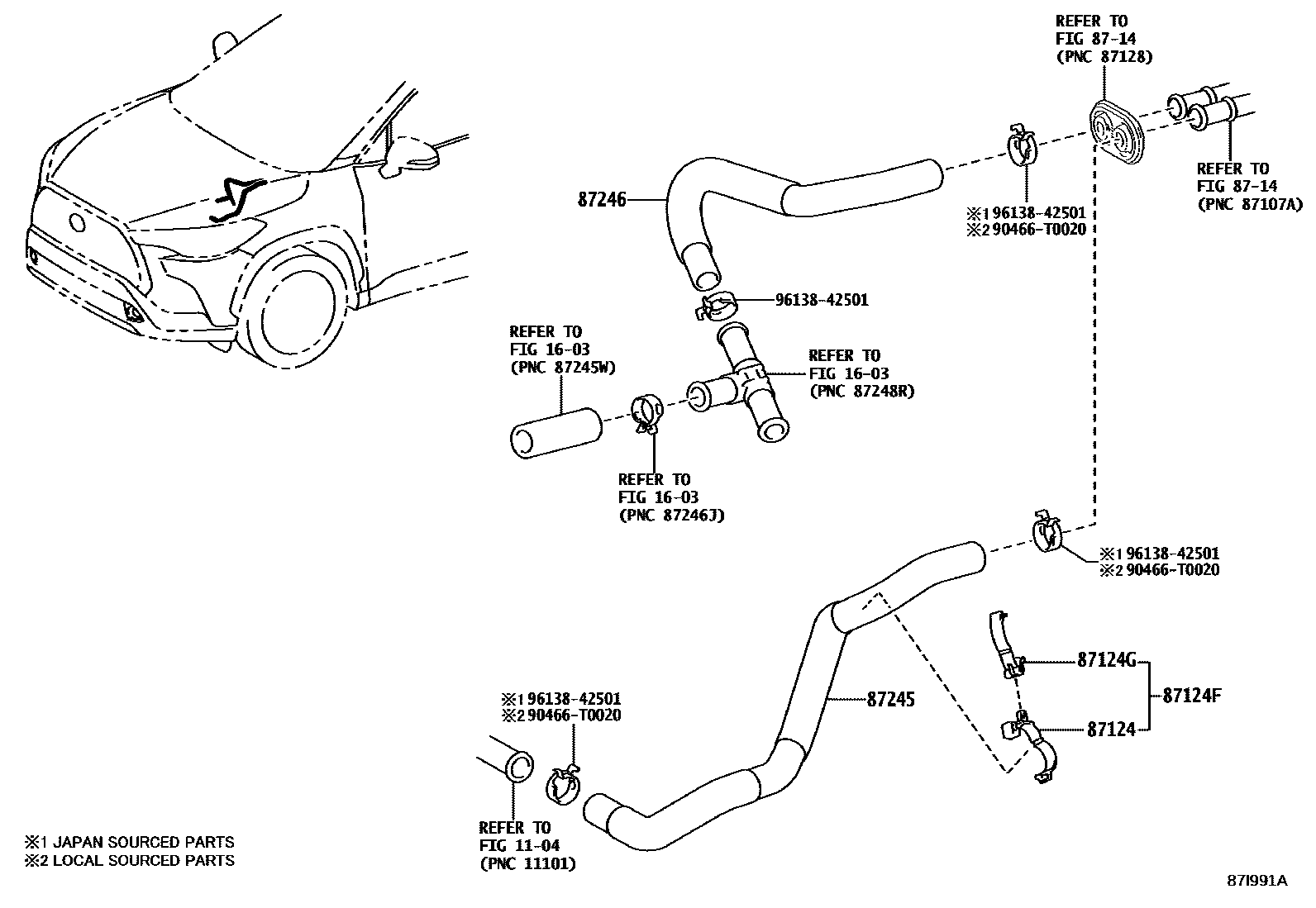

HEATING & AIR CONDITIONING - WATER PIPING

0001 1 0002 1 0003 1

1104

1603

87124CLAMP, HEATER

main87124-11030iZSG10..RHD..THP;ZSG10..LHD..E..GEN;ZSG10..LHD..SAP..(G,N);ZSG10..(E,G,J)..(GCC,VN);ZSG10..(G,N)..(SA,TAIW,VN);ZSG10..(MAP,SAP,TWP)..(E,M)202401

87124FCLAMP, HEATER HOSE, NO.1

main16581-70060iZSG10..THP..(GEN,PH,TH,VN)202007-202402

87124GCLAMP, HEATER HOSE, NO.2

main87124-50060iZSG10..IDN202007-202212

8714

87245HOSE, HEATER WATER, INLET

main87209-12640iMXGA10202501

main87245-02Q50iZSG10..SAP202007-202411

main87245-02S10iZSG10..TWP202410

main87245-02S40iZVG10..TWP202010-202410

main87245-02T90iZVG10..BZP202201-202403

main87245-0A020iZSG10..E..MA202112-202410

main87245-0A030iZVG10..MA202112-202410

main87245-F4090iZVG10..E..PH;ZVG10..THP..(GEN,IDN,TH,VN)202007-202402

87246HOSE, HEATER WATER, OUTLET

main87209-12710iMXGA10202103-202112

main87245-02Q60iZSG10..SAP202007-202411

main87245-02S20iZSG10..TWP202410

main87245-02S50iZVG10..TWP202010-202410

main87245-02U00iZVG10..BZP202501

main87245-0A040iZVG10..MA202411

main87245-0A050iZSG10..E..MA202112-202410

main87245-F4100iZVG10..SA202007-202411

90466T0020

main90466-T0020

9613842501

main96138-42501

10 parts on this diagram · 3 diagrams in section
