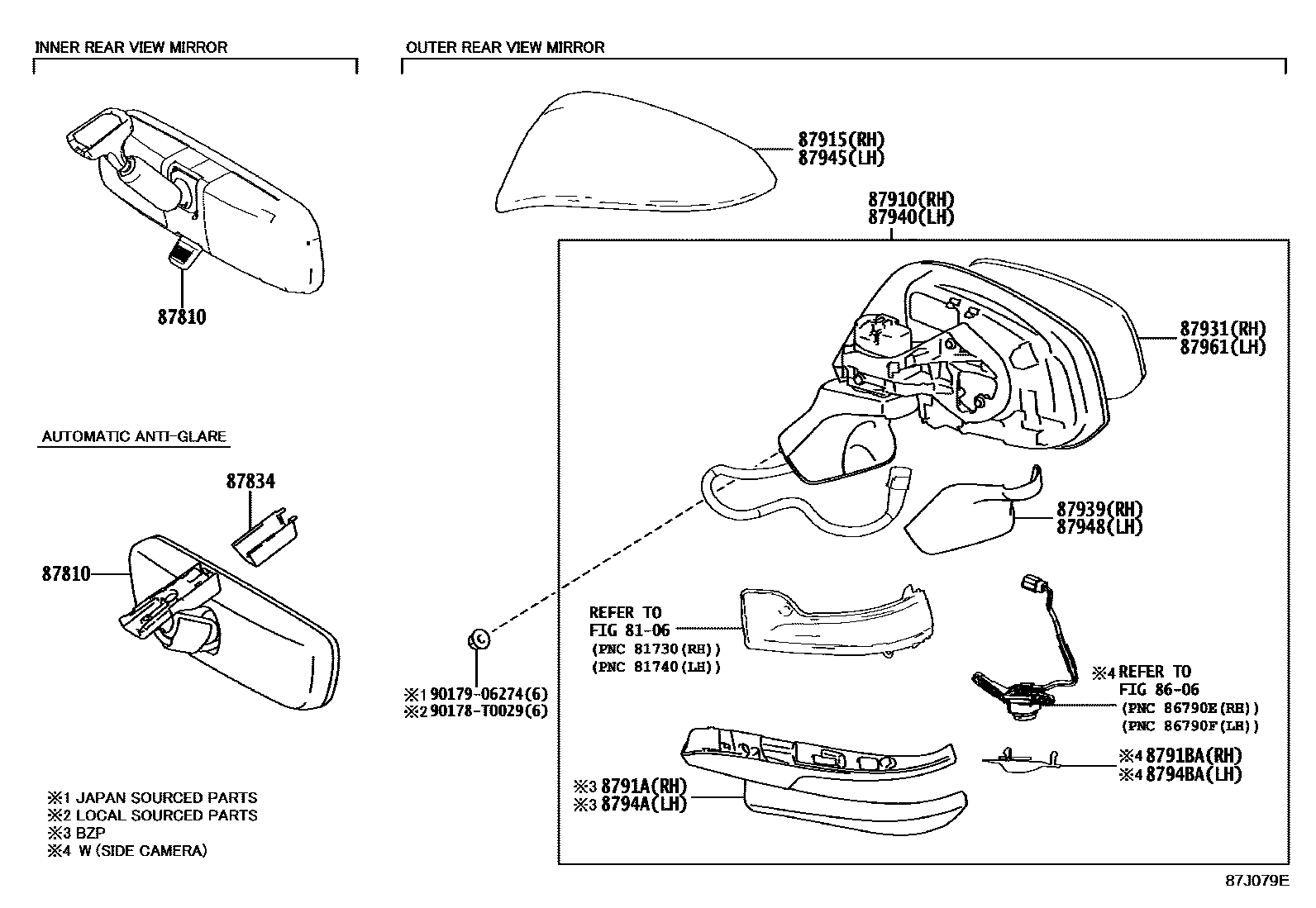

MIRROR
8106SIDE TURN SIGNAL LAMP & OUTER MIRROR LAMP
8606CAMERA & REAR MONITOR DISPLAY
87810MIRROR ASSY, INNER REAR VIEW
main87810-02260iZSG10..(G,N)..SA;ZVG10..(SAP,THP)..G;ZSG10..LHD..SAP..(G,N);ZSG10..RHD..E..(GEN,MA);ZSG10..RHD..THP..(G,N)..GEN202401
PARAGUAY SPEC; PARAGUAY SPEC&ACTIVE SAFETY PACKAGE-WITH
87834COVER, INNER REAR VIEW MIRROR STAY HOLDER
87910MIRROR ASSY, OUTER REAR VIEW, RH
NO PAINT REQ.
main87910-0A060iZSG10,ZVG10..E..(PH,VN); ZSG10,ZVG10..LHD..THP..E..GEN; ZSG10..LHD..E..GEN202007-202402
NO PAINT REQ.; NO PAINT REQ.,CAMBODIA SPEC&BLIND SPOT MONITOR-WITH; NO PAINT REQ.,LAOS SPEC&BLIND SPOT MONITOR-WITH; NO PAINT REQ.,MYANMAR SPEC&BLIND SPOT MONITOR-WITH
main87910-0A070iZSG10..N..SA;ZSG10..RHD..E..GEN;ZVG10..RHD..(E,G)..GEN;ZSG10..RHD..THP..(G,N)..GEN202401
NO PAINT REQ.
NO PAINT REQ.; NO PAINT REQ.,BLIND SPOT MONITOR-WITH
NO PAINT REQ.
NO PAINT REQ.; NO PAINT REQ.,BLIND SPOT MONITOR-WITH
NO PAINT REQ.
NO PAINT REQ.; NO PAINT REQ.,BLIND SPOT MONITOR-WITH
NO PAINT REQ.
NO PAINT REQ.
NO PAINT REQ.; NO PAINT REQ.,BLIND SPOT MONITOR-WITH
main87910-0A350iMXGA10..E..AGT; MXGA10..E..BZ; MXGA10..E..GEN;ZVG10..BZP..GEN; ZVG10..E..(AGT,BZ)202501
NO PAINT REQ.; NO PAINT REQ.,BACK MONITOR-WITH(*PVM)&BLIND SPOT MONITOR-WITH; NO PAINT REQ.,GR SPORT&BACK MONITOR-WITH(*PVM); NO PAINT REQ.,GR SPORT&BACK MONITOR-WITH(*PVM)&BLIND SPOT MONITOR-WITH; NO PAINT REQ.,UP GRADE PACKAGE&BACK MONITOR-WITH(*PVM); NO PAINT REQ.,UP GRADE PACKAGE&BACK MONITOR-WITH(*PVM)&BLIND SPOT MONITOR-WITH
main87910-YY010supersedes 87910-0A060iZSG10..E..VN; ZSG10..LHD..E..GEN;ZVG10..LHD..THP..(GEN,VN); ZVG10..E..PH202401-202601
NO PAINT REQ.; NO PAINT REQ.,GR SPORT; NO PAINT REQ.,GR SPORT&AUDIO-ACCESSORY DA(10INCH) & 6SPEAKER
NO PAINT REQ.
NO PAINT REQ.
NO PAINT REQ.,BAHRAIN SPEC&BLIND SPOT MONITOR-WITH; NO PAINT REQ.,IRAQ SPEC&BLIND SPOT MONITOR-WITH; NO PAINT REQ.,JORDAN SPEC&BLIND SPOT MONITOR-WITH; NO PAINT REQ.,KUWAIT SPEC&BLIND SPOT MONITOR-WITH; NO PAINT REQ.,LEBANON SPEC&BLIND SPOT MONITOR-WITH; NO PAINT REQ.,OMAN SPEC&BLIND SPOT MONITOR-WITH; NO PAINT REQ.,QATAR SPEC&BLIND SPOT MONITOR-WITH; NO PAINT REQ.,SAUDI ARABIA SPEC&BLIND SPOT MONITOR-WITH; NO PAINT REQ.,UAE SPEC&BLIND SPOT MONITOR-WITH
NO PAINT REQ.,BACK MONITOR-WITH(*PVM)
87915COVER, OUTER MIRROR, RH
PAINT REQ.
PAINT REQ.
PAINT REQ.
PAINT REQ.
PAINT REQ.
8791ACOVER, OUTER MIRROR, RH NO.2
8791BACOVER, OUTER MIRROR, RH NO.3
87931OUTER MIRROR, RH
LAOS SPEC&BLIND SPOT MONITOR-WITH
MOROCCO SPEC; NORTH AFRICA SPEC
BLIND SPOT MONITOR-WITH
BLIND SPOT MONITOR-WITH
main87931-0KC60iZVG10..G..PH;ZSG10..N..(SA,VN);ZSG10..RHD..E..GEN;ZVG10..RHD..(E,G)..GEN;ZSG10..LHD..SAP..(G,N);ZSG10..RHD..THP..(G,N)..GEN202401
BLIND SPOT MONITOR-WITHOUT
BAHRAIN SPEC&BLIND SPOT MONITOR-WITH; IRAQ SPEC&BLIND SPOT MONITOR-WITH; JORDAN SPEC&BLIND SPOT MONITOR-WITH; KUWAIT SPEC&BLIND SPOT MONITOR-WITH; LEBANON SPEC&BLIND SPOT MONITOR-WITH; OMAN SPEC&BLIND SPOT MONITOR-WITH; QATAR SPEC&BLIND SPOT MONITOR-WITH; SAUDI ARABIA SPEC&BLIND SPOT MONITOR-WITH; UAE SPEC&BLIND SPOT MONITOR-WITH
87939COVER, OUTER MIRROR HOLE, RH
87940MIRROR ASSY, OUTER REAR VIEW, LH
NO PAINT REQ.
main87940-0A050iZSG10,ZVG10..E..(PH,VN); ZSG10,ZVG10..LHD..THP..E..GEN; ZSG10..LHD..E..GEN202007-202402
NO PAINT REQ.; NO PAINT REQ.,CAMBODIA SPEC&BLIND SPOT MONITOR-WITH; NO PAINT REQ.,LAOS SPEC&BLIND SPOT MONITOR-WITH; NO PAINT REQ.,MYANMAR SPEC&BLIND SPOT MONITOR-WITH
NO PAINT REQ.
NO PAINT REQ.; NO PAINT REQ.,BLIND SPOT MONITOR-WITH
NO PAINT REQ.; NO PAINT REQ.,MOROCCO SPEC; NO PAINT REQ.,NORTH AFRICA SPEC
NO PAINT REQ.; NO PAINT REQ.,BLIND SPOT MONITOR-WITH
NO PAINT REQ.
NO PAINT REQ.; NO PAINT REQ.,CENTRAL AMERICA1&BLIND SPOT MONITOR-WITH; NO PAINT REQ.,CENTRAL AMERICA3 (FUEL LABEL : PREMIUM)&BLIND SPOT MONITOR-WITH; NO PAINT REQ.,CHILE SPEC&BLIND SPOT MONITOR-WITH; NO PAINT REQ.,COLOMBIA SPEC&BLIND SPOT MONITOR-WITH; NO PAINT REQ.,COSTA RICA SPEC&BLIND SPOT MONITOR-WITH; NO PAINT REQ.,ECUADOR SPEC&BLIND SPOT MONITOR-WITH; NO PAINT REQ.,PARAGUAY SPEC&BLIND SPOT MONITOR-WITH; NO PAINT REQ.,PERU SPEC&BLIND SPOT MONITOR-WITH; NO PAINT REQ.,UP GRADE PACKAGE&BLIND SPOT MONITOR-WITH
NO PAINT REQ.
NO PAINT REQ.
NO PAINT REQ.; NO PAINT REQ.,BLIND SPOT MONITOR-WITH
main87940-0A350iMXGA10..E..AGT; MXGA10..E..BZ; MXGA10..E..GEN;ZVG10..BZP..GEN; ZVG10..E..(AGT,BZ)202501
NO PAINT REQ.; NO PAINT REQ.,BACK MONITOR-WITH(*PVM)&BLIND SPOT MONITOR-WITH; NO PAINT REQ.,GR SPORT&BACK MONITOR-WITH(*PVM); NO PAINT REQ.,GR SPORT&BACK MONITOR-WITH(*PVM)&BLIND SPOT MONITOR-WITH; NO PAINT REQ.,UP GRADE PACKAGE&BACK MONITOR-WITH(*PVM); NO PAINT REQ.,UP GRADE PACKAGE&BACK MONITOR-WITH(*PVM)&BLIND SPOT MONITOR-WITH
main87940-YY010supersedes 87940-0A050iZSG10..E..VN; ZSG10..LHD..E..GEN;ZVG10..LHD..THP..(GEN,VN); ZVG10..E..PH202401-202601
NO PAINT REQ.; NO PAINT REQ.,GR SPORT; NO PAINT REQ.,GR SPORT&AUDIO-ACCESSORY DA(10INCH) & 6SPEAKER
NO PAINT REQ.
NO PAINT REQ.
NO PAINT REQ.,BAHRAIN SPEC&BLIND SPOT MONITOR-WITH; NO PAINT REQ.,IRAQ SPEC&BLIND SPOT MONITOR-WITH; NO PAINT REQ.,JORDAN SPEC&BLIND SPOT MONITOR-WITH; NO PAINT REQ.,KUWAIT SPEC&BLIND SPOT MONITOR-WITH; NO PAINT REQ.,LEBANON SPEC&BLIND SPOT MONITOR-WITH; NO PAINT REQ.,OMAN SPEC&BLIND SPOT MONITOR-WITH; NO PAINT REQ.,QATAR SPEC&BLIND SPOT MONITOR-WITH; NO PAINT REQ.,SAUDI ARABIA SPEC&BLIND SPOT MONITOR-WITH; NO PAINT REQ.,UAE SPEC&BLIND SPOT MONITOR-WITH
NO PAINT REQ.,BACK MONITOR-WITH(*PVM)
87945COVER, OUTER MIRROR, LH
PAINT REQ.
PAINT REQ.
PAINT REQ.
PAINT REQ.
PAINT REQ.
87948COVER, OUTER MIRROR HOLE, LH
8794ACOVER, OUTER MIRROR, LH NO.2
8794BACOVER, OUTER MIRROR, LH NO.3
87961MIRROR OUTER, LH
LAOS SPEC&BLIND SPOT MONITOR-WITH
BLIND SPOT MONITOR-WITH
BLIND SPOT MONITOR-WITH
BLIND SPOT MONITOR-WITH
BLIND SPOT MONITOR-WITHOUT
BAHRAIN SPEC&BLIND SPOT MONITOR-WITH; IRAQ SPEC&BLIND SPOT MONITOR-WITH; JORDAN SPEC&BLIND SPOT MONITOR-WITH; KUWAIT SPEC&BLIND SPOT MONITOR-WITH; LEBANON SPEC&BLIND SPOT MONITOR-WITH; OMAN SPEC&BLIND SPOT MONITOR-WITH; QATAR SPEC&BLIND SPOT MONITOR-WITH; SAUDI ARABIA SPEC&BLIND SPOT MONITOR-WITH; UAE SPEC&BLIND SPOT MONITOR-WITH
90178T0029
main90178-T0029
9017906274
main90179-06274
18 parts on this diagram · 1 diagram in section
