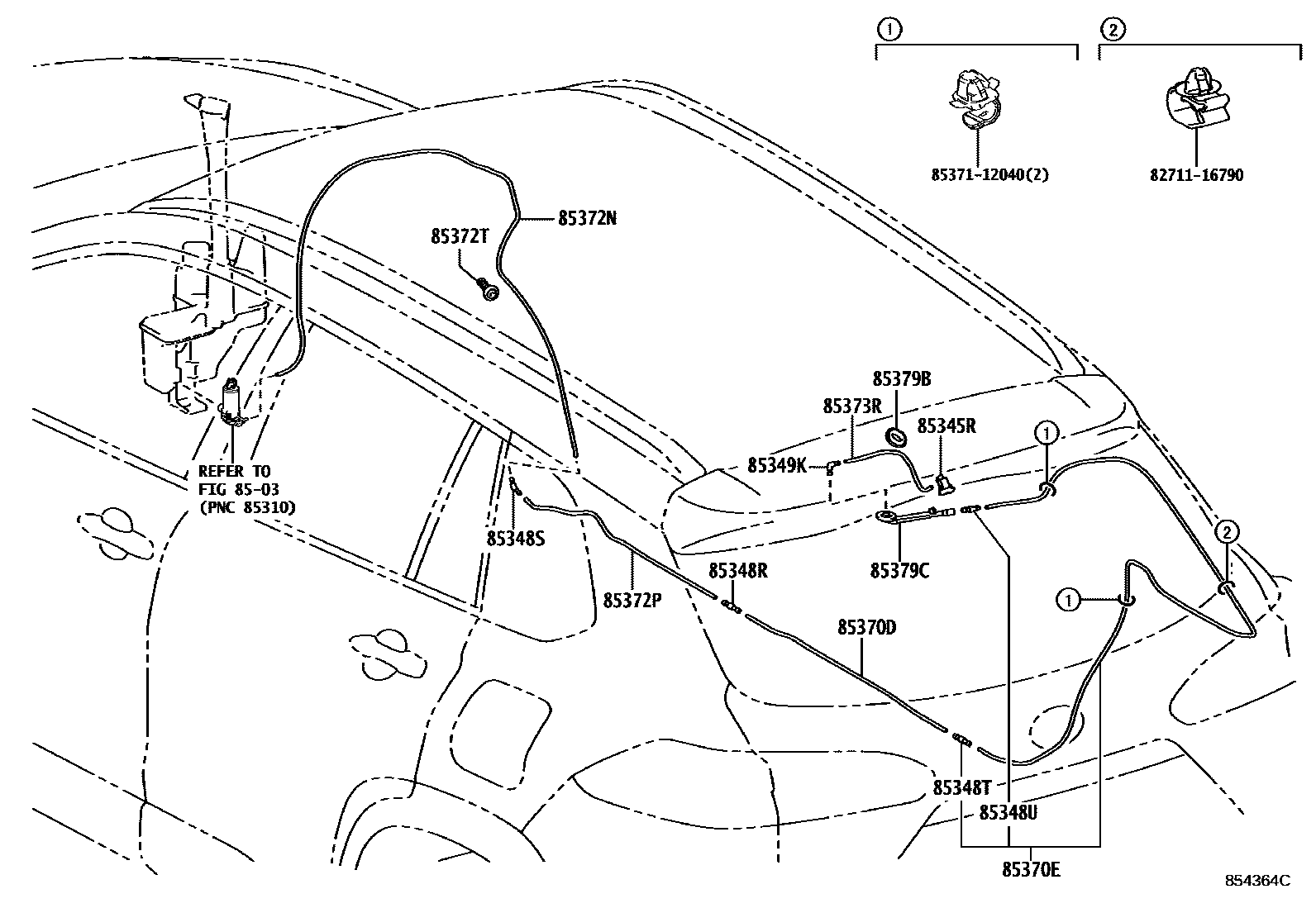

REAR WASHER

8503

85345RNOZZLE, REAR WASHER

main85391-0A010iZSG10..MAP..G;ZSG10,ZVG10..SAP202007-202512

85348RJOINT, REAR WASHER HOSE, NO.1

main85349-89122iZSG10,ZVG10..SAP202110-202411

main85375-02330iMXGA10,ZVG10..BZP202007-202512

85348SJOINT, REAR WASHER ELBOW, NO.1

main85355-20200iZSG10,ZVG10..SAP202110-202411

main85377-0D040iMXGA10,ZVG10..BZP202007-202512

85348TJOINT, REAR WASHER HOSE, NO.2

main85375-02330iZSG10..E,M;ZSG10..J..GCC;ZVG10..TWP..N;ZSG10..LHD..SAP..N;ZSG10..(G,N)..(SA,TAIW,VN);ZSG10..RHD..THP..(G,N)..GEN;ZSG10..LHD..(SAP,TWP)..G..(GCC,GEN);ZVG10..(MAP,SAP202007-202512

85348UJOINT, REAR WASHER HOSE, NO.3

main85375-02330iMXGA10,ZVG10..BZP202007-202512

85349KJOINT, REAR WASHER ELBOW, NO.2

main85355-20200iZSG10,ZVG10..SAP202110-202411

main85377-0D040iZSG10..IDN202007-202512

85370DHOSE ASSY, REAR WASHER, NO.1

main85370-0A170iZSG10,ZVG10..TWP202010-202410

main85370-0A290iZSG10,ZVG10..SAP202110-202411

main90068-33391iZSG10..LHD..E..GEN;ZSG10..RHD..THP..GEN;ZSG10..(E,N)..(MA,VN);ZVG10..(MAP,THP)..(E,G,R)202007-202512

85370EHOSE ASSY, REAR WASHER, NO.2

main85370-0A160iMXGA10,ZVG10..BZP202007-202512

85372NHOSE, REAR WASHER (FROM JOINT TO JOINT), NO.1

main90099-62225iZSG10..MAP..G;ZSG10,ZVG10..SAP202007-202512

L=1750

85372PHOSE, REAR WASHER (FROM JOINT TO JOINT), NO.2

main90068-33409iZSG10,ZVG10..TWP202010-202410

L=1400

main90099-33080iMXGA10,ZVG10..BZP202007-202512

L=1450(*H,L=660)

85372TGROMMET, WASHER

main85379-12850iZSG10..TWP..G;ZVG10..MAP,TWP;ZSG10..(MAP,TWP)..(E,J,M,N)202007-202512

85373RHOSE, REAR WASHER (FROM JOINT TO NOZZLE)

main90068-33355iZSG10,ZVG10..MA202007-202512

L=280

main90099-33080iZSG10,ZVG10..SAP202110-202411

L=1450(*H,L=280)

85379BGROMMET, WASHER, A

main85372-20020iZVG10..E..PH;ZSG10..THP..(GEN,PH,TH,VN);ZVG10..THP..(GEN,IDN,TH,VN)202007-202512

85379CGROMMET, REAR WASHER HOSE NO.1

main85372-20040iMXGA10,ZVG10..BZP202007-202512

8271116790WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-16790

8537112040HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)

main85371-12040

17 parts on this diagram · 1 diagram in section
