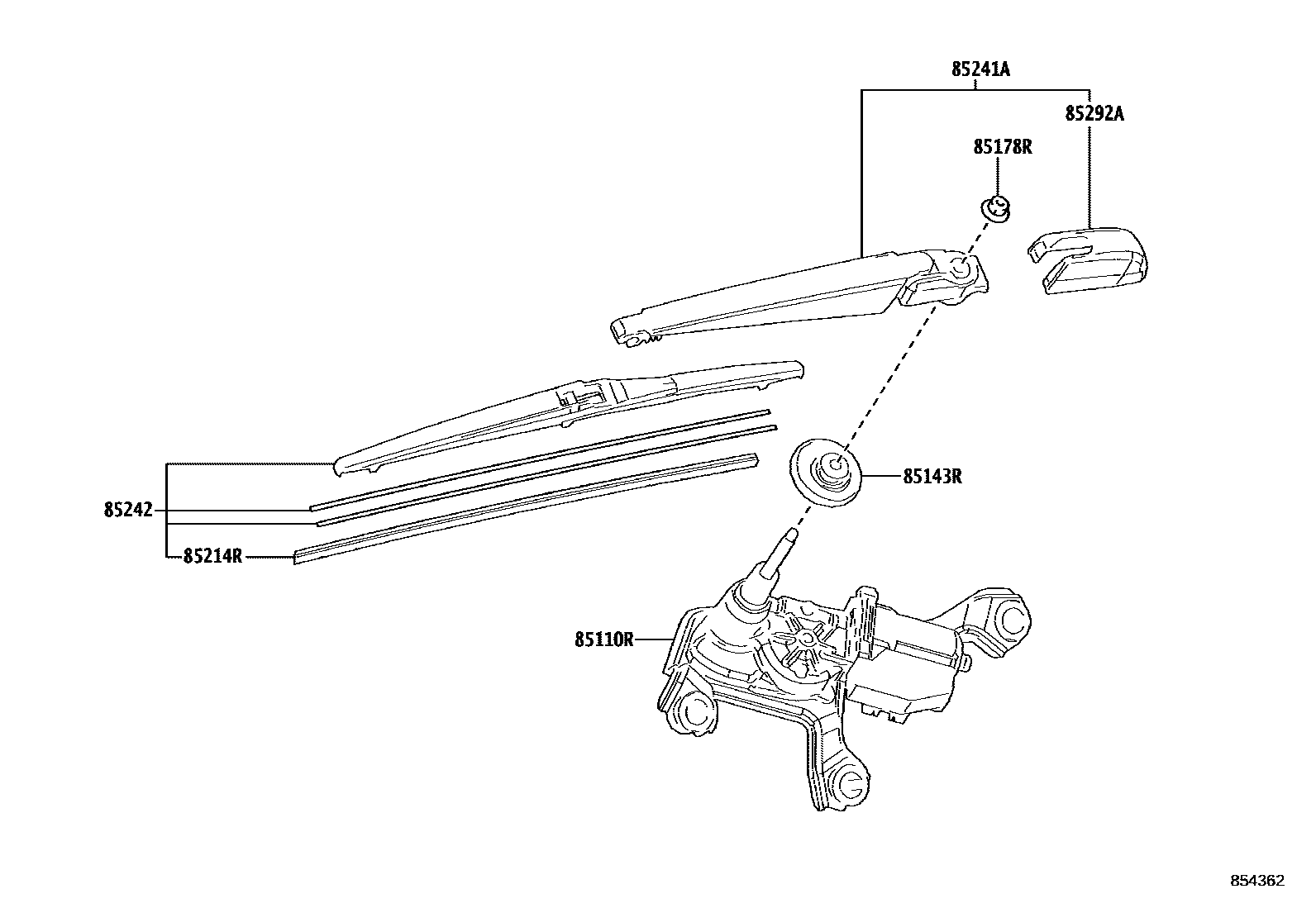

REAR WIPER

0001 1 0002 1

85110RMOTOR ASSY, REAR WIPER

main85130-0A010iZSG10..IDN202007-202512

main85130-0A030iMXGA10,ZVG10..BZP202103-202412

main85130-0A070iZSG10,ZVG10..SAP202110-202411

85143RGROMMET, REAR WIPER MOTOR

main85143-0A020iMXGA10,ZVG10..BZP202103-202412

main85143-28070iZVG10..E..PH;ZSG10..THP..(GEN,PH,TH,VN);ZVG10..THP..(GEN,IDN,TH,VN)202007-202512

85178RNUT (FOR REAR WIPER ARM SETTING)

main90179-06158iMXGA10,ZVG10..BZP202103-202412

main90182-T0005iZSG10..TWP..G;ZVG10..MAP,TWP;ZSG10..(MAP,TWP)..(E,J,M,N)202007-202512

85214RRUBBER, REAR WIPER

main85214-0A030iMXGA10,ZVG10..BZP202103-202412

main85214-0A120iZSG10..IDN202007-202512

85241AARM, REAR WIPER

main85241-0A030iMXGA10,ZVG10..BZP202103-202412

main85241-0K060iZSG10..TWP..G;ZVG10..MAP,TWP;ZSG10..(MAP,TWP)..(E,J,M,N)202007-202512

85242BLADE, RR WIPER

main85242-0A010iZSG10..TWP..G;ZVG10..MAP,TWP;ZSG10..(MAP,TWP)..(E,J,M,N)202007-202512

main85242-0A020iMXGA10,ZVG10..BZP202103-202412

85292ACAP, REAR WIPER ARM HEAD

main85244-0A010iMXGA10,ZVG10..BZP202103-202412

main85292-0K080iZVG10..E..PH;ZSG10..THP..(GEN,PH,TH,VN);ZVG10..THP..(GEN,IDN,TH,VN)202007-202512

7 parts on this diagram · 2 diagrams in section
