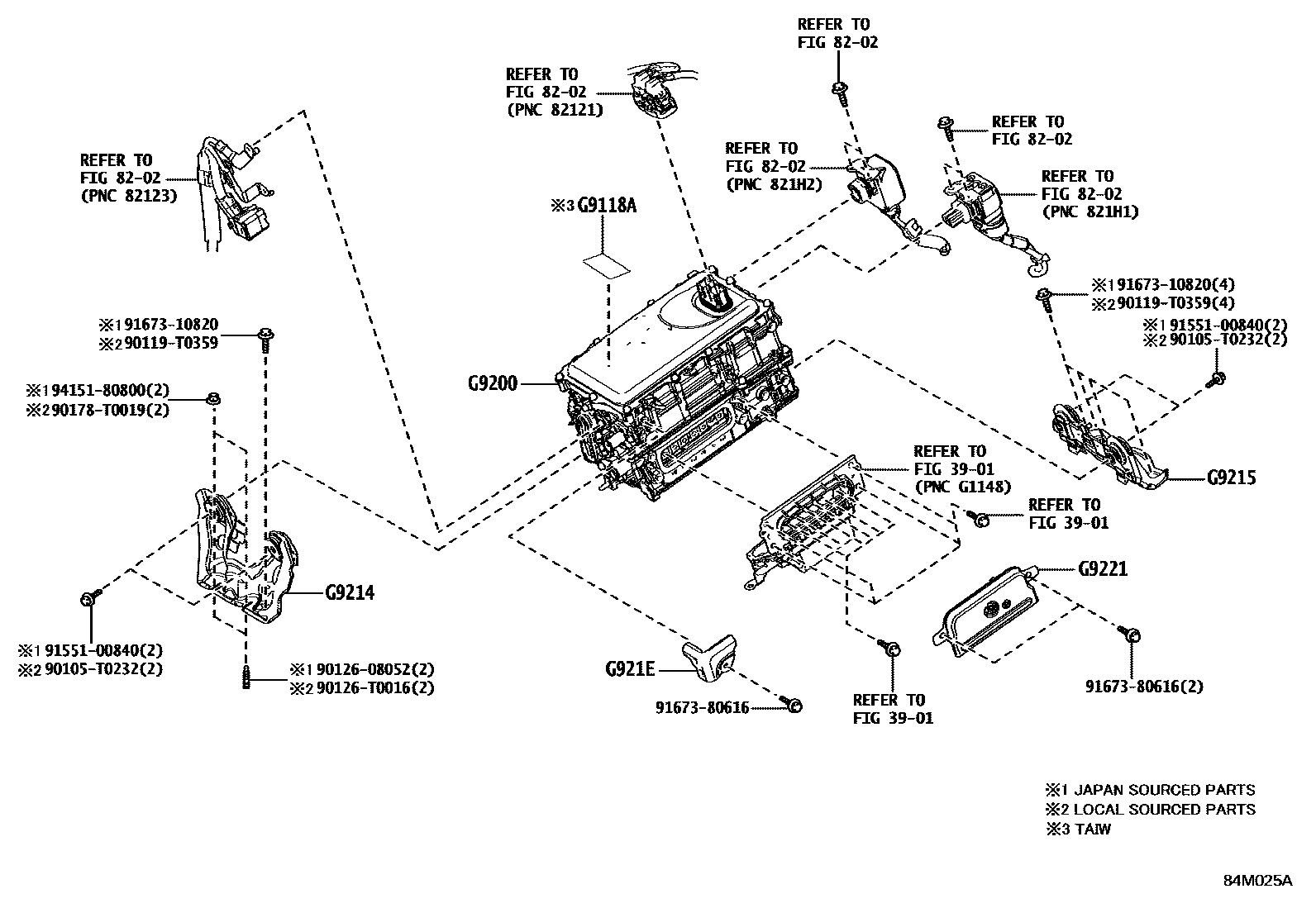

HEV INVERTER

0001 1 0002 1

3901TRANSAXLE ASSY(HEV OR BEV OR FCEV)

→ Go to FIG 39-01

8202WIRING & CLAMP

→ Go to FIG 82-02

G9118ALABEL, HV MOTOR CONTROL INVERTER CAUTION

mainG911833020iZVG10..TAIW202010-202410

G9200INVERTER ASSY, W/CONVERTER

mainG920049135iZVG10..THP202007-202105

mainG920049136iZVG10..MA202105-202402

mainG92A012041iZVG10..BZ202103-202104

PARAGUAY SPEC

mainG92A012042iZVG10..BZP..GEN202105-202412

PARAGUAY SPEC

mainG92A047100iZVG10..(BZP,TWP)..(AGT,GCC,GEN,TAIW)202010-202104

mainG92A047101iZVG10..MAP,TWP202105-202412

G9214BRACKET, INVERTER, NO.1

mainG921447070iZVG10..BZP202007-202412

G9215BRACKET, INVERTER, NO.2

mainG921547050iZVG10..BZP202007-202412

G921EPROTECTOR, INVERTER

mainG921E47010iZVG10..BZP202007-202412

G9221COVER, INVERTER

mainG902247050iZVG10..BZP202007-202412

90105T0232

main90105-T0232

90119T0359

main90119-T0359

9012608052

main90126-08052

90126T0016

main90126-T0016

90178T0019

main90178-T0019

9155100840

main91551-00840

9167310820

main91673-10820

9167380616

main91673-80616

9415180800

main94151-80800

17 parts on this diagram · 2 diagrams in section
