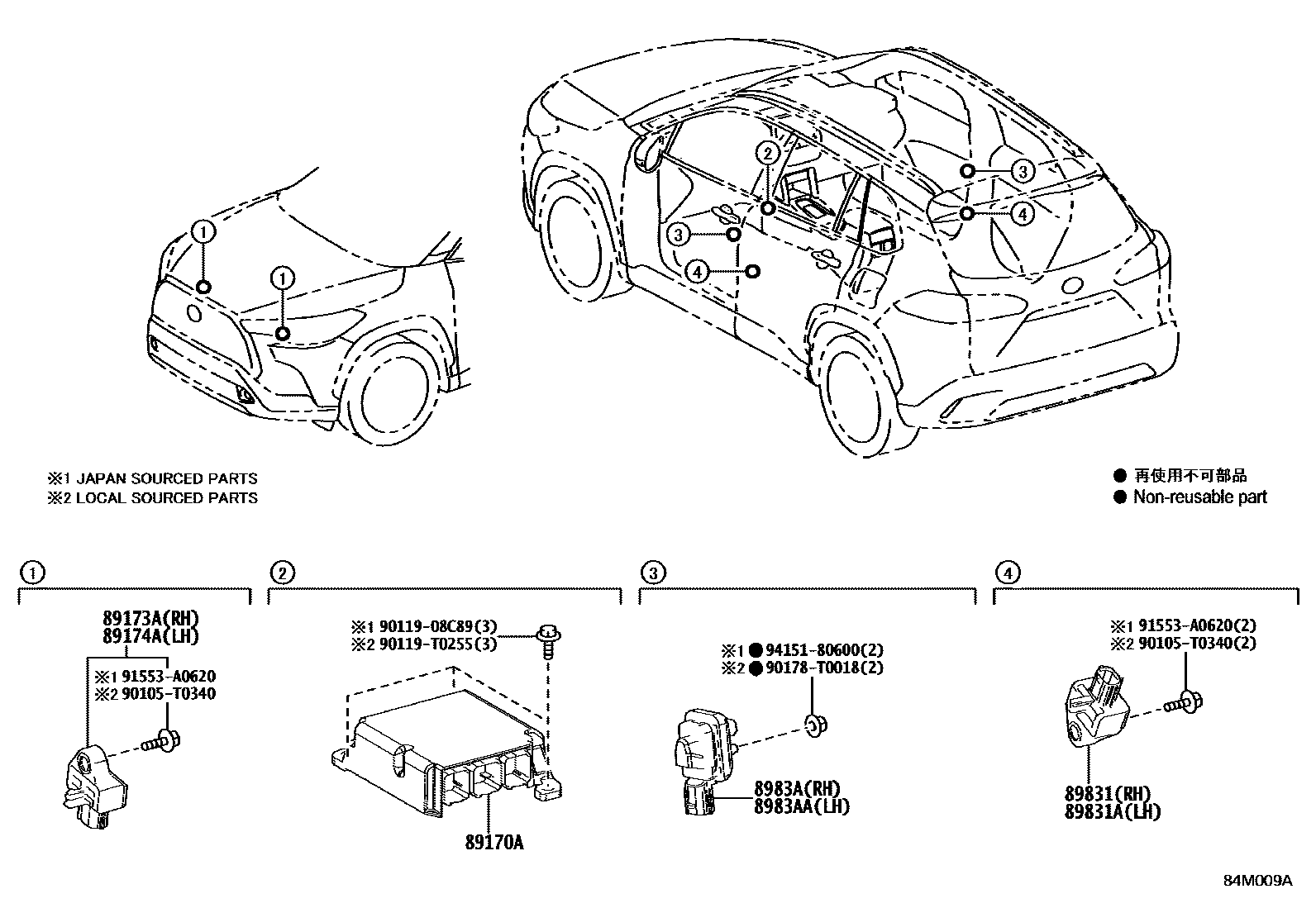

AIR BAG
89170ACOMPUTER ASSY, AIRBAG
main89170-0A020supersedes 89170-0A040iZSG10..LHD..THP..N;ZSG10..THP..(E,G)..(GEN,TH,VN); ZSG10..RHD..THP..N202007-202402
SRS AIR BAG-WITH(*DRP & SIDE & *CUSA & KNEE)
89173ASENSOR, AIRBAG, FRONT RH
main89173-09D00iZSG10..E;ZSG10..(G,N)..(SA,VN);ZSG10..LHD..SAP..(G,N);ZSG10..RHD..THP..(G,N)..GEN;ZVG10..(MAP,SAP,THP)..(E,G,R)202401
89174ASENSOR, AIRBAG, FRONT LH
89831SENSOR, SIDE AIRBAG, RH, NO.1
89831ASENSOR, SIDE AIRBAG, LH, NO.1
8983ASENSOR, SIDE AIRBAG PRESSURE, RH
main8983A-33010iZSG10..GCC;ZSG10..RHD..N;ZVG10..(E,N)..GCC;ZVG10..(THP,TWP)..G..(GCC,GEN); ZSG10..RHD..E..GEN; ZSG10..RHD..N;ZVG10..THP..G..GEN; ZVG10..IDN,MA,TH;ZVG10..RHD..E..GEN;ZSG10..LHD..N..(GEN,PH,TAIW,VN);ZSG10..(E,G,J)..(GEN,IDN,MA,TAIW,TH,VN);MXGA10,ZVG10..LHD..(AGT,BZ,GEN,PH,TAIW,VN)202007-202104
SRS AIR BAG-WITH(*DRP & SIDE & *CUSA & KNEE); SRS AIR BAG-WITH(*DRP)
main8983A-33011iZSG10..RHD..THP..N;ZVG10..THP..G..GEN; ZVG10..IDN,TH,VN;ZSG10..LHD..THP..N;ZVG10..THP..E..(GEN,PH);ZSG10..THP..(E,G)..(GEN,TH,VN)202105-202402
SRS AIR BAG-WITH(*DRP & SIDE & *CUSA & KNEE)
8983AASENSOR, SIDE AIRBAG PRESSURE, LH
main8983A-33010iZSG10..GCC;ZSG10..RHD..N;ZVG10..(E,N)..GCC;ZVG10..(THP,TWP)..G..(GCC,GEN); ZSG10..RHD..E..GEN; ZSG10..RHD..N;ZVG10..THP..G..GEN; ZVG10..IDN,MA,TH;ZVG10..RHD..E..GEN;ZSG10..LHD..N..(GEN,PH,TAIW,VN);ZSG10..(E,G,J)..(GEN,IDN,MA,TAIW,TH,VN);MXGA10,ZVG10..LHD..(AGT,BZ,GEN,PH,TAIW,VN)202007-202104
SRS AIR BAG-WITH(*DRP & SIDE & *CUSA & KNEE); SRS AIR BAG-WITH(*DRP)
90105T0340
main90105-T0340
9011908C89
main90119-08C89
90119T0255
main90119-T0255
90178T0018
main90178-T0018
91553A0620
main91553-A0620
9415180600
main94151-80600
13 parts on this diagram · 1 diagram in section
