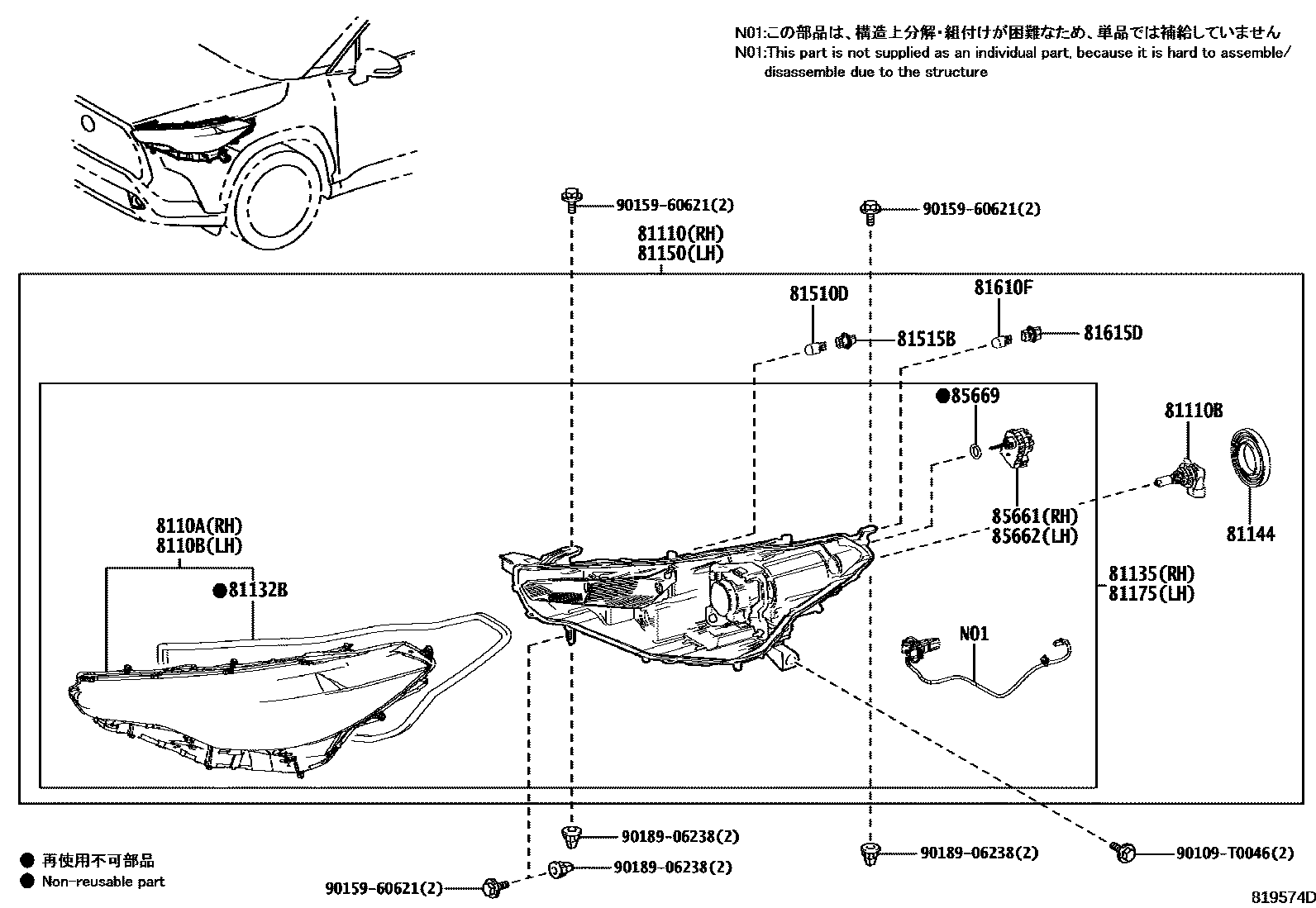

HEADLAMP
8110ALENS SUB-ASSY, HEADLAMP, RH
main8110A-0A390supersedes 8110A-0A070iZSG10,ZVG10..RHD..THP..E..GEN; ZSG10..LHD..E;ZSG10..LHD..SAP..G;ZVG10..G..(IDN,TH);ZSG10..(MAP,SAP)..E;ZVG10..LHD..THP..GEN;ZVG10..(E,L,R)..(MA,PH,SA,TAIW,TH,VN)202401
ACTIVE SAFETY PACKAGE-WITH
8110BLENS SUB-ASSY, HEADLAMP, LH
main8110B-0A070iZVG10..SA;ZSG10..SAP..E;ZSG10..LHD..SAP..G;ZSG10..(MAP,SAP)..G..(MA,SA)202007-202411
HEADLAMP-LED(SEQUENTIAL) & *AHB; RADIATOR GRILLE-PAINTING
81110HEADLAMP ASSY, RH
main81110-0A390supersedes 81110-0A070iZSG10,ZVG10..RHD..THP..E..GEN; ZSG10..SAP..E;ZVG10..E..(SA,TH);ZVG10..G..(IDN,TH)202401
ACTIVE SAFETY PACKAGE-WITH
HEADLAMP-LED(SEQUENTIAL) & *AHB; RADIATOR GRILLE-PAINTING
81110BBULB(FOR HEADLAMP, NO.1)
12V 55W,HALOGEN
81132BGASKET, HEADLAMP LENS
HEADLAMP-LED(SEQUENTIAL) & *AHB; RADIATOR GRILLE-PAINTING
81135UNIT ASSY, HEADLAMP, RH
main81105-0A390supersedes 81130-0A040iZSG10,ZVG10..RHD..THP..E..GEN; ZSG10..SAP..E;ZVG10..E..(SA,TH);ZVG10..G..(IDN,TH)202401
ACTIVE SAFETY PACKAGE-WITH
HEADLAMP-LED(SEQUENTIAL) & *AHB; RADIATOR GRILLE-PAINTING
81144COVER, HEADLAMP, NO.1
81150HEADLAMP ASSY, LH
main81150-0A390supersedes 81150-0A070iZSG10,ZVG10..RHD..THP..E..GEN; ZSG10..SAP..E;ZVG10..E..(SA,TH);ZVG10..G..(IDN,TH)202401
ACTIVE SAFETY PACKAGE-WITH
81175UNIT ASSY, HEADLAMP, LH
main81106-0A390supersedes 81170-0A040iZSG10,ZVG10..RHD..THP..E..GEN; ZSG10..SAP..E;ZVG10..E..(SA,TH);ZVG10..G..(IDN,TH)202401
ACTIVE SAFETY PACKAGE-WITH
HEADLAMP-LED(SEQUENTIAL) & *AHB; RADIATOR GRILLE-PAINTING
81510DBULB (FOR FRONT TURN SIGNAL LAMP)
12V 21W,AMBER
81515BSOCKET, FRONT TURN SIGNAL LAMP
81610FBULB(FOR CLEARANCE LAMP)
12V 21/5W
81615DSOCKET, CLEARANCE LAMP
85661MOTOR, HEADLAMP LEVELING, RH
HEADLAMP-LED(SEQUENTIAL) & *AHB; RADIATOR GRILLE-PAINTING
85662MOTOR, HEADLAMP LEVELING, LH
HEADLAMP-LED(SEQUENTIAL) & *AHB; RADIATOR GRILLE-PAINTING
main85661-0D020iZSG10..LHD..SAP..N;ZVG10..RHD..E..GEN;ZSG10..RHD..THP..GEN;ZSG10..(G,N)..(SA,VN);ZVG10..(SAP,THP)..G..(GEN,PH,SA)202401
85669PACKING, HEADLAMP LEVELING MOTOR BASE
90109T0046
main90109-T0046
9015960621
main90159-60621
9018906238
main90189-06238
19 parts on this diagram · 8 diagrams in section
