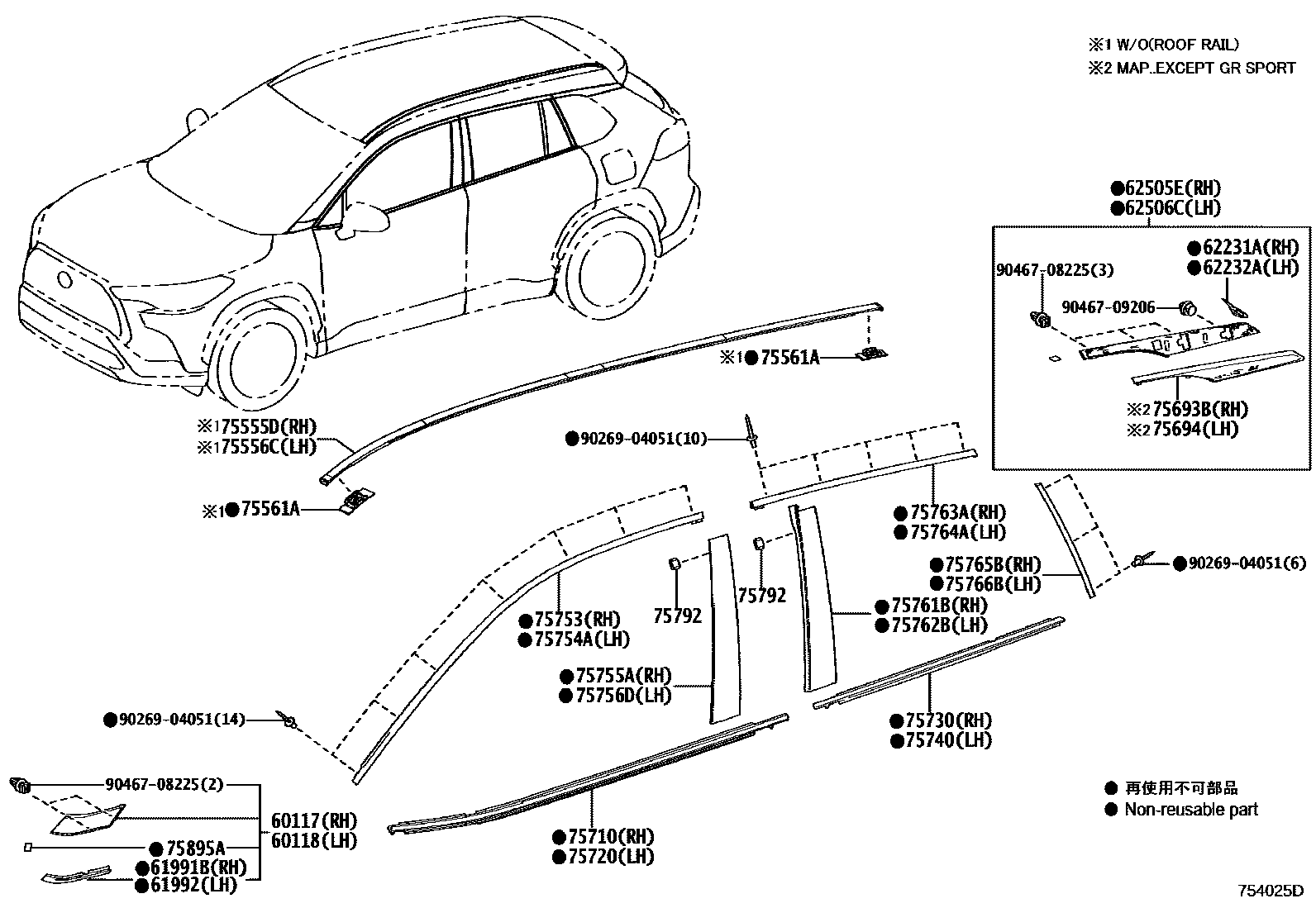

SIDE MOULDING
60117COVER SUB-ASSY, FRONT PILLAR, UPR RH
60118COVER SUB-ASSY, FRONT PILLAR, UPR LH
61991BPROTECTOR, FRONT PILLAR COVER, RH
61992PROTECTOR, FRONT PILLAR COVER, LH
62231APAD, QUARTER PILLAR, RH
main62523-0A010supersedes 62523-0A020iZSG10..LHD..SAP..G;ZVG10..E..(AGT,PH,SA);ZSG10..RHD..THP..G..GEN;MXGA10,ZSG10..E..(GEN,SA,VN);ZVG10..(E,G)..(BZ,GEN,IDN,TH,VN)202401
GR SPORT
62232APAD, QUARTER PILLAR, LH
main62524-0A010supersedes 62524-0A020iZSG10..LHD..SAP..G;ZVG10..E..(AGT,PH,SA);ZSG10..RHD..THP..G..GEN;MXGA10,ZSG10..E..(GEN,SA,VN);ZVG10..(E,G)..(BZ,GEN,IDN,TH,VN)202401
GR SPORT
GR SPORT
62505ECOVER SUB-ASSY, QUARTER PILLAR, RH
NO PAINT REQ.
NO PAINT REQ.
NO PAINT REQ.
NO PAINT REQ.
NO PAINT REQ.; NO PAINT REQ.,UP GRADE PACKAGE
NO PAINT REQ.; NO PAINT REQ.,GR SPORT
NO PAINT REQ.; NO PAINT REQ.,GR SPORT
NO PAINT REQ.
62506CCOVER SUB-ASSY, QUARTER PILLAR, LH
NO PAINT REQ.
NO PAINT REQ.
NO PAINT REQ.
NO PAINT REQ.
NO PAINT REQ.; NO PAINT REQ.,UP GRADE PACKAGE
NO PAINT REQ.; NO PAINT REQ.,GR SPORT
main62506-0A140iZSG10..SAP..G..GEN;ZSG10,ZVG10..SAP..E; ZSG10..SAP..N..GEN;ZSG10,ZVG10..(G,N)..SA202411
NO PAINT REQ.; NO PAINT REQ.,GR SPORT
NO PAINT REQ.
75555DMOULDING, ROOF DRIP SIDE FINISH, CENTER RH
main75555-0A020iZSG10..N..(SA,VN);ZSG10..LHD..SAP..(J,N);ZSG10..LHD..THP..(G,N)..GEN;ZSG10,ZVG10..THP..(E,N)..(MA,PH);ZSG10,ZVG10..RHD..(SAP,THP)..(G,J,N)..(GEN,IDN,MA,TH)202007-202411
main75555-0A030iZSG10..G..GCC; ZSG10..J..GCC;ZVG10..E..TAIW;ZVG10..TWP..(G,N);ZSG10..(G,N)..TAIW; ZVG10..G..GCC202410
ROOF RAIL-WITH(BLACK)&MOON ROOF-WITH; ROOF RAIL-WITHOUT; UP GRADE PACKAGE&ROOF RAIL-WITH(SILVER)&MOON ROOF-WITH
75556CMOULDING, ROOF DRIP SIDE FINISH, CENTER LH
main75556-0A020iZSG10..N..(SA,VN);ZSG10..LHD..SAP..(J,N);ZSG10..LHD..THP..(G,N)..GEN;ZSG10,ZVG10..THP..(E,N)..(MA,PH);ZSG10,ZVG10..RHD..(SAP,THP)..(G,J,N)..(GEN,IDN,MA,TH)202007-202411
main75556-0A030iZSG10..(J,N)..GCC;ZVG10..(G,N)..GCC;ZSG10..(G,J,N)..TAIW; ZSG10..G..GCC;ZSG10,ZVG10..L,M; ZSG10..N..GCC;ZVG10..G..GCC; ZVG10..G..GCC; ZVG10..N..GCC202010-202410
ROOF RAIL-WITH(BLACK); ROOF RAIL-WITH(SILVER); ROOF RAIL-WITHOUT; UP GRADE PACKAGE&ROOF RAIL-WITH(SILVER)
75561ACLIP, ROOF DRIP SIDE FINISH MOULDING
main75561-0A050iZVG10..L,M;ZVG10..THP..E..(MA,PH);ZSG10..(THP,TWP)..(E,J,N)..(GCC,MA);ZVG10..(THP,TWP)..(G,N)..(GCC,GEN,IDN,TH);ZSG10..(THP,TWP)..(G,J,M,N)..(GEN,MA,PH,TAIW,TH,VN)202007-202410
75693BRETAINER, QUARTER BELT REAR MOULDING, NO.1
75694RETAINER, QUARTER BELT REAR MOULDING, NO.2
75710MOULDING ASSY, FRONT DOOR BELT, RH
75720MOULDING ASSY, FRONT DOOR BELT, LH
75730MOULDING ASSY, REAR DOOR BELT, RH
75740MOULDING ASSY, REAR DOOR BELT, LH
75753MOULDING, FRONT DOOR WINDOW FRAME, UPPER RH
main75753-0A010iZSG10..RHD..THP..N;ZSG10..LHD..SAP..N;ZSG10..(G,N)..(SA,TH,VN);ZVG10..(G,R)..(MA,PH,SA)202401
NO PAINT REQ.
NO PAINT REQ.
NO PAINT REQ.
NO PAINT REQ.
NO PAINT REQ.; NO PAINT REQ.,GR SPORT
NO PAINT REQ.; NO PAINT REQ.,UP GRADE PACKAGE
75754AMOULDING, FRONT DOOR WINDOW FRAME, UPPER LH
NO PAINT REQ.
main75754-0A020iZSG10..LHD..SAP..G;ZVG10..RHD..THP..G;ZSG10..RHD..THP..G..GEN;ZSG10,ZVG10..(MAP,SAP,THP)..E202401
NO PAINT REQ.
NO PAINT REQ.
NO PAINT REQ.
NO PAINT REQ.
NO PAINT REQ.; NO PAINT REQ.,UP GRADE PACKAGE
75755AMOULDING, FRONT DOOR WINDOW FRAME, RH(CENTER PILLAR SIDE)
75756DMOULDING, FRONT DOOR WINDOW FRAME, LH(CENTER PILLAR SIDE)
main75756-0A010iZSG10..E;ZSG10..(G,N)..(SA,VN);ZSG10..LHD..SAP..(G,N);ZSG10..RHD..THP..(G,N)..GEN;ZVG10..(MAP,SAP,THP)..(E,G,R)202401
75761BMOULDING, REAR DOOR WINDOW FRAME, RH(CENTER PILLAR SIDE)
75762BMOULDING, REAR DOOR WINDOW FRAME, LH(CENTER PILLAR SIDE)
75763AMOULDING, REAR DOOR WINDOW FRAME, UPPER RH
main75763-0A020iZSG10..LHD..SAP..G;ZVG10..RHD..THP..G;ZSG10..RHD..THP..G..GEN;ZSG10,ZVG10..(MAP,SAP,THP)..E202401
GR SPORT
UP GRADE PACKAGE
75764AMOULDING, REAR DOOR WINDOW FRAME, UPPER LH
main75764-0A010iZSG10..RHD..THP..N;ZSG10..LHD..SAP..N;ZSG10..(G,N)..(SA,TH,VN);ZVG10..(G,R)..(MA,PH,SA)202401
UP GRADE PACKAGE
75765BMOULDING, REAR DOOR WINDOW FRAME, RH(REAR PILLAR SIDE)
75766BMOULDING, REAR DOOR WINDOW FRAME, LH(REAR PILLAR SIDE)
main75766-0A010iZSG10..LHD..E;ZSG10..RHD..THP;ZSG10..(MAP,SAP)..E;ZSG10..(G,N)..(SA,VN);ZSG10..LHD..SAP..(G,N);ZVG10..(MAP,SAP,THP)..(E,G,R)202401
75792CLIP, DOOR WINDOW FRAME MOULDING
main75792-0D020×4iZSG10..E,M;ZSG10..J..GCC;ZVG10..TWP..N;ZSG10..LHD..SAP..N;ZSG10..(G,N)..(SA,TAIW,VN);ZSG10..RHD..THP..(G,N)..GEN;ZSG10..LHD..(SAP,TWP)..G..(GCC,GEN);ZVG10..(MAP,SAP,THP,TWP)..(E,G,L,M,R)202401
75895ATAPE, MOULDING, NO.1
9026904051
main90269-04051
9046708225
main90467-08225
9046709206
main90467-09206
32 parts on this diagram · 5 diagrams in section
