CAUTION PLATE (EXTERIOR & INTERIOR)

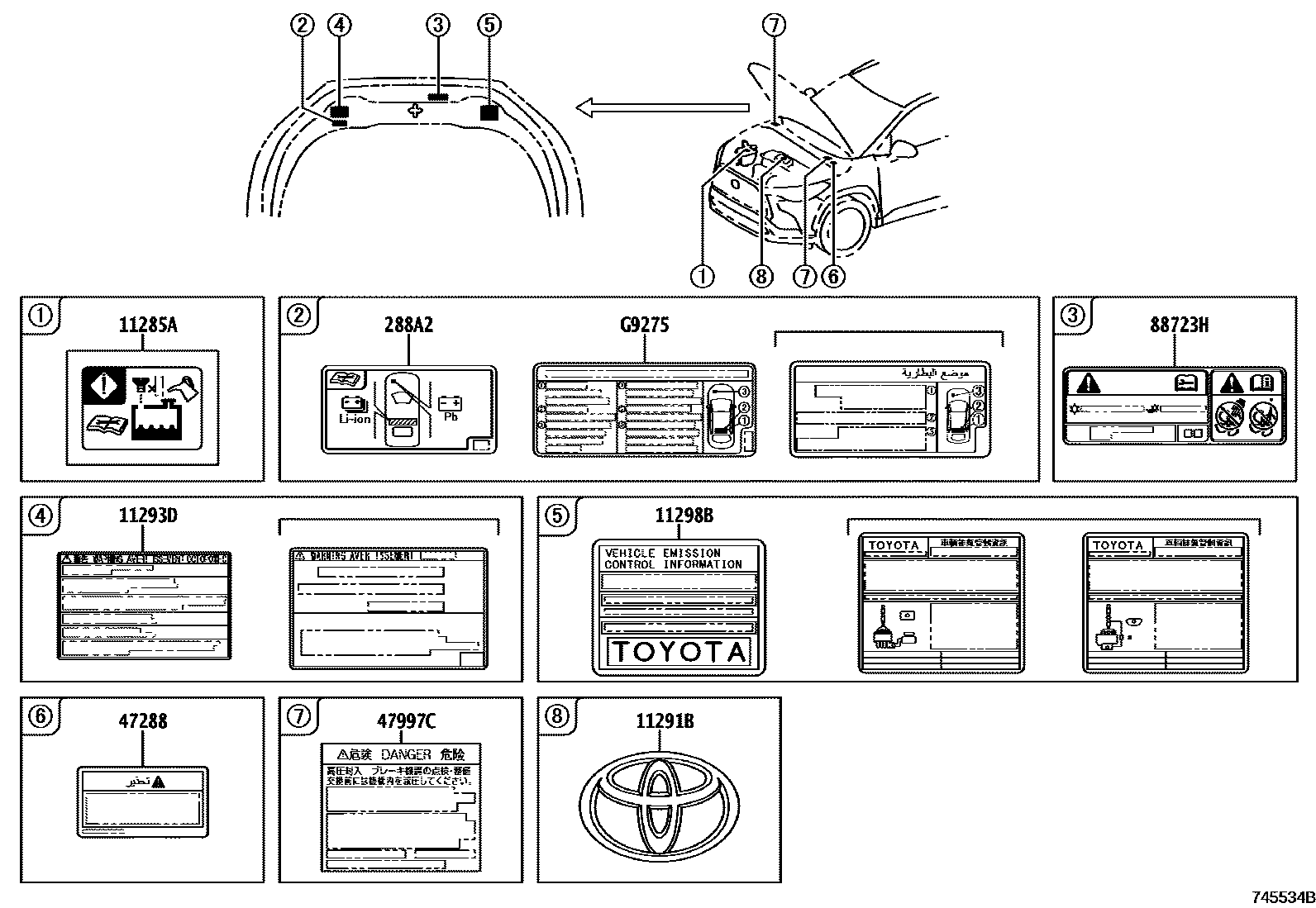

Parts diagram

11285ALABEL, COOLANT SYSTEM NOTICE

main11285-0E030i202007-202111

main11285-0E040i202411

main11285-0T060i202401-202404

main11285-0T080i202110-202404

main11285-0T090i202112-202410

main11285-0T100i202112-202404

main11285-11020i202201-202403

main11285-11030i202010-202410

11291BPLATE, ENGINE NAME

main11291-37100i202007-202111

main11291-37130i202401

11293DLABEL, ENGINE CAUTION

main11293-0T010i202110-202411

(L)

main11293-36070supersedes 11293-37060i202007-202111

11298BLABEL, EMISSION CONTROL INFORMATION

main11298-0T330i202205-202410

main11298-0T490i202007-202402

main11298-0T600i202108-202205

main11298-0T610i202007-202402

main11298-0T620i202010-202108

main11298-0T640i202010-202108

main11298-0T770i202108-202205

main11298-0T800i202205-202410

main11298-0T830i202410

main11298-0T840i202410

288A2LABEL, BATTERY LOCATION

main288A2-37020i202411

47288LABEL, BRAKE FLUID NOTICE

main47288-71010i202410

47997CLABEL, ACCUMULATOR CAUTION, NO.1

main47997-76010i202007-202112

88723HLABEL, COOLER SERVICE CAUTION

main88723-0A060i202007-202410

main88723-0A070i202401

main88723-0A100i202103-202112

main88723-0A110i202103-202112

main88723-0A180i202110-202411

main88723-0A190i202110-202411

main88723-0A200i202112-202410

main88723-0A210i202411

G9275LABEL, BATTERY CAUTION, NO.1

mainG927512040i202010-202410

mainG927547110supersedes G927547200i202402

9 parts on this diagram · 3 diagrams in section
