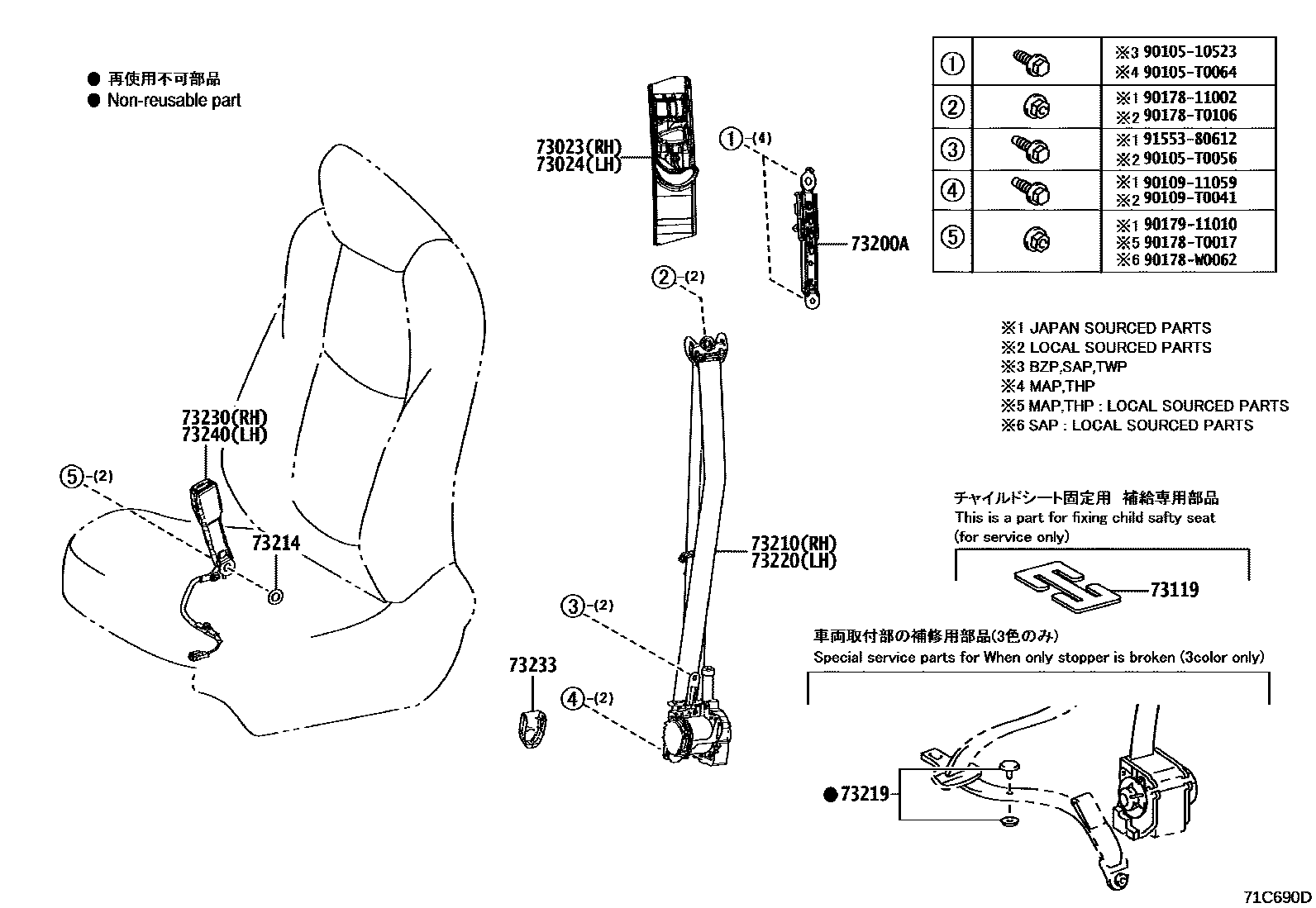

SEAT BELT & CHILD RESTRAINT SEAT

0001 1FRONT SEAT 0002 1REAR SEAT

73023PLATE SUB-ASSY, FRONT SHOULDER BELT ANCHOR, RH

main73023-02120-C0iZVG10..E..PH;ZSG10..LHD..E..GEN;ZSG10..(E,N)..(MA,VN);ZSG10..RHD..THP..(E,G)..GEN;ZVG10..(MAP,THP)..(E,G)..(GEN,IDN,MA,TH,VN)202401

BLACK,TRIM2#,3#

main73023-02130-C0iZSG10,ZVG10..TWP..(E,G,J,N)202410

BLACK,TRIM2#,3#

main73023-02140-C0iMXGA10..E;ZVG10..E..AGT;ZVG10..BZP..(BZ,GEN)202501

BLACK,TRIM0#,2#

main73023-0A010-C0iZSG10..SAP..(J,N)202110-202411

BLACK,TRIM2#,3#

73024PLATE SUB-ASSY, FRONT SHOULDER BELT ANCHOR, LH

main73024-02120-C0iZVG10..E..PH;ZSG10..THP..(GEN,PH,TH,VN);ZVG10..THP..(GEN,IDN,TH,VN)202007-202402

BLACK,TRIM2#,3#

main73024-02130-C0iZSG10,ZVG10..TWP..(E,G,J,N)202410

BLACK,TRIM2#,3#

main73024-02140-C0iMXGA10..E;ZVG10..E..AGT;ZVG10..BZP..(BZ,GEN)202103-202112

BLACK,TRIM0#,2#

main73024-0A010-C0iZSG10..SAP..N202411

BLACK,TRIM2#,3#

73119PLATE, SEAT BELT WEBBING CLIP

main73119-22010iMXGA10,ZVG10..BZP202501

73200AADJUSTER ASSY, FRONT SHOULDER BELT ANCHOR

main73200-02130×2iZSG10,ZVG10..TWP202010-202410

main73200-02140×2iZSG10..LHD..E..GEN;ZSG10..RHD..THP..GEN;ZSG10..(E,N)..(MA,VN);ZVG10..(MAP,THP)..(E,G,R)202401

main73200-12070×2iZSG10,ZVG10..SAP202411

(J)

73210BELT ASSY, FRONT SEAT OUTER, RH

main73210-02751-C1iZSG10,ZVG10..TWP..(E,G,J,N)202410

BLACK,TRIM2#,3#

main73210-02780-C2iZVG10..IDN;ZVG10..E..(SA,TH);ZSG10..(MAP,SAP)..E202401-202602

BLACK,TRIM2#,3#

main73210-06450-C4iMXGA10..E;ZVG10..E..AGT;ZVG10..BZP..(BZ,GEN)202103-202112

BLACK,TRIM0#,2#

main73210-0A050-C0iZSG10..LHD..SAP..(J,N)202110-202411

BLACK,TRIM2#,3#

main73210-0A060-C0iZSG10..RHD..SAP..(J,N)202110-202411

BLACK,TRIM2#,3#

73214PLATE, FRONT SEAT BELT ANCHOR

main73214-0K010iZSG10..LHD..E..GEN;ZSG10..RHD..THP..GEN;ZSG10..(E,N)..(MA,VN);ZVG10..(MAP,THP)..(E,G,R)202401

main73214-75010iMXGA10..E..(AGT,BZ)202201-202403

GR SPORT

73219STOPPER, TONGUE PLATE

main73219-33010iMXGA10,ZVG10..BZP202201-202403

BLACK

main73219-33020iMXGA10,ZVG10..BZP202501

GRAY

main73219-33030iZSG10..IDN202007-202212

BEIGE

73220BELT ASSY, FRONT SEAT OUTER, LH

main73220-02700-C2iZSG10,ZVG10..VN;ZSG10..LHD..E..GEN202401

BLACK,TRIM2#,3#

main73220-02711-C0iZSG10,ZVG10..TWP..(E,G,J,N)202410

BLACK,TRIM2#,3#

main73220-06420-C4iZVG10..IDN;ZVG10..E..(SA,TH);ZSG10..LHD..SAP..G;ZSG10..(MAP,SAP)..E202401-202602

BLACK,TRIM2#,3#

main73220-0A050-C0iZSG10..SAP..(J,N)202110-202411

BLACK,TRIM2#,3#

73230BELT ASSY, FRONT SEAT INNER, RH

main73230-0A060-C0iZSG10,ZVG10..G..SA;ZSG10..RHD..THP..G..GEN202401

BLACK,TRIM2#,3#

main73230-0A070-C0iZSG10,ZVG10..MA202007-202111

BLACK,TRIM2#,3#

main73230-0A080-C0iMXGA10..E..AGT202201-202403

BLACK,TRIM0#,2#

main73230-0A110-C0iZVG10..E..TAIW;ZVG10..TWP..(G,N);ZSG10..(J,N)..GCC;ZSG10..(G,J,N)..TAIW202010-202410

BLACK,TRIM2#,3#

main73230-0A210-C0iZSG10,ZVG10..RHD..SAP..G202110-202411

BLACK,TRIM2#,3#

main73230-0A220-C0iZSG10..LHD..SAP..(J,N)202110-202411

BLACK,TRIM2#,3#

main73230-0A230-C0iZSG10,ZVG10..SAP..E202110-202411

BLACK,TRIM2#,3#

73233COVER, LAP BELT OUTER ANCHOR

main73233-60020-C1×2iZSG10..IDN202007-202212

BLACK,TRIM2#,3#

sub73233-35010

73240BELT ASSY, FRONT SEAT INNER, LH

main73230-0A060-C0iMXGA10..G,N;ZVG10..G..AGT;MXGA10..E..AGT202501

BLACK,TRIM0#,2#

main73230-0A070-C0iMXGA10..E..(AGT,BZ)202201-202403

FRONT SEAT SLIDE-*DRS:POWER SEAT & *PAS:MANUAL SEAT,BLACK,TRIM0#,2#

main73230-0A080-C0iZSG10..G..SA;ZSG10..RHD..E;ZVG10..RHD..(E,G);ZSG10..RHD..THP..G..GEN202401

BLACK,TRIM2#,3#

main73230-0A090-C0iZSG10..(J,N)..GCC;ZVG10..TWP..(G,N);ZSG10..(G,J,N)..TAIW202010-202410

BLACK,TRIM2#,3#

main73230-0A100-C0iZVG10..E..GCC202412

BLACK,TRIM2#,3#

main73230-0A210-C0iZSG10..LHD..SAP..G202110-202411

BLACK,TRIM2#,3#

main73230-0A220-C0iZSG10..RHD..SAP..(J,N)202110-202411

BLACK,TRIM2#,3#

9010510523

main90105-10523

90105T0056

main90105-T0056

90105T0064

main90105-T0064

9010911059

main90109-11059

90109T0041

main90109-T0041

9017811002

main90178-11002

90178T0017

main90178-T0017

90178T0106

main90178-T0106

90178W0062

main90178-W0062

9017911010

main90179-11010

9155380612

main91553-80612

22 parts on this diagram · 2 diagrams in section
