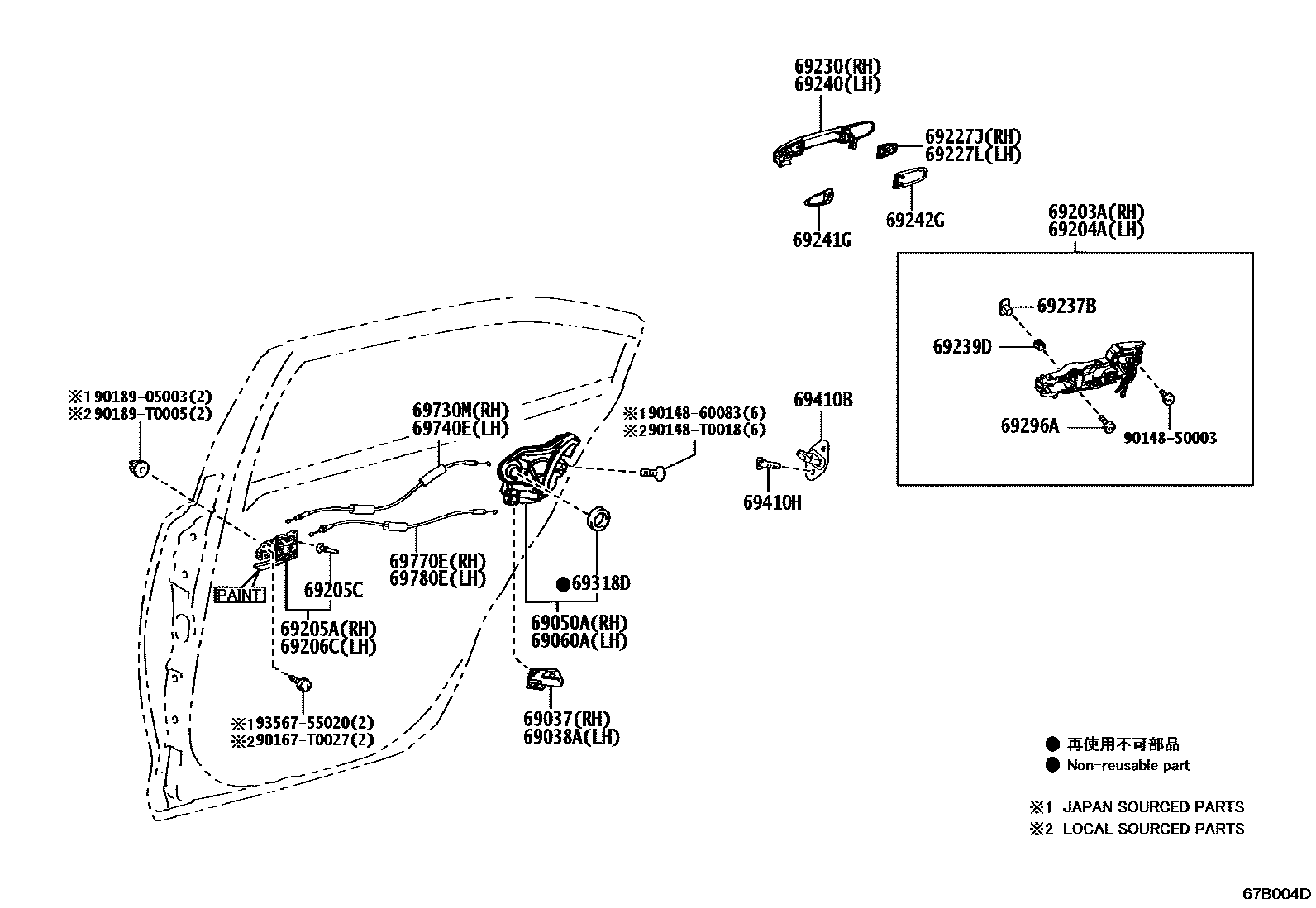

REAR DOOR LOCK & HANDLE

69037COVER SUB-ASSY, REAR DOOR LOCK, RH

main69037-02010iMXGA10,ZVG10..BZP202103-202412

main69037-02020iZSG10,ZVG10..SAP202110-202411

main69037-02040iZSG10..LHD..E..GEN;ZSG10..RHD..THP..GEN;ZSG10..(E,N)..(MA,VN);ZVG10..(MAP,THP)..(E,G,R)202007-202512

main69037-02050iZSG10,ZVG10..TWP202010-202410

69038ACOVER SUB-ASSY, REAR DOOR LOCK, LH

main69038-02010iMXGA10,ZVG10..BZP202103-202412

main69038-02020iZSG10,ZVG10..SAP202110-202411

main69038-02040iZSG10..MAP..G202007-202512

main69038-02050iZSG10,ZVG10..TWP202010-202410

69050ALOCK ASSY, REAR DOOR W/MOTOR, RH

main69050-02370iZSG10..MAP..G202007-202512

main69050-02381iZSG10,ZVG10..SAP202110-202411

main69050-02400iMXGA10,ZVG10..BZP202103-202412

main69050-02420iZSG10,ZVG10..TWP202010-202410

69060ALOCK ASSY, REAR DOOR W/MOTOR, LH

main69060-02370iZSG10,ZVG10..MA202007-202512

main69060-02381iZSG10,ZVG10..SAP202110-202411

main69060-02400iMXGA10,ZVG10..BZP202103-202412

main69060-02420iZSG10,ZVG10..TWP202010-202410

69203AFRAME SUB-ASSY, REAR DOOR OUTSIDE HANDLE, RH

main69203-0A010iZVG10..E..PH;ZSG10..THP..(GEN,PH,TH,VN);ZVG10..THP..(GEN,IDN,TH,VN)202007-202512

main69203-0A020iZSG10,ZVG10..TWP202010-202410

main69203-0A030iMXGA10,ZVG10..BZP202103-202412

main69203-0A070iZSG10,ZVG10..SAP202110-202411

69204AFRAME SUB-ASSY, REAR DOOR OUTSIDE HANDLE, LH

main69204-0A010iZSG10..MAP..G202007-202512

main69204-0A020iZSG10,ZVG10..TWP202010-202410

main69204-0A030iMXGA10,ZVG10..BZP202103-202412

main69204-0A070iZSG10,ZVG10..SAP202110-202411

69205AHANDLE SUB-ASSY, REAR DOOR INSIDE, RH

main69205-02390-A0iZSG10..G..GCC;ZVG10..E..GCC202010-202410

FROMAGE,TRIM0#

main69205-02390-C0iZSG10,ZVG10..TWP..(E,G,J,N)202410

BLACK,TRIM2#,3#,SATIN SILVER

main69205-02390-C0iZSG10,ZVG10..L,M202410-202510

BLACK,TRIM2#,SATIN SILVER

main69205-02390-C0iZSG10,ZVG10..L,M202108-202410

BLACK,TRIM2#

main69205-02390-C0iZSG10,ZVG10..TWP..(E,G,J,N)202010-202410

BLACK,TRIM2#,3#

main69205-02420-A0iMXGA10..E;ZVG10..E..AGT;ZVG10..BZP..(BZ,GEN)202103-202403

FROMAGE,TRIM0#

main69205-02420-C0iMXGA10..G,N;ZVG10..G..AGT202404-202412

BLACK,TRIM0#,2#

main69205-02420-C0iMXGA10..E;ZVG10..E..AGT;ZVG10..BZP..(BZ,GEN)202103-202412

BLACK,TRIM2#

main69205-06180-C0iZVG10..E..PH;ZSG10..LHD..E..GEN;ZSG10..(E,N)..(MA,VN);ZSG10..RHD..THP..(E,G);ZVG10..(MAP,THP)..(E,G)..(GEN,IDN,MA,TH,VN)202401-202602

BLACK,TRIM2#

main69205-06180-C0iZVG10..E..PH;ZSG10..LHD..E..GEN;ZSG10..(E,N)..(MA,VN);ZSG10..RHD..THP..(E,G);ZVG10..(MAP,THP)..(E,G)..(GEN,IDN,MA,TH,VN)202007-202411

BLACK,TRIM2#,3#

main69205-0A020-C0iZSG10,ZVG10..SAP..(E,G)202110-202411

BLACK,TRIM2#

main69205-0A020-C0iZSG10,ZVG10..SAP..(E,G)202411

BLACK,TRIM2#,3#

main69205-0A020-D0iZSG10,ZVG10..SAP..(E,G)202110-202411

TERRA ROSSA,TRIM3#

69205CCUSHION(FOR REAR DOOR INSIDE HANDLE)

main90541-04014iZSG10..IDN202007-202411

69206CHANDLE SUB-ASSY, REAR DOOR INSIDE, LH

main69206-02400-A0iMXGA10..E;ZVG10..E..AGT;ZVG10..BZP..(BZ,GEN)202103-202403

FROMAGE,TRIM0#

main69206-02400-C0iMXGA10..G,N;ZVG10..G..AGT202103-202412

BLACK,TRIM2#

main69206-02400-C0iMXGA10..G,N;ZVG10..G..AGT202404-202412

BLACK,TRIM0#,2#

main69206-02490-A0iZSG10..G..GCC;ZVG10..E..GCC202010-202410

FROMAGE,TRIM0#

main69206-02490-C0iZSG10,ZVG10..TWP..(E,G,J,N)202410

BLACK,TRIM2#,3#,SATIN SILVER

main69206-02490-C0iZSG10,ZVG10..TWP..(E,G,J,N)202010-202410

BLACK,TRIM2#,3#

main69206-02490-C0iZSG10,ZVG10..L,M202108-202410

BLACK,TRIM2#

main69206-02490-C0iZSG10,ZVG10..L,M202410-202510

BLACK,TRIM2#,SATIN SILVER

main69206-06180-C0iZVG10..E..PH;ZSG10..LHD..E..GEN;ZSG10..(E,N)..(MA,VN);ZSG10..RHD..THP..(E,G);ZVG10..(MAP,THP)..(E,G)..(GEN,IDN,MA,TH,VN)202007-202411

BLACK,TRIM2#,3#

main69206-06180-C0iZVG10..R202401-202602

BLACK,TRIM2#

main69206-0A020-C0iZSG10,ZVG10..SAP202110-202411

BLACK,TRIM2#

main69206-0A020-C0iZSG10,ZVG10..SAP..(E,G)202411

BLACK,TRIM2#,3#

main69206-0A020-D0iZSG10,ZVG10..SAP..(E,G)202110-202411

TERRA ROSSA,TRIM3#

69227JCOVER, REAR DOOR OUTSIDE HANDLE, RH

main69227-02400iMXGA10,ZVG10..BZP202103-202412

main69227-02420iZSG10,ZVG10..TWP202010-202410

main69227-06140iZSG10..MAP..G202007-202512

main69227-0A010iZSG10,ZVG10..SAP202110-202411

BLACK

69227LCOVER, REAR DOOR OUTSIDE HANDLE, LH

main69227-02400iMXGA10,ZVG10..BZP202103-202412

main69227-02420iZSG10,ZVG10..TWP202010-202410

main69227-06140iZSG10..IDN202007-202512

main69227-0A010iZSG10,ZVG10..SAP202110-202411

BLACK

69230HANDLE ASSY, REAR DOOR OUTSIDE, RH

main69211-02938iZSG10,ZVG10..TWP202010-202410

PAINT REQ.

main69211-02940iZVG10..E..PH;ZSG10..THP..(GEN,PH,TH,VN);ZVG10..THP..(GEN,IDN,TH,VN)202007-202512

PAINT REQ.

main69211-02941iMXGA10,ZVG10..BZP202103-202412

PAINT REQ.

main69211-0A901iZSG10,ZVG10..SAP202110-202411

NO PAINT REQ.

69237BNUT, REAR DOOR HANDLE

main69237-0A010iZSG10,ZVG10..SAP202110-202411

main69237-0K040iZSG10,ZVG10..MA202007-202512

main69237-0K070iMXGA10,ZVG10..BZP202103-202412

main69237-62010iZSG10,ZVG10..TWP202010-202410

sub69237-0E010

69239DBUSH, REAR DOOR HANDLE

main69239-02080iZSG10,ZVG10..TWP202010-202410

main69239-06060iZSG10,ZVG10..MAP..E202007-202512

main69239-0A010iZSG10,ZVG10..SAP202110-202411

main69239-47010iMXGA10,ZVG10..BZP202103-202412

69240HANDLE ASSY, REAR DOOR OUTSIDE, LH

main69211-02938iZSG10,ZVG10..TWP202010-202410

PAINT REQ.

main69211-02940iZSG10..IDN202007-202512

PAINT REQ.

main69211-02941iMXGA10,ZVG10..BZP202103-202412

PAINT REQ.

main69211-0A901iZSG10,ZVG10..SAP202110-202411

NO PAINT REQ.

69241GPAD, REAR DOOR OUTSIDE HANDLE, FRONT

main69241-02260iMXGA10,ZVG10..BZP202103-202412

main69241-02300iZSG10,ZVG10..TWP202010-202410

main69241-06140iZSG10,ZVG10..MAP..E202007-202512

main69241-0A010iZSG10,ZVG10..SAP202110-202411

69242GPAD, REAR DOOR OUTSIDE HANDLE, REAR

main69242-02250iMXGA10,ZVG10..BZP202103-202412

main69242-02290iZSG10,ZVG10..TWP202010-202410

main69242-06140iZVG10..E..PH;ZSG10..THP..(GEN,PH,TH,VN);ZVG10..THP..(GEN,IDN,TH,VN)202007-202512

main69242-0A010iZSG10,ZVG10..SAP202110-202411

69296ASCREW, DOOR INSIDE HANDLE

main69296-0A010iZSG10,ZVG10..SAP202110-202411

main69296-0M010iZSG10,ZVG10..MAP202007-202410

main69296-30010iMXGA10,ZVG10..BZP202103-202301

main90148-50006iMXGA10,ZVG10..BZP202301-202512

69318DSEAL, DOOR LOCK WIRING HARNESS

main69318-51010iZVG10..E..PH;ZSG10..THP..(GEN,PH,TH,VN);ZVG10..THP..(GEN,IDN,TH,VN)202007-202512

69410BPLATE ASSY, REAR DOOR LOCK STRIKER

main69410-02040iZSG10,ZVG10..TWP202010-202410

main69410-02090iMXGA10,ZVG10..BZP202103-202412

main69410-0K070iZSG10..MAP..G202007-202512

main69410-20110iZSG10,ZVG10..SAP202110-202411

69410HSCREW, REAR DOOR LOCK STRIKER

main90148-80066iMXGA10,ZVG10..BZP202103-202412

main90148-80066iZSG10..TH202007-202512

(J)

main90148-T0015iZSG10..TWP..G;ZVG10..MAP,TWP;ZSG10..(MAP,TWP)..(E,J,M,N)202007-202512

(L)

main90148-W0004iZSG10,ZVG10..SAP202110-202411

(L)

69730MCABLE, REAR DOOR LOCK REMOTE CONTROL, RH(FOR OPEN LEVER)

main69730-0A010iZSG10..IDN202007-202512

main69730-0A020iZSG10,ZVG10..TWP202010-202410

main69730-0A030iMXGA10,ZVG10..BZP202103-202412

69740ECABLE, REAR DOOR LOCK REMOTE CONTROL, LH(FOR OPEN LEVER)

main69730-0A010iZSG10..IDN202007-202512

main69730-0A020iZSG10,ZVG10..TWP202010-202410

main69730-0A030iMXGA10,ZVG10..BZP202103-202412

69770ECABLE, REAR DOOR INSIDE LOCKING, RH(FOR LOCK / UNLOCK KNOB)

main69770-0A010iZSG10..IDN202007-202512

main69770-0A020iZSG10,ZVG10..TWP202010-202410

main69770-0A030iMXGA10,ZVG10..BZP202103-202412

69780ECABLE, REAR DOOR INSIDE LOCKING, LH(FOR LOCK / UNLOCK KNOB)

main69770-0A010iZSG10..IDN202007-202512

main69770-0A020iZSG10,ZVG10..TWP202010-202410

main69770-0A030iMXGA10,ZVG10..BZP202103-202412

9014850003

main90148-50003

9014860083

main90148-60083

90148T0018

main90148-T0018

90167T0027

main90167-T0027

9018905003

main90189-05003

90189T0005

main90189-T0005

9356755020

main93567-55020

32 parts on this diagram · 1 diagram in section
