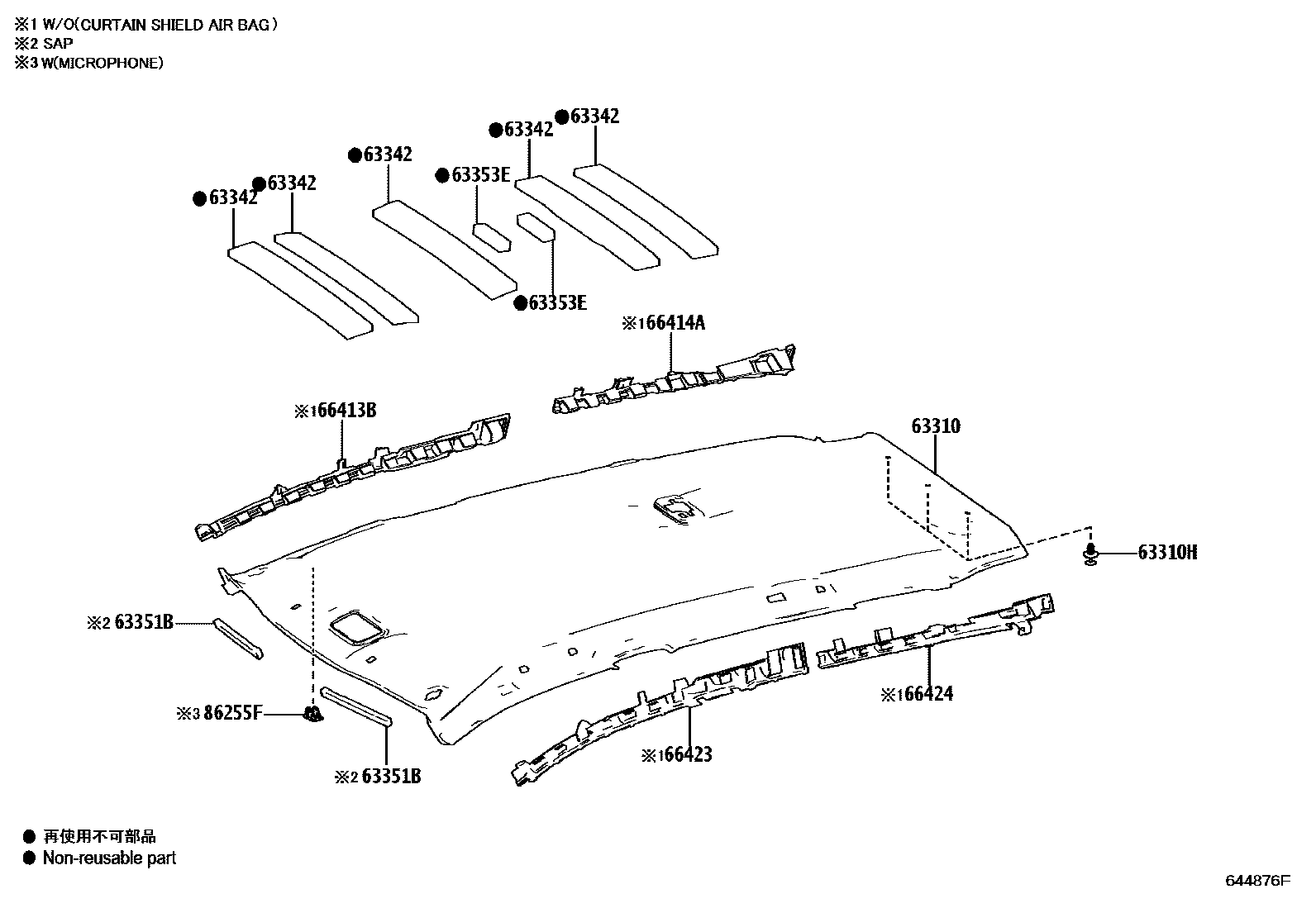

ROOF HEADLINING & SILENCER PAD
63310HEADLINING ASSY, ROOF
BLACK,TRIM2#,3#
main63310-0A050-C0iZSG10..THP..E..GEN; ZVG10..E..PH;ZVG10..THP..G..GEN;ZSG10,ZVG10..(G,N)..(IDN,TH)202007-202402
BLACK,TRIM2#,3#; MOON ROOF-WITHOUT,BLACK,TRIM2#,3#
BLACK,TRIM2#,3#; MOON ROOF-WITH,BLACK,TRIM2#,3#
main63310-0A120-C0iZSG10..G..GCC; ZVG10..E..TAIW;ZVG10..TWP..(G,N);ZSG10..(J,N)..GCC;ZSG10..(G,J,N)..TAIW202010-202410
BLACK,TRIM2#,3#; MOON ROOF-WITHOUT,BLACK,TRIM0#,2#,3#
main63310-0A170-C0iZSG10..G..GCC;ZVG10..E..GCC; ZSG10..N..GCC; ZSG10..N..GCC;ZVG10..G..GCC202010-202410
BLACK,TRIM0#,2#,3#; MOON ROOF-WITH,BLACK,TRIM2#,3#; UAE SPEC&MOON ROOF-WITH,BLACK,TRIM2#,3#
ANTI-THEFT SYSTEM-WITH(*IM & SECURITY HORN & *IS & *GBS),BLACK,TRIM2#; BLACK,TRIM2#
main63310-0A390-C0supersedes 63310-0A210-C0iMXGA10..E..GEN;ZVG10..BZP..G..GEN; ZVG10..G..AGT; ZVG10..G..BZ;MXGA10..E..BZ;ZVG10..E..AGT202103-202112
ANTI-THEFT SYSTEM-WITH(*IM & SECURITY HORN & *IS & *GBS),BLACK,TRIM0#,2#; BLACK,TRIM0#,2#; BLACK,TRIM2#
main63310-0A400-C0supersedes 63310-0A240-C0iMXGA10..E..BZ;ZVG10..E..AGT; MXGA10..E..GEN; ZVG10..BZP..E..GEN; ZVG10..E..BZ;MXGA10..E..AGT; ZVG10..G..AGT202201-202403
ANTI-THEFT SYSTEM-WITH(*IM & SECURITY HORN & *IS & *GBS)&MOON ROOF-WITH,BLACK,TRIM0#,2#; ANTI-THEFT SYSTEM-WITH(*IM & SECURITY HORN & *IS & *GBS),BLACK,TRIM0#,2#; BLACK,TRIM0#,2#; MOON ROOF-WITH,BLACK,TRIM0#,2#; MOON ROOF-WITH,BLACK,TRIM2#
BLACK,TRIM2#; BLACK,TRIM2#,3#
BLACK,TRIM2#,3#
BLACK,TRIM2#,3#
BLACK,TRIM2#; BLACK,TRIM2#,3#
BLACK,TRIM2#,3#
main63310-0A670-C0iZVG10..E..PH; ZVG10..IDN;ZSG10..LHD..E;ZVG10..E..(TH,VN);ZVG10..LHD..THP..GEN202401
BLACK,TRIM2#,3#; MOON ROOF-WITH(PANORAMA ROOF),BLACK,TRIM2#,3#
BLACK,TRIM2#,3#; MOON ROOF-WITH(PANORAMA ROOF),BLACK,TRIM2#,3#
main63310-0A700-C0iZSG10,ZVG10..L,M; ZSG10..J..GCC;ZVG10..E..TAIW;ZVG10..TWP..(G,N);ZSG10..(G,N)..TAIW202410
BLACK,TRIM2#; BLACK,TRIM2#,3#
BLACK,TRIM2#,3#; MOON ROOF-WITH,BLACK,TRIM2#,3#
BLACK,TRIM2#; PARAGUAY SPEC&ANTI-THEFT SYSTEM-WITH(*IM & SECURITY HORN & *IS & *GBS),BLACK,TRIM2#
main63310-0A780-A0supersedes 63310-0A760-A0iMXGA10..E..GEN;ZVG10..BZP..G..GEN; ZVG10..G..BZ;MXGA10..E..BZ;ZVG10..E..AGT202501
ANTI-THEFT SYSTEM-WITH(*IM & SECURITY HORN & *IS & *GBS),FROMAGE,TRIM0#; FROMAGE,TRIM0#
main63310-0A780-C0supersedes 63310-0A760-C0iMXGA10..E..BZ;ZVG10..E..AGT;ZVG10..G..(AGT,BZ); MXGA10..E..GEN;ZVG10..BZP..G..GEN202404-202412
ANTI-THEFT SYSTEM-WITH(*IM & SECURITY HORN & *IS & *GBS),BLACK,TRIM2#; BLACK,TRIM2#
main63310-0A800-A0supersedes 63310-0A790-A0iMXGA10..E..BZ; MXGA10..E..GEN; ZVG10..BZP..E..GEN; ZVG10..E..BZ;MXGA10..E..AGT202501
ANTI-THEFT SYSTEM-WITH(*IM & SECURITY HORN & *IS & *GBS)&MOON ROOF-WITH,FROMAGE,TRIM0#; ANTI-THEFT SYSTEM-WITH(*IM & SECURITY HORN & *IS & *GBS),FROMAGE,TRIM0#; FROMAGE,TRIM0#; MOON ROOF-WITH,FROMAGE,TRIM0#
main63310-0A800-C0supersedes 63310-0A790-C0iMXGA10..E..BZ; MXGA10..E..GEN; ZVG10..BZP..E..GEN; ZVG10..E..BZ;MXGA10..E..AGT202404-202412
ANTI-THEFT SYSTEM-WITH(*IM & SECURITY HORN & *IS & *GBS)&MOON ROOF-WITH,BLACK,TRIM2#; ANTI-THEFT SYSTEM-WITH(*IM & SECURITY HORN & *IS & *GBS),BLACK,TRIM2#; BLACK,TRIM2#; MOON ROOF-WITH,BLACK,TRIM2#
BLACK,TRIM2#,3#
BLACK,TRIM2#; BLACK,TRIM2#,3#
BLACK,TRIM2#
BLACK,TRIM2#
BLACK,TRIM2#,3#
BLACK,TRIM2#,3#
UAE SPEC,BLACK,TRIM2#,3#
BLACK,TRIM0#,2#; MOON ROOF-WITH,BLACK,TRIM0#,2#
AUDIO-*DA(10INCH) & 6SPEAKER & 5GHZ,BLACK,TRIM2#,3#
AUDIO-*DA(8INCH) & 6SPEAKER,BLACK,TRIM2#,3#; MOON ROOF-WITHOUT&AUDIO-*DA(10INCH) & 6SPEAKER & 5GHZ,BLACK,TRIM2#,3#
AUDIO-*DA(8INCH) & 6SPEAKER&DATA COMMUNICATION MODULE-WITH,BLACK,TRIM2#,3#; UAE SPEC&AUDIO-*DA(8INCH) & 6SPEAKER,BLACK,TRIM2#,3#; UAE SPEC&MOON ROOF-WITHOUT&AUDIO-*DA(10INCH) & 6SPEAKER & 5GHZ,BLACK,TRIM2#,3#
AUDIO-*DA(10INCH) & 6SPEAKER & 2.4GHZ,BLACK,TRIM2#,3#; AUDIO-*DA(10INCH) & 6SPEAKER & 5GHZ,BLACK,TRIM2#,3#; MOON ROOF-WITH&AUDIO-*DA(8INCH) & 6SPEAKER&DATA COMMUNICATION MODULE-WITH,BLACK,TRIM2#,3#; MOON ROOF-WITH&AUDIO-*DA(8INCH) & 6SPEAKER,BLACK,TRIM2#,3#
BLACK,TRIM2#; PARAGUAY SPEC,BLACK,TRIM2#
FROMAGE,TRIM0#; MOON ROOF-WITH,FROMAGE,TRIM0#
BLACK,TRIM2#; MOON ROOF-WITH,BLACK,TRIM2#
63310HCLIP(FOR ROOF HEADLINING)
FROMAGE,TRIM0#
main90467-05168-C0×3iMXGA10..E;ZVG10..E..AGT;ZVG10..BZP..(BZ,GEN); MXGA10..G,N;ZVG10..G..AGT202103-202112
BLACK,TRIM0#,2#; BLACK,TRIM2#
63342PAD, ROOF SILENCER, NO.2
main63342-02880×3iZSG10..G..GCC; ZSG10..TAIW;ZSG10..J..GCC;ZVG10..E..TAIW;ZVG10..TWP..(G,L,M,N)202410
UAE SPEC&MOON ROOF-WITHOUT&AUDIO-*DA(10INCH) & 6SPEAKER & 5GHZ
main63342-0A060iZVG10..E..PH;ZSG10..RHD..THP..E; ZVG10..IDN;ZSG10..LHD..E;ZVG10..THP..E..(GEN,TH,VN)202401
MOON ROOF-WITH(PANORAMA ROOF)
63351BPAD, ROOF HEADLINING
63353EPAD, ROOF HEADLINING, CENTER
main63353-0A020×2iZSG10..THP..E..GEN; ZVG10..E..PH;ZVG10..RHD..THP..(G,N);ZSG10..THP..(G,N)..(GEN,PH,TH,VN)202007-202402
MOON ROOF-WITHOUT
main63353-0A040×2iZSG10..G..GCC; ZSG10..TAIW;ZVG10..E..TAIW;ZSG10..(J,N)..GCC;ZVG10..TWP..(G,L,M,N)202010-202310
MOON ROOF-WITHOUT
66413BSPACER, SIDE RAIL, FRONT RH
SRS AIR BAG-WITH(*DRP & SIDE & *CUSA & KNEE)
66414ASPACER, SIDE RAIL, REAR RH
main66414-0A010iZSG10..G..SA;ZSG10..LHD..SAP;ZSG10..RHD..(J,N);ZVG10..RHD..(G,N)..(GEN,SA); ZSG10..LHD..SAP..G;ZSG10..RHD..SAP..N..GEN202007-202411
SRS AIR BAG-WITH(*DRP & SIDE & *CUSA & KNEE)
SRS AIR BAG-WITH(*DRP & SIDE & *CUSA & KNEE)
66423SPACER, SIDE RAIL, FRONT LH
main66423-0A010iZSG10..G..SA;ZSG10..LHD..SAP;ZSG10..RHD..(J,N);ZVG10..RHD..(G,N)..(GEN,SA); ZSG10..LHD..SAP..G;ZSG10..RHD..SAP..N..GEN202007-202411
SRS AIR BAG-WITH(*DRP & SIDE & *CUSA & KNEE)
SRS AIR BAG-WITH(*DRP & SIDE & *CUSA & KNEE)
66424SPACER, SIDE RAIL, REAR LH
main66424-0A010iZSG10..G..SA;ZSG10..LHD..SAP;ZSG10..RHD..(J,N);ZVG10..RHD..(G,N)..(GEN,SA); ZSG10..LHD..SAP..G;ZSG10..RHD..SAP..N..GEN202007-202411
SRS AIR BAG-WITH(*DRP & SIDE & *CUSA & KNEE)
SRS AIR BAG-WITH(*DRP & SIDE & *CUSA & KNEE)
86255FCASE, MICROPHONE
AUDIO-*DA(10INCH) & 6SPEAKER & 5GHZ,BLACK,TRIM2#,3#; BLACK,TRIM2#; BLACK,TRIM2#,3#
BLACK,TRIM2#; BLACK,TRIM2#,3#
main86255-42010-C0iZSG10..G..GCC; ZSG10..J..GCC; ZVG10..(G,N)..GCC; ZVG10..E..GCC; ZVG10..G..GCC202410
AUDIO-*DA(10INCH) & 6SPEAKER & 2.4GHZ,BLACK,TRIM2#,3#; AUDIO-*DA(10INCH) & 6SPEAKER & 5GHZ,BLACK,TRIM2#,3#; AUDIO-*DA(8INCH) & 6SPEAKER&DATA COMMUNICATION MODULE-WITH,BLACK,TRIM2#,3#; AUDIO-*DA(8INCH) & 6SPEAKER,BLACK,TRIM2#,3#; MOON ROOF-WITH&AUDIO-*DA(8INCH) & 6SPEAKER&DATA COMMUNICATION MODULE-WITH,BLACK,TRIM2#,3#; MOON ROOF-WITH&AUDIO-*DA(8INCH) & 6SPEAKER,BLACK,TRIM2#,3#; UAE SPEC&AUDIO-*DA(8INCH) & 6SPEAKER,BLACK,TRIM2#,3#; UAE SPEC&MOON ROOF-WITHOUT&AUDIO-*DA(10INCH) & 6SPEAKER & 5GHZ,BLACK,TRIM2#,3#
10 parts on this diagram · 4 diagrams in section
