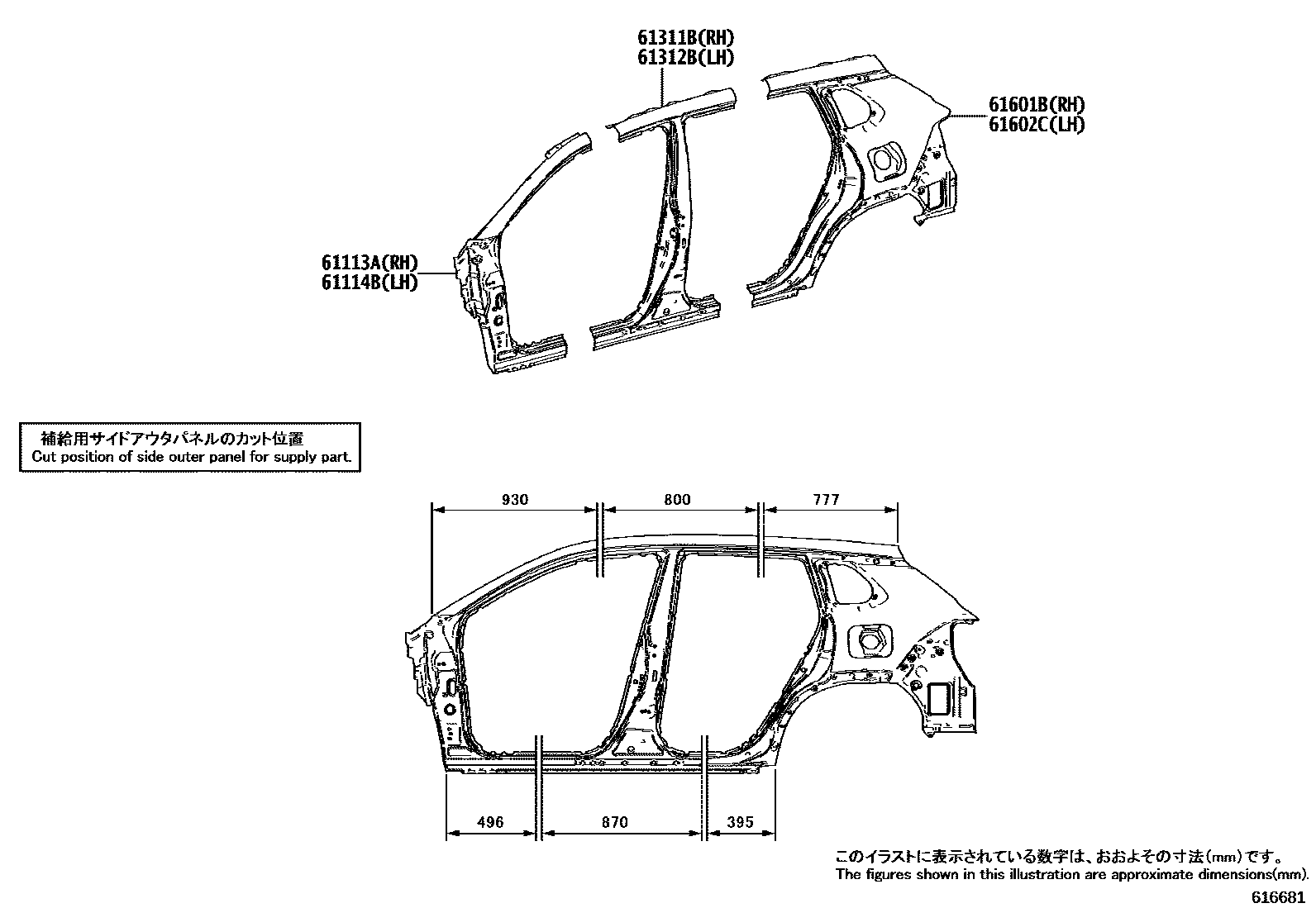

SIDE MEMBER

0001 1OUTER PANEL 0002 1INNER PANEL, LH 0003 1INNER PANEL, LH 0004 1INNER PANEL, RH 0005 1INNER PANEL, RH

61113APANEL, SIDE, OUTER NO.2 RH

main61113-0A020iZSG10..IDN202007-202402

main61113-0A021iZSG10..TH202401-202512

main61113-0A030iZSG10,ZVG10..TWP202010-202410

main61113-0A040iMXGA10,ZVG10..BZP202103-202412

main61113-0A080iZSG10,ZVG10..SAP202110-202411

main61113-0A090iZSG10,ZVG10..E..MA202112-202411

61114BPANEL, SIDE, OUTER NO.2 LH

main61114-0A030iZSG10,ZVG10..MA202007-202402

main61114-0A031iZSG10..VN;ZVG10..THP..(E,G);ZSG10..LHD..E..GEN;ZSG10..RHD..THP..GEN202401-202512

main61114-0A040iZSG10,ZVG10..TWP202010-202410

main61114-0A050iMXGA10,ZVG10..BZP202103-202412

main61114-0A090iZSG10,ZVG10..SAP202110-202411

main61114-0A100iZSG10,ZVG10..E..MA202112-202411

61311BPILLAR, CENTER BODY, OUTER RH

main61311-0A020iZVG10..E..PH;ZSG10..THP..(GEN,PH,TH,VN);ZVG10..THP..(GEN,IDN,TH,VN)202007-202402

main61311-0A021iZSG10..VN;ZVG10..THP..(E,G);ZSG10..LHD..E..GEN;ZSG10..RHD..THP..GEN202401-202512

main61311-0A030iZSG10,ZVG10..TWP202010-202410

main61311-0A040iMXGA10,ZVG10..BZP202103-202412

main61311-0A080iZSG10,ZVG10..SAP202110-202411

main61311-0A090iZSG10..G..MA202112-202411

61312BPILLAR, CENTER BODY, OUTER LH

main61312-0A020iZVG10..E..PH;ZSG10..THP..(GEN,PH,TH,VN);ZVG10..THP..(GEN,IDN,TH,VN)202007-202402

main61312-0A021iZSG10..VN;ZVG10..THP..(E,G);ZSG10..LHD..E..GEN;ZSG10..RHD..THP..GEN202401-202512

main61312-0A030iZSG10,ZVG10..TWP202010-202410

main61312-0A040iMXGA10,ZVG10..BZP202103-202412

main61312-0A080iZSG10,ZVG10..SAP202110-202411

main61312-0A090iZSG10,ZVG10..MA202112-202411

61601BPANEL SUB-ASSY, QUARTER, RH

main61601-0A020iZVG10..E..PH;ZSG10..THP..(GEN,PH,TH,VN);ZVG10..THP..(GEN,IDN,TH,VN)202007-202402

main61601-0A021iZSG10..VN;ZVG10..THP..(E,G);ZSG10..LHD..E..GEN;ZSG10..RHD..THP..GEN202401-202512

main61601-0A030iZSG10,ZVG10..TWP202010-202410

main61601-0A040iMXGA10,ZVG10..BZP202103-202412

main61601-0A080iZSG10,ZVG10..SAP202110-202411

main61601-0A090iZSG10,ZVG10..MA202112-202411

61602CPANEL SUB-ASSY, QUARTER, LH

main61602-0A030iZVG10..E..PH;ZSG10..THP..(GEN,PH,TH,VN);ZVG10..THP..(GEN,IDN,TH,VN)202007-202402

main61602-0A031iZSG10..TH202401-202512

main61602-0A040iZSG10,ZVG10..TWP202010-202410

main61602-0A050iMXGA10,ZVG10..BZP202103-202412

main61602-0A090iZSG10,ZVG10..SAP202110-202411

main61602-0A100iZSG10,ZVG10..E..MA202112-202411

6 parts on this diagram · 5 diagrams in section
