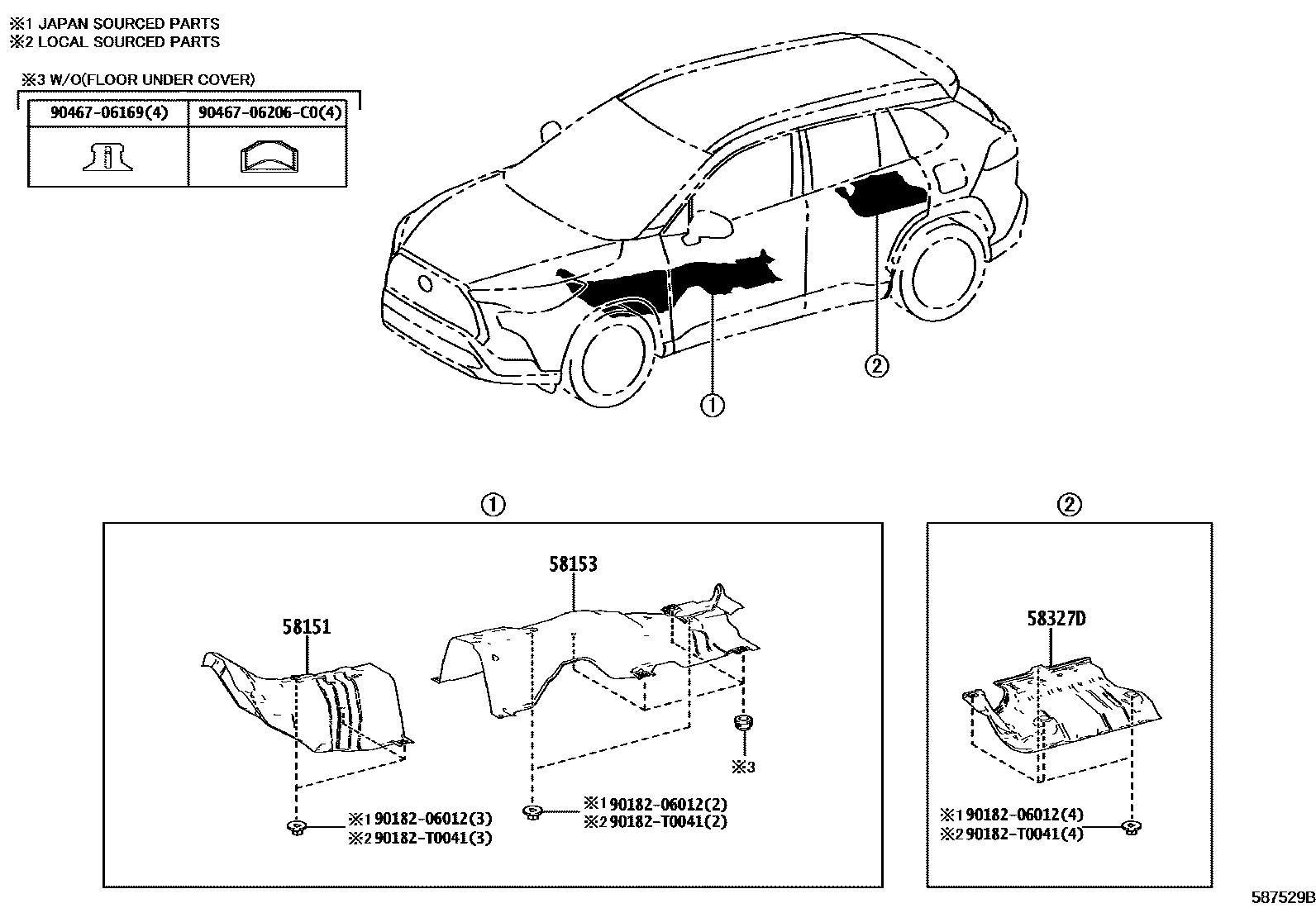

FLOOR INSULATOR

58151INSULATOR, FRONT FLOOR HEAT, NO.1

main58151-02550iZVG10..SA202411

main58151-02640iZVG10..(MAP,THP)..(E,G,R)202401

main58151-02650iZVG10..TWP202410

main58151-02670iZSG10..TWP202010-202410

main58151-02720iZVG10..BZP202501

main58151-02730iMXGA10202501

main58151-0A090iZSG10..SAP202110-202411

main58151-F4060iZSG10..THP..(GEN,PH,TH,VN)202007-202402

58153INSULATOR, FRONT FLOOR HEAT, NO.2

main58153-0A070iZSG10..MAP..G202007-202411

main58153-0A080iZSG10,ZVG10..TWP202010-202410

main58153-0A090iMXGA10,ZVG10..BZP202201-202403

main58153-0A100iZSG10,ZVG10..SAP202110-202411

58327DINSULATOR, MAIN MUFFLER HEAT, UPPER

main58327-0A050iZSG10..MAP..G202007-202411

main58327-0A060iZSG10,ZVG10..TWP202010-202410

main58327-0A070iMXGA10,ZVG10..BZP202103-202112

main58327-0A071iMXGA10,ZVG10..BZP202501

main58327-0A080iZSG10,ZVG10..SAP202411

9018206012

main90182-06012

90182T0041

main90182-T0041

9046706169

main90467-06169

9046706206C0

main90467-06206C0

7 parts on this diagram · 1 diagram in section
