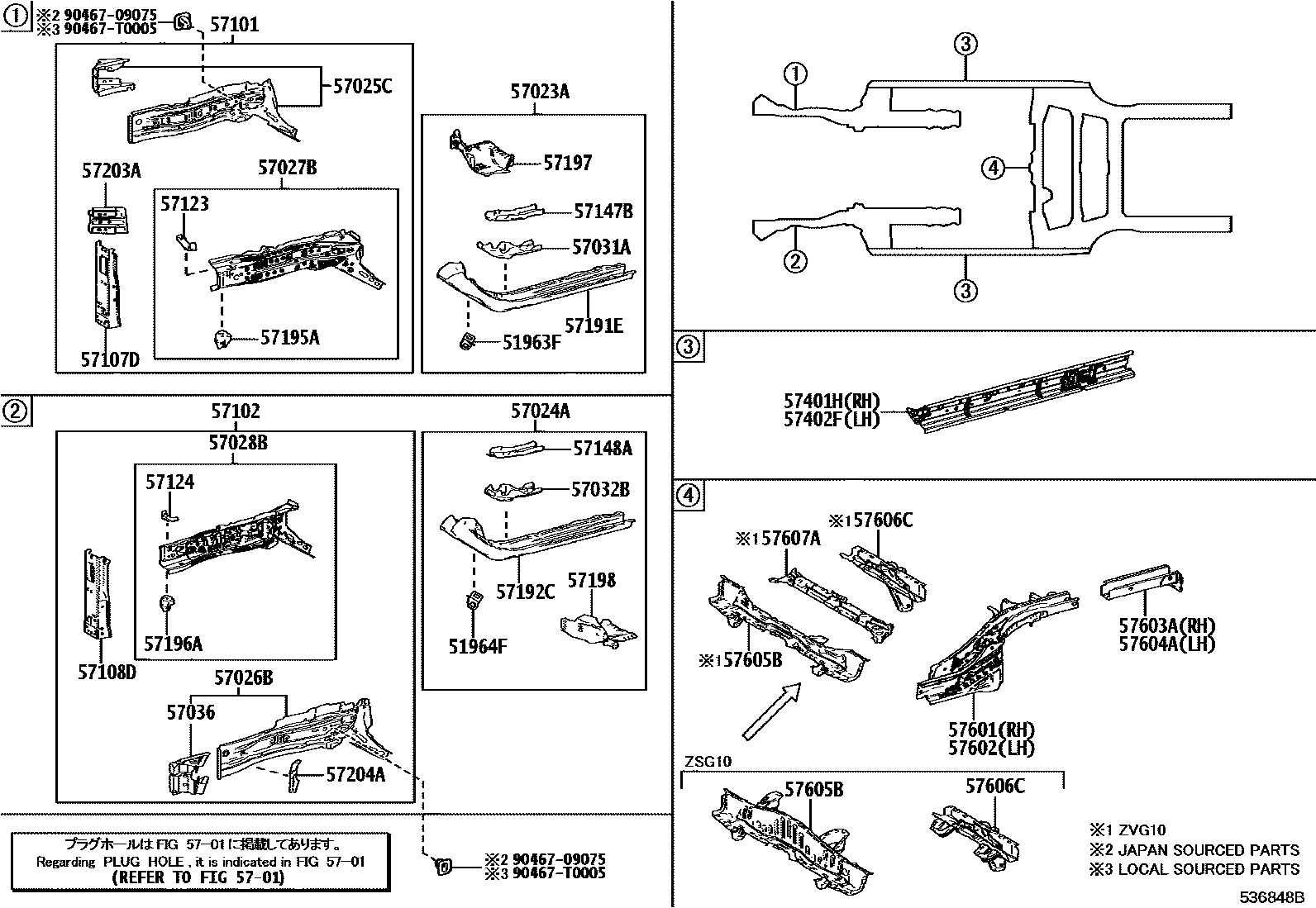

FLOOR SIDE MEMBER

0001 1 0002 1 0003 1 0004 1

51963FHOOK, TRANSPORT

main51093-0A030iZSG10,ZVG10..MA202411

main51093-10020iZSG10,ZVG10..THP202201-202205

(J)

main51093-F4040iZVG10..E..PH;ZSG10..THP..(GEN,PH,TH,VN);ZVG10..THP..(GEN,IDN,TH,VN)202205-202402

51964FHOOK, TRANSPORT, LH

main51094-0A030iZSG10,ZVG10..E..MA202112-202410

main51094-10010iZSG10,ZVG10..THP202201-202205

(J)

main51094-F4040iZSG10..IDN202205-202212

5701HOLE PLUG

→ Go to FIG 57-01

57023AMEMBER SUB-ASSY, REAR SIDE, RH

main57023-02140iZSG10,ZVG10..MA202007-202111

main57023-0A030iZSG10,ZVG10..MA202411

57024AMEMBER SUB-ASSY, REAR SIDE, LH

main57024-02150iZSG10..TH202401-202512

main57024-0A030iZSG10,ZVG10..E..MA202112-202410

57025CMEMBER SUB-ASSY, FRONT SIDE, OUTER RH

main57025-02080iZSG10,ZVG10..TWP202410

main57025-02100iMXGA10,ZVG10..BZP202404-202412

main57025-02110iZSG10..TH202401-202512

main57025-0A020iZSG10,ZVG10..SAP202411

main57025-0A030iZSG10..G..MA202112-202411

57026BMEMBER SUB-ASSY, FRONT SIDE, OUTER LH

main57026-02101iZSG10,ZVG10..TWP202010-202410

main57026-02120iMXGA10,ZVG10..BZP202404-202412

main57026-0A020iZSG10,ZVG10..SAP202110-202411

main57026-0A030iZSG10,ZVG10..E..MA202112-202410

main57026-F4020iZSG10..VN;ZVG10..THP..(E,G);ZSG10..LHD..E..GEN;ZSG10..RHD..THP..GEN202401

57027BMEMBER SUB-ASSY, FRONT SIDE, INNER RH

main57027-02110iZSG10,ZVG10..TWP202410

main57027-02130iMXGA10,ZVG10..BZP202404-202412

main57027-02140iZVG10..E..PH;ZSG10..THP..(GEN,PH,TH,VN);ZVG10..THP..(GEN,IDN,TH,VN)202007-202402

main57027-0A020iZSG10,ZVG10..SAP202110-202411

main57027-0A030iZSG10..G..MA202112-202411

57028BMEMBER SUB-ASSY, FRONT SIDE, INNER LH

main57028-02121iZSG10,ZVG10..TWP202410

main57028-02140iMXGA10,ZVG10..BZP202501

main57028-0A020iZSG10,ZVG10..SAP202411

main57028-0A030iZSG10,ZVG10..E..MA202112-202410

main57028-F4020iZSG10,ZVG10..MA202007-202111

57031AREINFORCE SUB-ASSY, FRONT SIDE MEMBER, NO.2 RH

main57031-0A020iZSG10,ZVG10..E..MA202112-202410

main57031-F4020iZSG10,ZVG10..MA202007-202111

57032BREINFORCEMENT SUB-ASSY, FRONT SIDE MEMBER, NO.2 LH

main57032-0A020iZSG10,ZVG10..MA202411

main57032-F4020iZSG10..VN;ZVG10..THP..(E,G);ZSG10..LHD..E..GEN;ZSG10..RHD..THP..GEN202401

57036PANEL SUB-ASSY, FRONT STEP, LH

main57036-02071iZSG10,ZVG10..TWP202010-202410

main57036-02080iMXGA10,ZVG10..BZP202110-202112

main57036-F4020iZVG10..E..PH;ZSG10..THP..(GEN,PH,TH,VN);ZVG10..THP..(GEN,IDN,TH,VN)202007-202402

57101MEMBER SUB-ASSY, FRONT SIDE, RH

main57101-02580iZSG10,ZVG10..TWP202410

main57101-02600iMXGA10,ZVG10..BZP202103-202109

main57101-02928iZSG10..TH202401-202512

main57101-0A040iZSG10,ZVG10..SAP202110-202411

main57101-0A070iMXGA10,ZVG10..BZP202404-202412

main57101-0A900iZSG10,ZVG10..E..MA202112-202410

57102MEMBER SUB-ASSY, FRONT SIDE, LH

main57102-02791iZSG10,ZVG10..TWP202410

main57102-02810iMXGA10,ZVG10..BZP202103-202109

main57102-02945iZSG10..IDN202007-202212

main57102-0A040iZSG10,ZVG10..SAP202110-202411

main57102-0A070iMXGA10,ZVG10..BZP202501

main57102-0A900iZSG10,ZVG10..MA202411

57107DREINFORCE SUB-ASSY, FRONT BUMPER MOUNTING, RH

main57107-02110iZSG10,ZVG10..SAP202007-202411

main57107-02120iZSG10,ZVG10..TWP202010-202410

main57107-02140iMXGA10,ZVG10..BZP202201-202403

main57107-0A020iZSG10..G..MA202112-202411

57108DREINFORCE SUB-ASSY, FRONT BUMPER MOUNTING, LH

main57108-02110iZSG10..TH202401-202512

main57108-02120iZSG10,ZVG10..TWP202410

main57108-02140iMXGA10,ZVG10..BZP202501

main57108-0A020iZSG10..G..MA202112-202411

57123SUPPORT, FRONT SIDE MEMBER, RH

main57123-02080iZSG10,ZVG10..TWP202410

main57123-02100iMXGA10,ZVG10..BZP202103-202112

main57123-0A020iZSG10,ZVG10..E..MA202112-202410

main57123-47020iZSG10,ZVG10..SAP,THP202201-202205

(J)

main57123-F4020iZSG10..TH202401-202512

57124SUPPORT, FRONT SIDE MEMBER, LH

main57124-02080iZSG10,ZVG10..TWP202010-202410

main57124-02100iMXGA10,ZVG10..BZP202103-202112

main57124-0A020iZSG10,ZVG10..MA202411

main57124-47020iZSG10,ZVG10..SAP,THP202201-202205

(J)

main57124-F4020iZSG10,ZVG10..MA202007-202111

57147BPLATE, FRONT SIDE MEMBER, REAR RH

main57147-02140iZSG10,ZVG10..MA202007-202111

main57147-0A010iZSG10,ZVG10..MA202411

57148APLATE, FRONT SIDE MEMBER, REAR LH

main57148-02130iZSG10..TH202401-202512

main57148-0A010iZSG10,ZVG10..E..MA202112-202410

57191EMEMBER SUB-ASSY, FRONT SIDE, INNER REAR RH

main57191-F4020iZSG10..TH202401-202512

57192CMEMBER SUB-ASSY, FRONT SIDE, INNER REAR LH

main57192-F4020iZVG10..E..PH;ZSG10..THP..(GEN,PH,TH,VN);ZVG10..THP..(GEN,IDN,TH,VN)202007-202402

57195AREINFORCEMENT, FRONT SIDE MEMBER, FRONT RH

main57195-02080iZSG10,ZVG10..TWP202010-202410

main57195-02100iMXGA10,ZVG10..BZP202501

main57195-0A020iZSG10,ZVG10..E..MA202112-202410

main57195-47010iZSG10,ZVG10..SAP,THP202201-202205

(J)

main57195-F4020iZSG10,ZVG10..SAP202205-202411

57196AREINFORCEMENT, FRONT SIDE MEMBER, FRONT LH

main57196-02090iZSG10,ZVG10..TWP202410

main57196-02110iMXGA10,ZVG10..BZP202404-202412

main57196-0A020iZSG10..G..MA202112-202411

main57196-47030iZSG10,ZVG10..SAP,THP202201-202205

(J)

main57196-F4020iZSG10,ZVG10..MA202007-202111

57197BOX, TORQUE, FRONT RH

main57197-02150iZSG10,ZVG10..TWP202010-202410

main57197-02170iMXGA10,ZVG10..BZP202103-202112

main57197-02180iZSG10,ZVG10..MA202007-202111

main57197-0A020iZSG10,ZVG10..E..MA202112-202410

57198BOX, TORQUE, FRONT LH

main57198-02150iZSG10,ZVG10..TWP202410

main57198-02170iMXGA10,ZVG10..BZP202201-202403

main57198-02180iZSG10..TH202401-202512

main57198-0A020iZSG10,ZVG10..MA202112-202411

57203AEXTENSION SUB-ASSY, FRONT SIDE MEMBER, NO.2 RH

main57215-02040iZSG10,ZVG10..TWP202010-202410

main57215-02060iMXGA10,ZVG10..BZP202404-202412

main57215-02070iZSG10..TH202401-202512

main57215-0A020iZSG10,ZVG10..MA202411

57204AEXTENSION SUB-ASSY, FRONT SIDE MEMBER, NO.2 LH

main57204-02071iZSG10,ZVG10..TWP202010-202410

main57204-02080iMXGA10,ZVG10..BZP202501

main57204-47011iMXGA10,ZVG10..BZP202201-202205

(J)

main57204-F4020iZSG10,ZVG10..MA202007-202111

57401HMEMBER SUB-ASSY, FLOOR SIDE, INNER RH

main57401-0A020iZSG10..TH202401-202512

main57401-0A030iZSG10,ZVG10..TWP202010-202410

main57401-0A040iMXGA10,ZVG10..BZP202404-202412

main57401-0A080iZSG10,ZVG10..SAP202110-202411

main57401-0A090iZSG10,ZVG10..E..MA202112-202410

57402FMEMBER SUB-ASSY, FLOOR SIDE, INNER LH

main57402-0A020iZSG10..TH202401-202512

main57402-0A030iZSG10,ZVG10..TWP202410

main57402-0A040iMXGA10,ZVG10..BZP202501

main57402-0A090iZSG10,ZVG10..SAP202411

main57402-0A100iZSG10,ZVG10..MA202411

57601MEMBER SUB-ASSY, REAR FLOOR SIDE, RH

main57601-0A030iZSG10..TH202401-202512

main57601-0A040iZSG10,ZVG10..TWP202010-202410

main57601-0A050iMXGA10,ZVG10..BZP202501

main57601-0A100iZSG10,ZVG10..SAP202110-202411

main57601-0A110iZSG10,ZVG10..E..MA202112-202410

57602MEMBER SUB-ASSY, REAR FLOOR SIDE, LH

main57602-0A030iZVG10..E..PH;ZSG10..THP..(GEN,PH,TH,VN);ZVG10..THP..(GEN,IDN,TH,VN)202007-202402

main57602-0A040iZSG10,ZVG10..TWP202410

main57602-0A050iMXGA10..BZ; MXGA10..G..GEN202404-202411

PARAGUAY SPEC&ENGINE-M20A-FKB

main57602-0A051iMXGA10,ZVG10..BZ; MXGA10..G..GEN; ZVG10..BZP..GEN202501

PARAGUAY SPEC&ENGINE-2ZR-FXB; PARAGUAY SPEC&ENGINE-M20A-FKB

main57602-0A060iZVG10..BZP;MXGA10..AGT,GEN202103-202112

main57602-0A061iMXGA10,ZVG10..BZP202411-202412

main57602-0A110iZSG10,ZVG10..SAP202110-202411

main57602-0A120iZSG10..G..MA202112-202411

57603AMEMBER SUB-ASSY, REAR FLOOR SIDE, REAR RH

main57603-0A010iZSG10,ZVG10..THP202007-202107

main57603-0A011iZSG10..IDN202107-202212

main57603-0A020iZSG10,ZVG10..TWP202410

main57603-0A030iMXGA10,ZVG10..BZP202501

main57603-0A081iZSG10,ZVG10..SAP202411

main57603-0A090iZSG10,ZVG10..MA202411

57604AMEMBER SUB-ASSY, REAR FLOOR SIDE, REAR LH

main57604-0A010iZSG10,ZVG10..THP202007-202107

main57604-0A011iZSG10..VN;ZSG10..RHD..THP;ZVG10..THP..(E,G);ZSG10..LHD..E..GEN202401

main57604-0A020iZSG10,ZVG10..TWP202410

main57604-0A030iMXGA10,ZVG10..BZP202201-202307

main57604-0A031iMXGA10;ZVG10..BZP..(AGT,GEN)202404-202412

main57604-0A081iZSG10,ZVG10..SAP202110-202411

main57604-0A091iZVG10..BZ; ZVG10..BZP..E..GEN202404-202412

PARAGUAY SPEC&ENGINE-2ZR-FXB

main57604-0A100iZSG10,ZVG10..MA202411

57605BMEMBER SUB-ASSY, REAR FLOOR CROSS, NO.1

main57605-02331iZVG10..TWP202010-202410

main57605-02361iZVG10..BZP202501

main57605-0A030iZSG10..THP202007-202105

main57605-0A031iZSG10..THP..(GEN,PH,TH,VN)202105-202402

main57605-0A041iZSG10..TWP202010-202410

main57605-0A050iMXGA10202501

main57605-0A101iZSG10..SAP202110-202411

main57605-0A111iZVG10..SA202110-202411

main57605-0A120iZSG10..E..MA202112-202410

main57605-0A130iZVG10..MA202112-202410

main57605-F4040iZVG10..THP202007-202105

main57605-F4041iZVG10..MA202105-202111

57606CMEMBER SUB-ASSY, REAR FLOOR CROSS, NO.2

main57606-0A060iMXGA10202201-202403

main57606-0A070iZVG10..BZP202103-202112

main57606-0A080iZSG10..MA202007-202111

main57606-0A090iZVG10..E..PH;ZVG10..THP..(GEN,IDN,TH,VN)202007-202402

main57606-0A100iZSG10..TWP202010-202410

main57606-0A110iZVG10..TWP202410

main57606-0A120iZSG10..SAP202411

main57606-0A130iZVG10..SA202411

main57606-0A140iZSG10..G..MA202112-202411

main57606-0A150iZVG10..MA202112-202410

57607AMEMBER SUB-ASSY, REAR FLOOR CROSS, NO.3

main57607-0A010iZVG10..MA202007-202111

main57607-0A011iZVG10..MAP,THP202405

main57607-0A020iZVG10..TWP202010-202410

main57607-0A021iZVG10..TWP202410

main57607-0A030iZVG10..BZP202201-202403

main57607-0A040iZVG10..SA202110-202411

9046709075

main90467-09075

90467T0005

main90467-T0005

39 parts on this diagram · 4 diagrams in section
