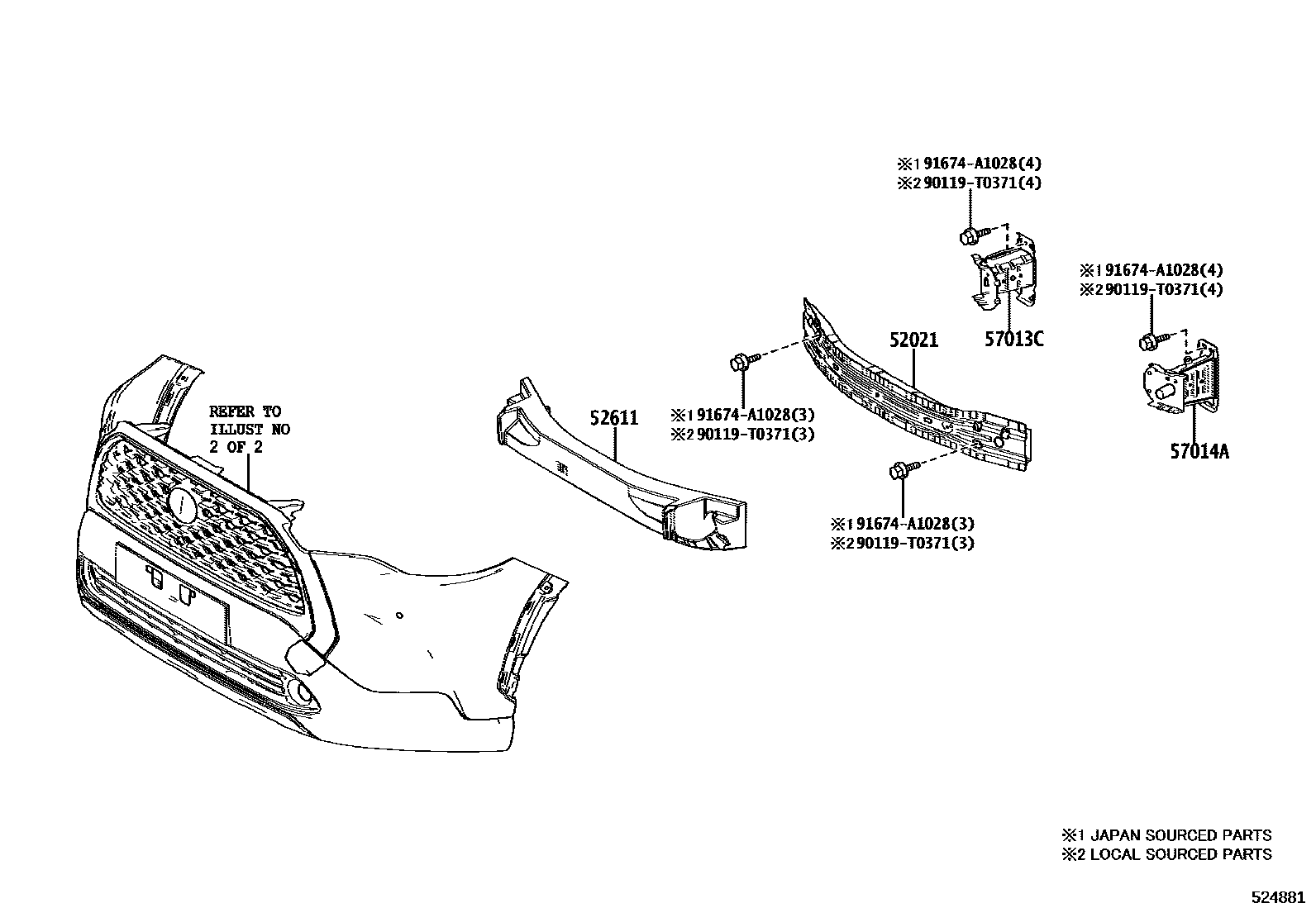

FRONT BUMPER & BUMPER STAY

0001 1 0002 1GR SPORT 0003 1 0007 1 0011 1GR SPORT

52021REINFORCEMENT SUB-ASSY, FRONT BUMPER

main52021-02260iMXGA10,ZVG10..BZP202201-202403

main52021-02320iZSG10..IDN202007-202212

main52021-02330iZSG10,ZVG10..TWP202410

main52021-0A040iZSG10,ZVG10..SAP202411

52611ABSORBER, FRONT BUMPER ENERGY

main52611-0A010iZSG10..VN;ZSG10..RHD..THP;ZVG10..THP..(E,G);ZSG10..LHD..E..GEN202401

main52611-0A020iZSG10,ZVG10..TWP..(E,G,J,N)202410

main52611-0A030iMXGA10,ZVG10..BZP202404-202412

main52611-0A070iZSG10,ZVG10..SAP; ZSG10..LHD..SAP..G;ZSG10,ZVG10..SAP..E202110-202411

GR SPORT

main52611-0A080iZSG10,ZVG10..MA; ZSG10..E..MA202112-202411

GR SPORT

main52611-YY020iZSG10,ZVG10..L,M202108-202410

57013CBRACKET SUB-ASSY, FRONT SIDE MEMBER, RH

main57013-02210iZSG10..IDN202007-202212

main57013-02220iZSG10,ZVG10..TWP202010-202410

main57013-02240iMXGA10,ZVG10..BZP202201-202403

main57013-0A040iZSG10,ZVG10..SAP202411

main57013-0A050iZSG10,ZVG10..MA202411

57014ABRACKET SUB-ASSY, FRONT SIDE MEMBER, LH

main57014-02210iZSG10..VN;ZVG10..THP..(E,G);ZSG10..LHD..E..GEN;ZSG10..RHD..THP..GEN202401

main57014-02220iZSG10,ZVG10..TWP202410

main57014-02240iMXGA10,ZVG10..BZP202103-202112

main57014-0A060iZSG10,ZVG10..SAP202110-202411

main57014-0A070iZSG10,ZVG10..E..MA202112-202410

90119T0371

main90119-T0371

91674A1028

main91674-A1028

6 parts on this diagram · 5 diagrams in section
