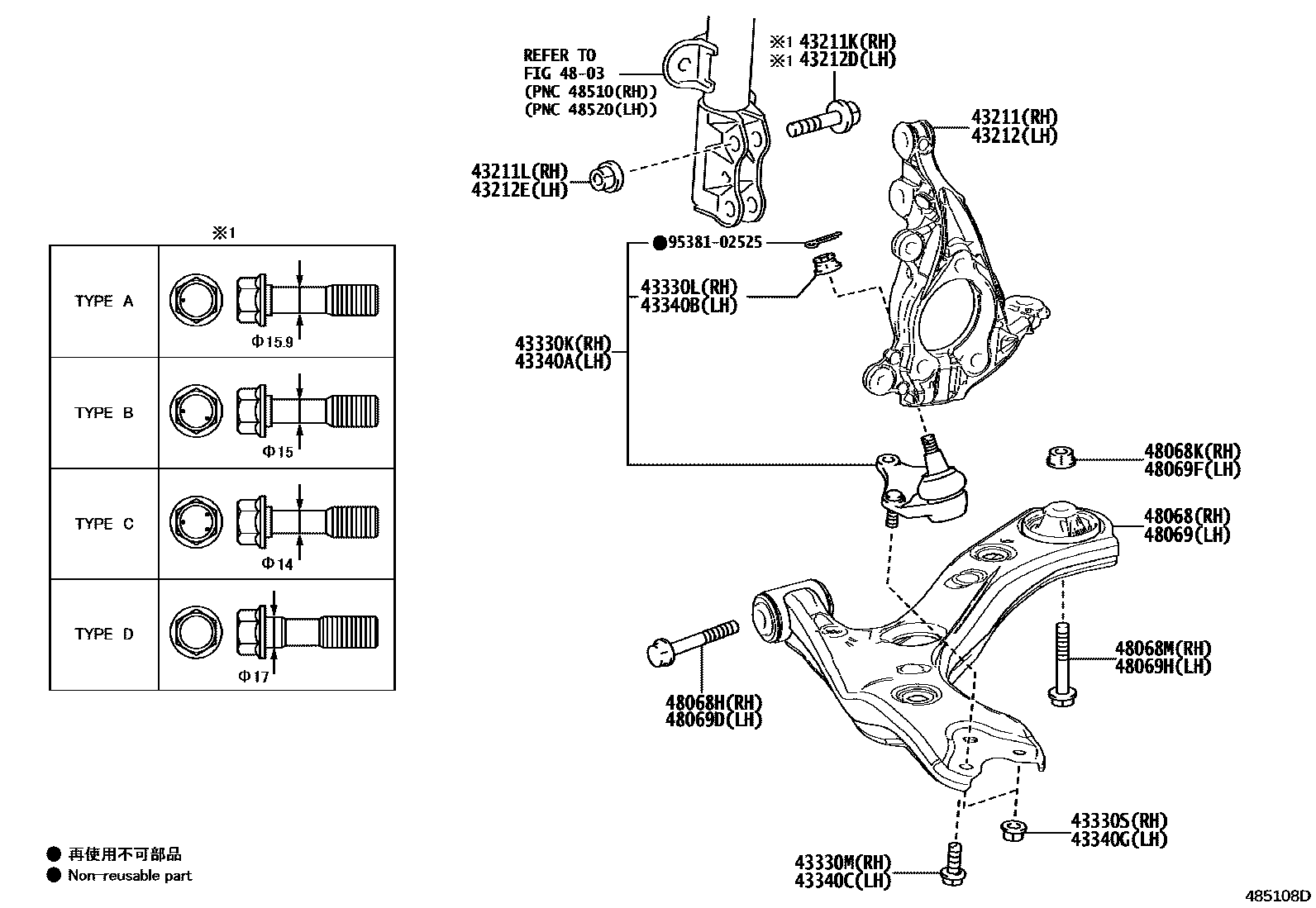

FRONT AXLE ARM & STEERING KNUCKLE

43211KNUCKLE, STEERING, RH

main43211-0A030iZSG10,ZVG10..TAIW202010-202410

main43211-0A040iMXGA10,ZVG10..BZP202103-202412

main43211-0A050iZSG10,ZVG10..GCC202010-202410

main43211-0A070iZSG10,ZVG10..SAP202110-202411

main43211-F4020iZSG10..IDN202007-202512

43211KBOLT (FOR STEERING KNUCKLE RH)

main90105-17009iZSG10,ZVG10..MA202007-202512

OD=15.9,TYPE A:REFER ILLUST.

main90105-17010iZSG10..MAP..G;ZSG10,ZVG10..SAP202007-202512

OD=15,TYPE B:REFER ILLUST.

main90105-17011iZSG10..TWP..G;ZVG10..MAP,TWP;ZSG10..(MAP,TWP)..(E,J,M,N)202007-202512

OD=14,TYPE C:REFER ILLUST.

main90105-17021iZSG10..TWP..G;ZVG10..MAP,TWP;ZSG10..(MAP,TWP)..(E,J,M,N)202007-202512

OD=17,TYPE D:REFER ILLUST.

main90105-17021iMXGA10,ZVG10..BZP202103-202412

OD=17

main90105-T0186iMXGA10,ZVG10..BZP202404-202412

*12-1.25PX29.5-23

43211LNUT (FOR STEERING KNUCKLE RH)

main90178-17002iMXGA10,ZVG10..BZP202007-202512

43212KNUCKLE, STEERING, LH

main43212-0A030iZSG10,ZVG10..TAIW202010-202410

main43212-0A040iMXGA10,ZVG10..BZP202103-202412

main43212-0A050iZSG10,ZVG10..GCC202010-202410

main43212-0A070iZSG10,ZVG10..SAP202110-202411

main43212-F4020iZSG10..LHD..E..GEN;ZSG10..RHD..THP..GEN;ZSG10..(E,N)..(MA,VN);ZVG10..(MAP,THP)..(E,G,R)202007-202512

43212DBOLT (FOR STEERING KNUCKLE LH)

main90105-17009iZSG10..IDN202007-202512

OD=15.9,TYPE A:REFER ILLUST.

main90105-17010iZSG10..TWP..G;ZVG10..MAP,TWP;ZSG10..(MAP,TWP)..(E,J,M,N)202007-202512

OD=15,TYPE B:REFER ILLUST.

main90105-17011iMXGA10,ZVG10..BZP202007-202512

OD=14,TYPE C:REFER ILLUST.

main90105-17021iZSG10..IDN202007-202512

OD=17,TYPE D:REFER ILLUST.

main90105-17021iZVG10..SA;ZSG10..SAP..E;ZSG10..(G,N)..SA;ZSG10..LHD..(G,N)..GEN202103-202412

OD=17

main90105-T0186iMXGA10,ZVG10..BZP202404-202412

*12-1.25PX29.5-23

43212ENUT (FOR STEERING KNUCKLE LH)

main90178-17002iZSG10..E,M;ZSG10..J..GCC;ZVG10..TWP..N;ZSG10..LHD..SAP..N;ZSG10..(G,N)..(SA,TAIW,VN);ZSG10..RHD..THP..(G,N)..GEN;ZSG10..LHD..(SAP,TWP)..G..(GCC,GEN);ZVG10..(MAP,SAP202007-202512

43330KJOINT ASSY, LOWER BALL, FRONT RH

main43330-09631iZSG10,ZVG10..SAP202110-202411

main43330-09A40iZSG10..TWP..G;ZVG10..TWP..N;ZSG10..RHD..THP..GEN;ZSG10..(E,M,N)..(MA,TAIW,VN);ZVG10..(MAP,THP,TWP)..(E,G,L,M,R);ZSG10..LHD..(THP,TWP)..(E,J)..(GCC,GEN)202007-202512

main43330-09B70iMXGA10,ZVG10..BZP202103-202412

43330LNUT, CASTLE (FOR FRONT LOWER BALL JOINT RH)

main90171-14003iMXGA10,ZVG10..BZP202110-202411

(J)

main90171-14003iMXGA10,ZVG10..BZP202010-202412

main90171-T0007iZSG10..MAP..G202007-202411

main90171-T0007iZSG10,ZVG10..SAP202110-202512

(L)

43330MBOLT (FOR FRONT LOWER BALL JOINT RH)

main90105-12407iZVG10..TWP;ZSG10..J..GCC;ZSG10..N..TAIW;ZSG10..TWP..(G,M)202010-202412

main90105-12407iZSG10..MAP..G;ZSG10,ZVG10..SAP202007-202512

(J)

main90105-T0388iZSG10,ZVG10..MA202007-202512

(L)

43330SNUT (FOR FRONT LOWER BALL JOINT RH)

main90178-12019iZSG10,ZVG10..TWP202010-202412

main90178-12019iMXGA10,ZVG10..BZP202007-202512

(J)

main90178-T0110iZSG10..MAP..G;ZSG10,ZVG10..SAP202007-202512

(L)

43340AJOINT ASSY, LOWER BALL, FRONT LH

main43330-09631iZSG10,ZVG10..SAP202110-202411

main43330-09A40iZSG10,ZVG10..MA202007-202512

main43330-09B70iMXGA10,ZVG10..BZP202103-202412

43340BNUT, CASTLE (FOR FRONT LOWER BALL JOINT LH)

main90171-14003iMXGA10,ZVG10..BZP202010-202412

main90171-14003iMXGA10,ZVG10..BZP202110-202411

(J)

main90171-T0007iZSG10..E;ZSG10..(G,N)..(SA,VN);ZSG10..LHD..SAP..(G,N);ZSG10..RHD..THP..(G,N)..GEN;ZVG10..(MAP,SAP,THP)..(E,G,R)202110-202512

(L)

main90171-T0007iZVG10..E..PH;ZSG10..THP..(GEN,PH,TH,VN);ZVG10..THP..(GEN,IDN,TH,VN)202007-202411

43340CBOLT (FOR FRONT LOWER BALL JOINT LH)

main90105-12407iZVG10..TWP;ZSG10..J..GCC;ZSG10..N..TAIW;ZSG10..TWP..(G,M)202010-202412

main90105-12407iMXGA10,ZVG10..BZP202007-202512

(J)

main90105-T0388iZSG10..IDN202007-202512

(L)

43340GNUT (FOR FRONT LOWER BALL JOINT LH)

main90178-12019iZSG10,ZVG10..MA202007-202512

(J)

main90178-12019iMXGA10,ZVG10..BZP202010-202412

main90178-T0110iZSG10..MAP..G;ZSG10,ZVG10..SAP202007-202512

(L)

4803FRONT SPRING & SHOCK ABSORBER

→ Go to FIG 48-03

48068ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 RH

main48068-0A010iZSG10,ZVG10..TWP202010-202410

main48068-0A020iMXGA10,ZVG10..BZP202103-202412

main48068-0A040iZSG10,ZVG10..SAP202110-202411

main48068-F4020iZSG10,ZVG10..MA202007-202512

48068HBOLT(FOR FRONT SUSPENSION LOWER ARM NO.1 RH)

main90105-16091iMXGA10,ZVG10..BZP202010-202412

main90105-16091iMXGA10,ZVG10..BZP202007-202512

(J)

main90105-T0382iZSG10..TH202007-202512

(L)

48068KNUT(FOR FRONT SUSPENSION LOWER ARM NO.2 RH)

main90178-T0048iZVG10..E..PH;ZSG10..THP..(GEN,PH,TH,VN);ZVG10..THP..(GEN,IDN,TH,VN)202007-202512

(L)

main90179-14068iZSG10..MAP..G;ZSG10,ZVG10..SAP202007-202512

(J)

main90179-14068iMXGA10,ZVG10..BZP202010-202412

48068MBOLT(FOR FRONT SUSPENSION LOWER ARM NO.2 RH)

main90119-14180iZVG10..E..PH;ZSG10..THP..(GEN,PH,TH,VN);ZVG10..THP..(GEN,IDN,TH,VN)202007-202512

(J)

main90119-14180iMXGA10,ZVG10..BZP202010-202412

main90119-T0584iZSG10..MAP..G;ZSG10,ZVG10..SAP202007-202512

(L)

48069ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 LH

main48069-0A010iZSG10,ZVG10..TWP202010-202410

main48069-0A020iMXGA10,ZVG10..BZP202103-202412

main48069-0A040iZSG10,ZVG10..SAP202110-202411

main48069-F4020iZSG10,ZVG10..MAP..E202007-202512

48069DBOLT(FOR FRONT SUSPENSION LOWER ARM NO.1 LH)

main90105-16091iZVG10..E..PH;ZSG10..THP..(GEN,PH,TH,VN);ZVG10..THP..(GEN,IDN,TH,VN)202007-202512

(J)

main90105-16091iMXGA10,ZVG10..BZP202010-202412

main90105-T0382iZSG10..MAP..G;ZSG10,ZVG10..SAP202007-202512

(L)

48069FNUT(FOR FRONT SUSPENSION LOWER ARM NO.2 LH)

main90178-T0048iZVG10..E..PH;ZSG10..THP..(GEN,PH,TH,VN);ZVG10..THP..(GEN,IDN,TH,VN)202007-202512

(L)

main90179-14068iZSG10,ZVG10..TWP202010-202412

main90179-14068iZSG10..MAP..G;ZSG10,ZVG10..SAP202007-202512

(J)

48069HBOLT(FOR FRONT SUSPENSION LOWER ARM NO.2 LH)

main90119-14180iZVG10..TWP;ZSG10..J..GCC;ZSG10..N..TAIW;ZSG10..TWP..(G,M)202010-202412

main90119-14180iMXGA10,ZVG10..BZP202007-202512

(J)

main90119-T0584iZSG10..IDN202007-202512

(L)

9538102525

main95381-02525

24 parts on this diagram · 1 diagram in section
