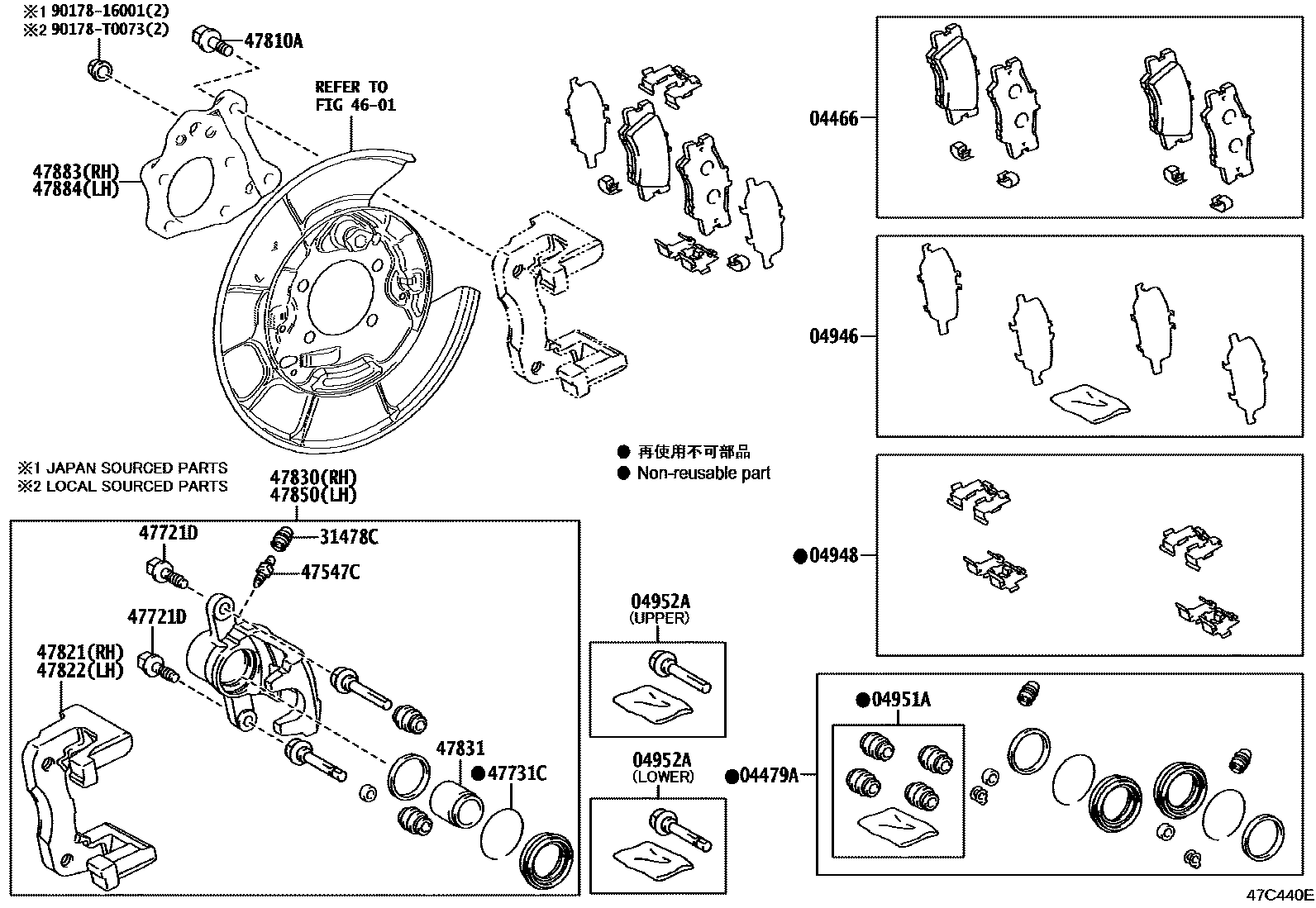

REAR DISC BRAKE CALIPER & DUST COVER

0001 1W/O(EPB) 0002 1W(EPB)

04466PAD KIT, DISC BRAKE, REAR

main04466-0A010iMXGA10,ZVG10..BZP202007-202411

MARK ADVICS VC107

main04466-0A020iZSG10..E,M;ZSG10..J..GCC;ZVG10..TWP..N;ZSG10..LHD..SAP..N;ZSG10..(G,N)..(SA,TAIW,VN);ZSG10..RHD..THP..(G,N)..GEN;ZSG10..LHD..(SAP,TWP)..G..(GCC,GEN);ZVG10..(MAP,SAP202401-202512

MARK ADVICS VC123

04479ACYLINDER KIT, DISC BRAKE, REAR

main04479-0A010iMXGA10,ZVG10..BZP202007-202411

main04479-0A020iMXGA10;ZSG10..VN;ZSG10..RHD..THP;ZSG10..LHD..E..GEN;ZVG10..(BZP,THP)..(E,G)202401-202410

sub04479-0A021

main04479-0A021iMXGA10,ZVG10;ZSG10..THP,TWP;ZSG10..(G,N)..SA;ZSG10..(MAP,SAP)..E;ZSG10..LHD..(G,N)..GEN202410

04946SHIM KIT, ANTI SQUEAL(FOR REAR DISC BRAKE)

main04946-0A010iZSG10..MAP..G;ZSG10,ZVG10..SAP202007-202411

main04946-0A030iMXGA10,ZVG10..BZP202401-202512

04948FITTING KIT, DISC BRAKE, REAR

main04948-0A010iZSG10,ZVG10..MA202007-202411

main04948-12071iMXGA10,ZVG10..BZP202401-202512

04951ABUSH KIT, DISC BRAKE, REAR

main04951-0K040iMXGA10,ZVG10..BZP202007-202411

04952APIN KIT, REAR DISC BRAKE CYLINDER SLIDE

main04952-0K080iZSG10,ZVG10..MA202007-202411

UPPER SIDE

main04952-0K090iZVG10..E..PH;ZSG10..THP..(GEN,PH,TH,VN);ZVG10..THP..(GEN,IDN,TH,VN)202007-202411

LOWER SIDE

31478CCAP, BLEEDER PLUG(FOR REAR DISC BRAKE)

main31478-06010iZSG10,ZVG10..MA202007-202411

main31478-0D040iMXGA10,ZVG10..BZP202401-202512

4601

47547CPLUG, BLEEDER(FOR REAR DISC BRAKE)

main47547-20010iZSG10..E,M;ZSG10..J..GCC;ZVG10..TWP..N;ZSG10..LHD..SAP..N;ZSG10..(G,N)..(SA,TAIW,VN);ZSG10..RHD..THP..(G,N)..GEN;ZSG10..LHD..(SAP,TWP)..G..(GCC,GEN);ZVG10..(MAP,SAP202007-202512

47721DBOLT(FOR REAR DISC BRAKE CYLINDER MOUTING)

main90015-AA603iZSG10..TH202401-202512

*8-1.00PX23-12.5

sub90016-AA614

main90016-AA603iZVG10..E..PH;ZSG10..THP..(GEN,PH,TH,VN);ZVG10..THP..(GEN,IDN,TH,VN)202007-202411

*8-1.00PX23-15

47731CRING, SET(FOR REAR DISC BRAKE PISTON)

main90016-AU501iMXGA10,ZVG10..BZP202007-202411

47810ABOLT, HEXAGON(FOR REAR CALIPER)

main90105-12208iZSG10..TH202401-202512

(J)

main90105-T0186iMXGA10,ZVG10..BZP202007-202411

main90105-T0186iMXGA10,ZVG10..BZP202401-202512

(L)

47821MOUNTING, REAR DISC BRAKE CYLINDER, RH

main47821-0A010iZSG10,ZVG10..MA202007-202411

main47821-0A030iMXGA10,ZVG10..BZP202401-202512

47822MOUNTING, REAR DISC BRAKE CYLINDER, LH

main47822-0A010iZSG10..IDN202007-202411

main47822-0A030iMXGA10,ZVG10..BZP202401-202512

47830CYLINDER ASSY, DISC BRAKE, REAR RH

main47830-0A010iZSG10..TWP..G;ZVG10..MAP,TWP;ZSG10..(MAP,TWP)..(E,J,M,N)202007-202411

main47830-0A030iZSG10..TH202401-202512

47831PISTON, REAR DISC BRAKE

main47831-06090iMXGA10,ZVG10..BZP202007-202411

main47831-0A030iZSG10..E,M;ZSG10..(G,N)..SA;ZVG10..MAP,SAP,THP,TWP;ZSG10..LHD..(G,N)..GEN;ZSG10..(THP,TWP)..(G,J,N)..(GCC,GEN,TAIW,VN)202410-202512

main47831-48130iMXGA10;ZSG10..VN;ZSG10..RHD..THP;ZSG10..LHD..E..GEN;ZVG10..(BZP,THP)..(E,G)202401-202410

47850CYLINDER ASSY, DISC BRAKE, REAR LH

main47850-0A010iZSG10,ZVG10..MA202007-202411

main47850-0A030iZSG10..E,M;ZSG10..J..GCC;ZVG10..TWP..N;ZSG10..LHD..SAP..N;ZSG10..(G,N)..(SA,TAIW,VN);ZSG10..RHD..THP..(G,N)..GEN;ZSG10..LHD..(SAP,TWP)..G..(GCC,GEN);ZVG10..(MAP,SAP202401-202512

47883BRACKET, CALIPER SUPPORT, REAR RH

main47883-0A010iZSG10,ZVG10..MA202007-202411

main47883-0A020iZSG10,ZVG10..TWP202010-202410

main47883-0A030iMXGA10,ZVG10..BZP202103-202403

main47883-0A070iZSG10,ZVG10..SAP202110-202411

main47883-0A080iZSG10..LHD..E..GEN;ZSG10..RHD..THP..GEN;ZSG10..(E,N)..(MA,VN);ZVG10..(MAP,THP)..(E,G,R)202401-202512

main47883-0A090iZSG10,ZVG10..TWP202410

main47883-0A100iMXGA10,ZVG10..BZP202404-202412

main47883-0A110iZSG10,ZVG10..SAP202411

47884BRACKET, CALIPER SUPPORT, REAR LH

main47884-0A010iZSG10,ZVG10..MAP..E202007-202411

main47884-0A020iZSG10,ZVG10..TWP202010-202410

main47884-0A030iMXGA10,ZVG10..BZP202103-202403

main47884-0A070iZSG10,ZVG10..SAP202110-202411

main47884-0A080iZSG10..LHD..E..GEN;ZSG10..RHD..THP..GEN;ZSG10..(E,N)..(MA,VN);ZVG10..(MAP,THP)..(E,G,R)202401-202512

main47884-0A090iZSG10,ZVG10..TWP202410

main47884-0A100iMXGA10,ZVG10..BZP202404-202412

main47884-0A110iZSG10,ZVG10..SAP202411

9017816001

main90178-16001

90178T0073

main90178-T0073

21 parts on this diagram · 2 diagrams in section
