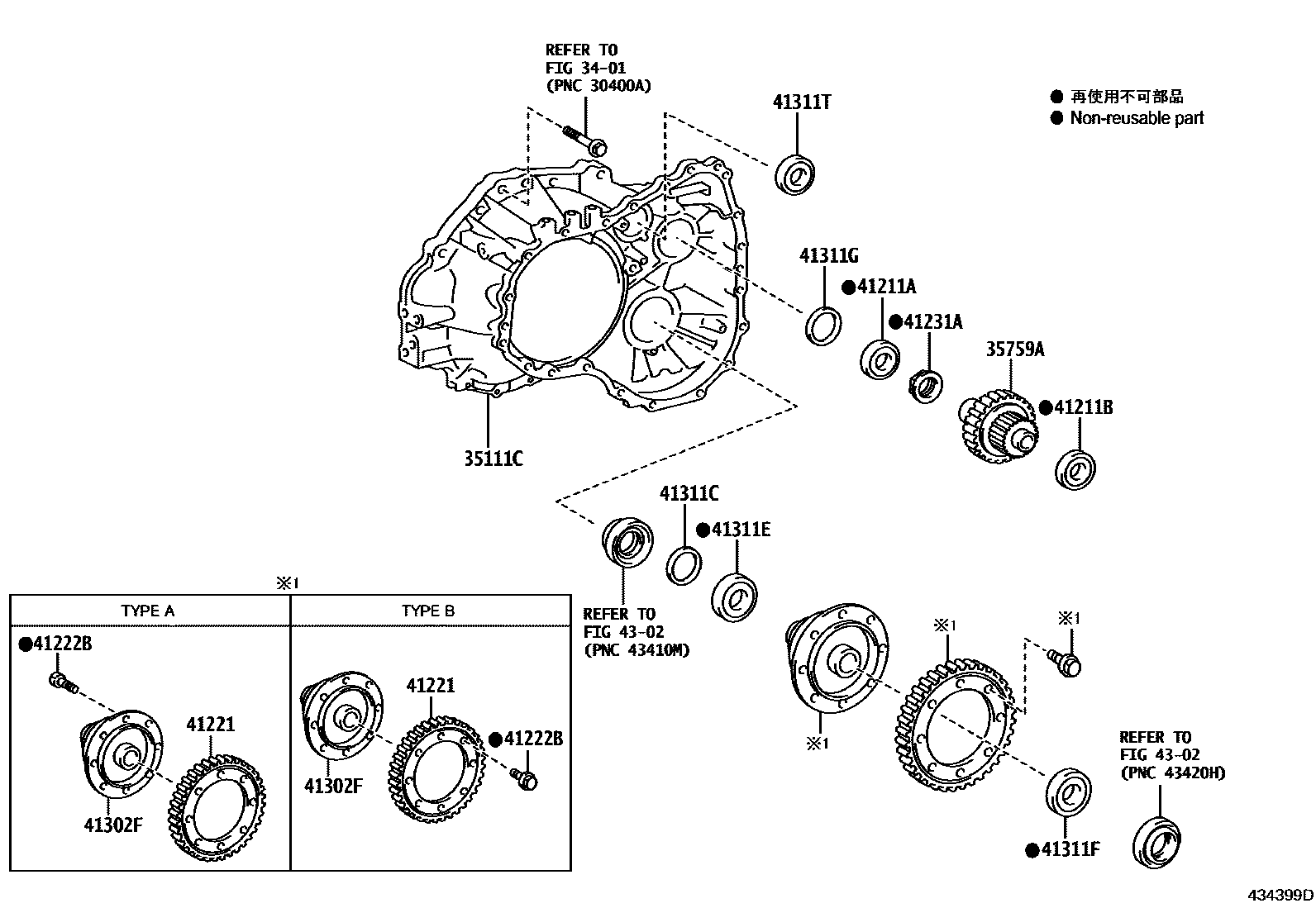

FRONT AXLE HOUSING & DIFFERENTIAL
3401TRANSAXLE ASSY(CVT)
35111CHOUSING, TRANSAXLE
35759AGEAR, REDUCTION DRIVEN
41211ABEARING, TAPERED ROLLER (FOR FRONT DRIVE PINION FRONT)
41211BBEARING, TAPERED ROLLER (FOR FRONT DRIVE PINION REAR)
41221GEAR, FRONT DIFFERENTIAL RING
TYPE A:REFER ILLUST.
TYPE B:REFER ILLUST.
41222BBOLT (FOR FRONT DIFFERENTIAL RING GEAR SET)
41231ANUT, DRIVE PINION LOCK
41302FCASE SUB-ASSY, FRONT DIFFERENTIAL
TYPE A:REFER ILLUST.
TYPE B:REFER ILLUST.
41311CSHIM (FOR FRONT DIFFERENTIAL CASE REAR)
main90564-48001iZSG10..E,M;ZSG10..J..GCC;ZSG10..LHD..SAP..N;ZSG10..(G,N)..(SA,TAIW,VN);ZSG10..RHD..THP..(G,N)..GEN;ZSG10..LHD..(SAP,TWP)..G..(GCC,GEN)202401
T=2.03,MARK A
T=2.06,MARK B
main90564-48003iZSG10..E,M;ZSG10..J..GCC;ZSG10..LHD..SAP..N;ZSG10..(G,N)..(SA,TAIW,VN);ZSG10..RHD..THP..(G,N)..GEN;ZSG10..LHD..(SAP,TWP)..G..(GCC,GEN)202401
T=2.09,MARK C
T=2.12,MARK D
T=2.15,MARK E
T=2.18,MARK F
T=2.21,MARK G
T=2.24,MARK H
T=2.27,MARK J
T=2.30,MARK K
main90564-48011iZSG10..E,M;ZSG10..J..GCC;ZSG10..LHD..SAP..N;ZSG10..(G,N)..(SA,TAIW,VN);ZSG10..RHD..THP..(G,N)..GEN;ZSG10..LHD..(SAP,TWP)..G..(GCC,GEN)202401
T=2.33,MARK L
T=2.36,MARK M
T=2.39,MARK N
T=2.42,MARK P
T=2.45,MARK Q
T=2.48,MARK R
T=2.51,MARK S
T=2.54,MARK T
T=2.57,MARK U
T=2.60,MARK V
T=1.76,MARK A
T=1.79,MARK B
T=1.82,MARK C
T=1.85,MARK D
T=1.88,MARK E
T=1.91,MARK F
T=1.94,MARK G
T=1.97,MARK H
T=2.00,MARK J
T=2.03,MARK K
T=2.06,MARK L
T=2.09,MARK M
T=2.12,MARK N
T=2.15,MARK P
T=2.18,MARK Q
T=2.21,MARK R
T=2.24,MARK S
T=2.27,MARK T
T=2.30,MARK U
T=2.33,MARK V
41311EBEARING, TAPERED ROLLER (FOR FRONT DIFFERENTIAL CASE FRONT)
41311FBEARING, TAPERED ROLLER (FOR FRONT DIFFERENTIAL CASE REAR)
41311GWASHER, PLATE (FOR FRONT DIFFERENTIAL CASE FRONT)
T=1.59, MARK A
T=1.62, MARK B
T=1.65, MARK C
T=1.68, MARK D
T=1.71, MARK E
T=1.74, MARK F
T=1.77, MARK G
T=1.80, MARK H
T=1.83, MARK J
T=1.86, MARK K
T=1.89, MARK L
T=1.92, MARK M
T=1.95, MARK N
T=1.98, MARK P
T=2.01, MARK Q
T=2.04, MARK R
T=2.07, MARK S
T=2.10, MARK T
T=2.13, MARK U
T=2.16, MARK V
T=2.19, MARK W
T=2.22, MARK X
T=2.25, MARK Y
main90564-47001iZSG10..E,M;ZSG10..J..GCC;ZSG10..LHD..SAP..N;ZSG10..(G,N)..(SA,TAIW,VN);ZSG10..RHD..THP..(G,N)..GEN;ZSG10..LHD..(SAP,TWP)..G..(GCC,GEN)202401
T=1.73,MARK A
T=1.76,MARK B
T=1.79,MARK C
T=1.82,MARK D
T=1.85,MARK E
T=1.88,MARK F
T=1.91,MARK G
T=1.94,MARK H
T=1.97,MARK J
T=2.00,MARK K
T=2.03,MARK L
T=2.06,MARK M
T=2.09,MARK N
T=2.12,MARK P
T=2.15,MARK Q
T=2.18,MARK S
T=2.21,MARK T
main90564-47018iZSG10..E,M;ZSG10..J..GCC;ZSG10..LHD..SAP..N;ZSG10..(G,N)..(SA,TAIW,VN);ZSG10..RHD..THP..(G,N)..GEN;ZSG10..LHD..(SAP,TWP)..G..(GCC,GEN)202401
T=2.24,MARK U
T=2.27,MARK V
41311TBEARING, CYLINDRICAL ROLLER(FOR SECONDARY SHEAVE SHAFT)
4302FRONT DRIVE SHAFT
