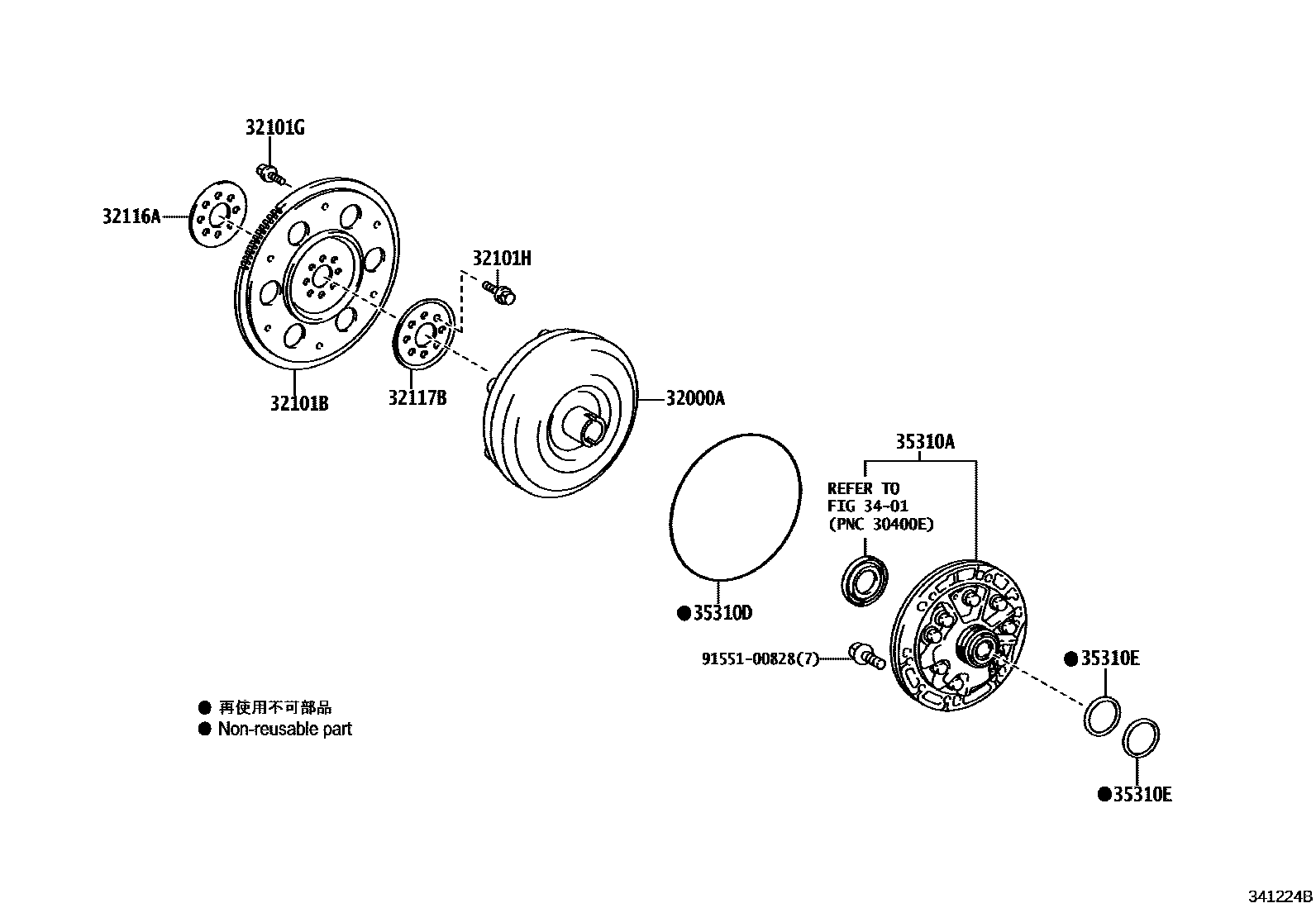

TORQUE CONVERTER, FRONT OIL PUMP(CVT)

0001 1K313 0002 1K120 0003 1K121

32000ACONVERTER ASSY, TORQUE

main32000-12500iZSG10..RHD..THP;ZSG10..LHD..E..GEN;ZSG10..LHD..SAP..(G,N);ZSG10..(E,G,J)..(GCC,VN);ZSG10..(G,N)..(SA,TAIW,VN);ZSG10..(MAP,SAP,TWP)..(E,M)202007-202503

main32000-12520iMXGA10202103-202412

32101BGEAR SUB-ASSY, DRIVE PLATE & RING

main32101-02060iZSG10..MAP..G202007-202512

(L)

main32101-12100iZSG10..SAP202110-202411

main32101-12100iZSG10..MA202007-202512

(J)

main32101-12120iMXGA10202103-202412

32101GBOLT(FOR DRIVE PLATE & TORQUE CONVERTER SETTING)

main90109-08113iZSG10..THP..(GEN,PH,TH,VN)202007-202512

*8-1.25PX12-8.4,BLACK

main90109-09001iMXGA10202103-202412

*9-1.25PX12.4-7.3,BLACK

main90119-08498iZSG10..TWP..G;ZSG10..(MAP,TWP)..(E,J,M,N)202007-202512

*8-1.25PX12-8,SILVER WHITE

main90119-09025iMXGA10202103-202412

*9-1.25PX12.4-8.4,SILVER WHITE

32101HBOLT, HEXAGON(FOR DRIVE PLATE SETTING)

main90105-10048iZSG10..SAP;ZSG10..MAP..G202007-202512

main90105-12404iMXGA10202103-202412

32116ASPACER, DRIVE PLATE, FRONT

main32116-12030iZSG10..E,M;ZSG10..J..GCC;ZSG10..LHD..SAP..N;ZSG10..(G,N)..(SA,TAIW,VN);ZSG10..RHD..THP..(G,N)..GEN;ZSG10..LHD..(SAP,TWP)..G..(GCC,GEN)202007-202512

32117BSPACER, DRIVE PLATE, REAR

main32117-12040iZSG10..E,M;ZSG10..J..GCC;ZSG10..LHD..SAP..N;ZSG10..(G,N)..(SA,TAIW,VN);ZSG10..RHD..THP..(G,N)..GEN;ZSG10..LHD..(SAP,TWP)..G..(GCC,GEN)202007-202512

main32117-33010iMXGA10202103-202412

3401

35310APUMP ASSY, FRONT OIL

main35310-12170iZSG10..IDN202007-202512

main35310-12200iMXGA10202103-202203

TYPE A:REFER ILLUST.

main35310-28050iMXGA10202106-202412

TYPE B:REFER ILLUST.

main35310-42010iMXGA10202501

35310DRING, O (FOR FRONT OIL PUMP)

main90301-99202iZSG10..SAP;ZSG10..MAP..G202007-202512

35310ESEAL, TYPE T OIL (FOR FRONT OIL PUMP)

main35617-12031iZSG10..IDN202007-202512

main35617-12060iMXGA10202103-202412

9155100828

main91551-00828

11 parts on this diagram · 3 diagrams in section
