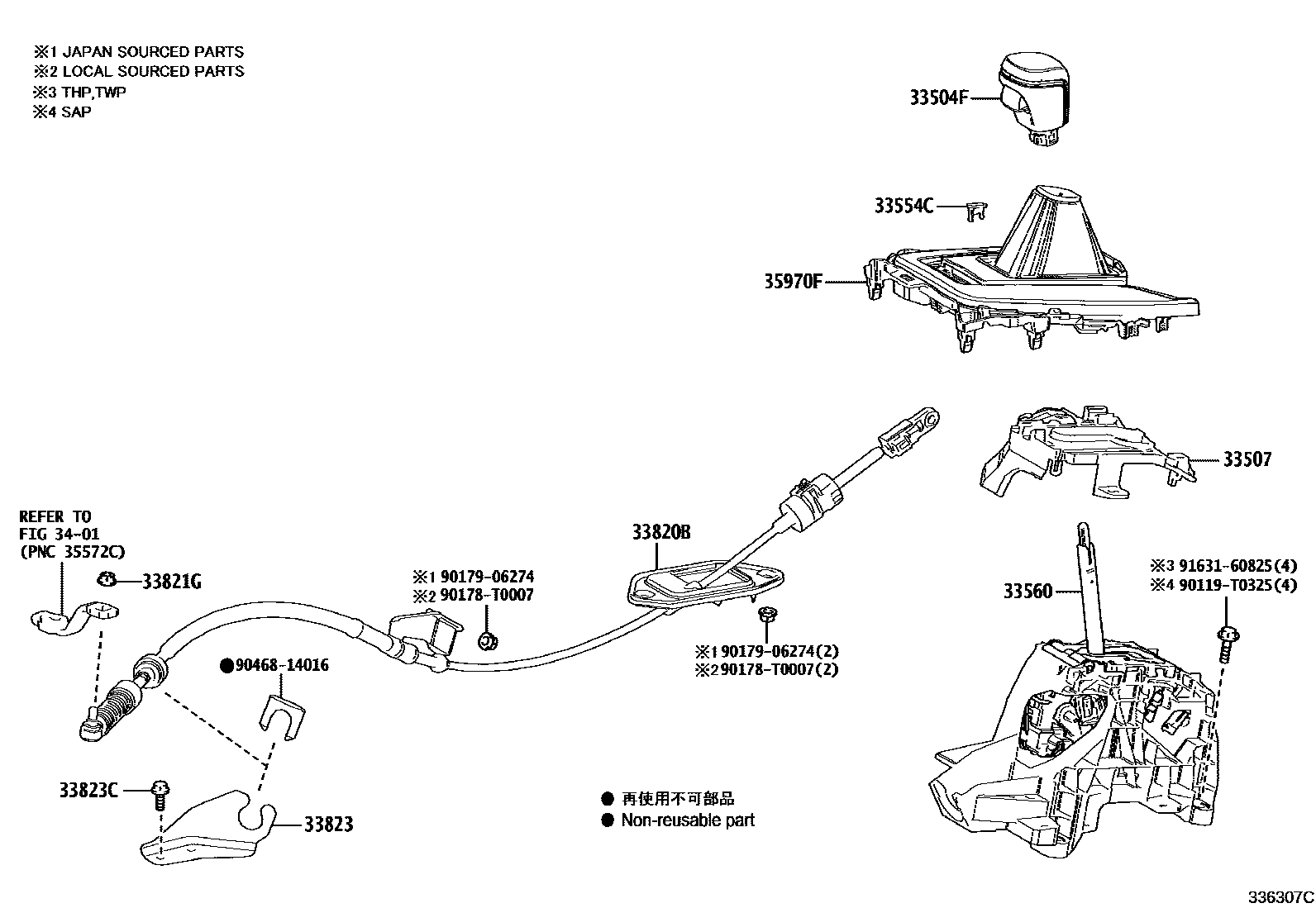

SHIFT LEVER & RETAINER

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1

33504FKNOB SUB-ASSY, SHIFT LEVER

main33504-02730-C0iZSG10..N..SA;ZSG10..LHD..SAP..N202401-202602

BLACK,TRIM2#

main33504-02860-C0iZSG10,ZVG10..MA202007-202111

BLACK,TRIM2#,3#

main33504-10080-C1iZVG10..R202411

BLACK,TRIM2#

main33504-12800-C0iMXGA10..E;ZVG10..E..AGT;ZVG10..BZP..(BZ,GEN); ZVG10..G..AGT;MXGA10..G..(BZ,GEN)202103-202112

BLACK,TRIM0#,2#; BLACK,TRIM2#

main33504-33170-C0iMXGA10..N;MXGA10..G..AGT202103-202112

BLACK,TRIM2#

33507BRACKET SUB-ASSY, SHIFT LEVER HOUSING

main33507-02040iZSG10..MAP..G;ZSG10,ZVG10..RHD..SAP202007-202411

main33507-02050iZSG10..LHD..SAP202010-202411

main33507-02060iMXGA10,ZVG10..BZP202501-202602

main33507-12030iZSG10..VN;ZVG10..LHD..THP;ZSG10..LHD..E..GEN202401

33554CCOVER, SHIFT LOCK RELEASE BUTTON

main33502-02170iZSG10,ZVG10..TWP202010-202410

main33554-02160iZSG10..LHD..SAP202007-202411

main33554-02170iZSG10..MAP..G;ZSG10,ZVG10..RHD..SAP202007-202411

main33554-02260iMXGA10,ZVG10..BZP202404-202412

33560UNIT ASSY, SHIFT LOCK CONTROL

main33560-02540iZSG10..J..GCC202410

main33560-02550iZSG10..LHD..(SAP,TWP)..(G,M,N)202410

main33560-02570iZVG10..TWP202010-202410

main33560-02580iMXGA10..G,N;MXGA10..E..(AGT,GEN)202103-202112

main33560-02590iMXGA10..(E,G)..GEN; MXGA10..E..(AGT,BZ)202501

WIRELESS DOOR LOCK-WITH(SMART ENTRY & PANIC BUTTON)

main33560-02600iZVG10..BZP202501

main33560-12650iZSG10..LHD..THP202007-202402

main33560-12670iZVG10..LHD..THP..E202007-202402

main33560-F4070iZSG10..N..SA;ZSG10..RHD..J202110-202411

main33560-F4080iZSG10..IDN202007-202212

main33560-F4090iZVG10..MAP202007-202410

33820BCABLE ASSY, TRANSMISSION CONTROL

main33820-0A050iZVG10..BZP202404-202412

main33820-0A060iMXGA10202404-202412

main33820-0A080iZVG10..TWP202410

main33820-0A090iZSG10..TWP202410

main33820-0A130iZVG10..MA202112-202410

main33820-0A140iZSG10..MA202411

main33820-F4050iZSG10..IDN202007-202212

main33820-F4060iZVG10..E..PH;ZVG10..THP..(GEN,IDN,TH,VN)202007-202402

33821GNUT (FOR TRANSMISSION CONTROL CABLE)

main90178-T0019iZSG10..TH202401-202512

(L)

main94151-80800iZSG10..VN;ZVG10..THP..(E,G);ZSG10..LHD..E..GEN;ZSG10..RHD..THP..GEN202401

(J)

33823BRACKET, TRANSMISSION CONTROL CABLE, NO.1

main33823-02360iZSG10..TWP202010-202410

main33823-02370iZVG10..TWP202410

main33823-0A010iZSG10..SAP202411

main33823-10030iZVG10..E..PH;ZVG10..THP..(GEN,IDN,TH,VN)202007-202402

main33823-12310iMXGA10202404-202412

main33823-F4020iZSG10..IDN202007-202212

33823CBOLT (FOR TRANSMISSION CONTROL CABLE BRACKET)

main90119-08079×2iZSG10..TH202401-202512

(J)

main90119-T0102×2iZSG10..TWP..G;ZVG10..MAP,TWP;ZSG10..(MAP,TWP)..(E,J,M,N)202010-202410

3401TRANSAXLE ASSY(CVT)

→ Go to FIG 34-01

35970FHOUSING ASSY, POSITION INDICATOR

main35970-02180-C1iZSG10..LHD..SAP..G202204-202411

BLACK,TRIM20,3#

main35970-02180-C3iZSG10..LHD..SAP..G202204-202411

BLACK & BLACK & GR RED,TRIM20

main35970-02190-C1iZVG10..G..PH; ZVG10..VN202401

BLACK,TRIM2#; BLACK,TRIM2#,3#

main35970-02200-C1iZSG10..G..SA; ZSG10..N..SA202401-202602

BLACK,TRIM2#; BLACK,TRIM2#,3#

main35970-02200-C3iZSG10..SAP..E202204-202411

BLACK & BLACK & GR RED,TRIM20

main35970-02200-C4iZSG10..E..MA202112-202410

BLACK & SILVER & GR RED,TRIM20

main35970-02210-C1iZVG10..MA202007-202111

BLACK,TRIM2#,3#

main35970-02210-C3iZVG10..E..SA202302-202411

BLACK & GR RED GOSEN Y55,TRIM20

main35970-02210-C5iZVG10..R202411-202601

BLACK/SILVER/GR RED GOSEN,TRIM2#

main35970-02240-C1iMXGA10..E; MXGA10..G,N202201-202403

BLACK,TRIM0#,20; BLACK,TRIM2#

main35970-02240-C2iMXGA10..E202404-202412

BLACK & GR RED,TRIM20

main35970-02250-C1iZVG10..E..AGT;ZVG10..BZP..(BZ,GEN); ZVG10..G..AGT202404-202412

BLACK,TRIM0#,2#; BLACK,TRIM2#

main35970-02360-C1iZSG10..(J,N)..GCC;ZSG10..(G,J,N)..TAIW; ZSG10..G..GCC202010-202410

BLACK/SILVER,TRIM0#,2#,3#; BLACK/SILVER,TRIM2#,3#

main35970-02370-C1iZVG10..E..GCC; ZVG10..E..TAIW;ZVG10..TWP..(G,N)202010-202410

BLACK/SILVER,TRIM0#,2#,3#; BLACK/SILVER,TRIM2#,3#

main35970-02480-C0iZVG10..E..AGT;ZVG10..BZP..(BZ,GEN); ZVG10..G..AGT202501-202602

BLACK/SILVER,TRIM0#,2#; BLACK/SILVER,TRIM2#

main35970-02770-C0iMXGA10..E; MXGA10..G,N202501-202602

BLACK/SILVER,TRIM0#,20; BLACK/SILVER,TRIM2#

main35970-02770-C1iMXGA10..E202501-202602

BLACK/DK.SILVER/GR RED GO,TRIM20

90119T0325

main90119-T0325

90178T0007

main90178-T0007

9017906274

main90179-06274

9046814016

main90468-14016

9163160825

main91631-60825

15 parts on this diagram · 6 diagrams in section
