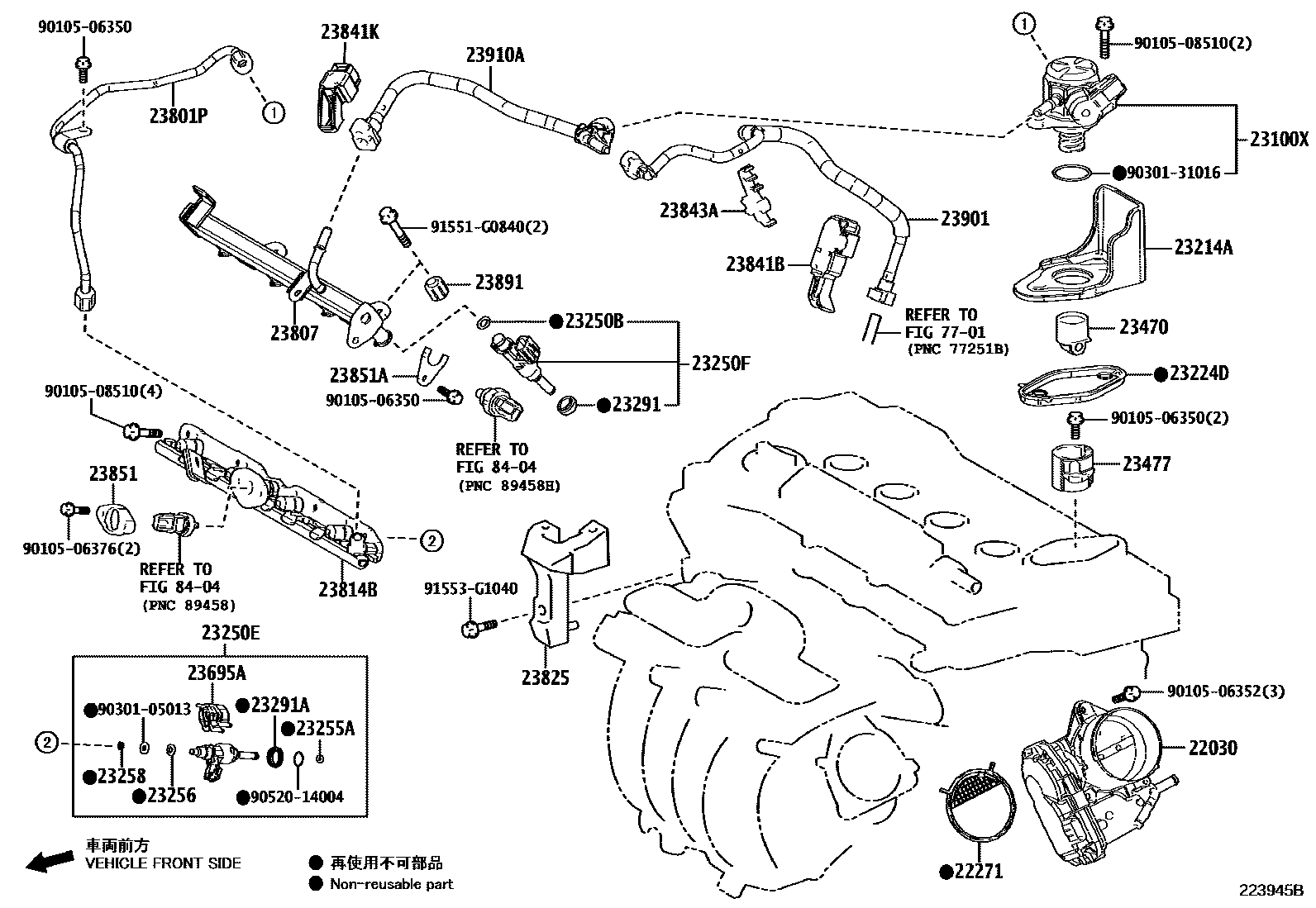

FUEL INJECTION SYSTEM

0001 1 0002 1 0003 1 0004 1 0005 1WITH GLOW PLUG 0006 1

22030BODY ASSY, THROTTLE W/THROTTLE POSITION SENSOR

main22030-24010iM20AFKS..MXGA10202201-202403

22271GASKET, THROTTLE BODY

main22271-0T060i2ZRFBE..ZSG10202401-202512

(L)

main22271-24010iM20AFKS..MXGA10202201-202403

main22271-37020i2ZRFXE..ZVG10..SA202007-202411

main22271-75031i2ZRFE..ZSG10..TWP..G;2ZRFE..ZSG10..(MAP,TWP)..(E,J,M,N)202007-202410

(J)

23100XPUMP ASSY, FUEL (ENGINE ROOM SIDE)

main23101-24060iM20AFKS..MXGA10202103-202112

main23101-24070iM20AFKS..MXGA10..BZ; M20AFKS..MXGA10..G..GEN202501

PARAGUAY SPEC

23214APROTECTOR, FUEL PUMP

main23214-F2010iM20AFKS..MXGA10202501

23224DGASKET, FUEL PUMP SPACER

main23224-25010iM20AFKS..MXGA10202103-202112

main23224-25011iM20AFKS..MXGA10202501

23250INJECTOR ASSY, FUEL

main23209-09130×4i2ZRFE..ZSG10..SAP202110-202411

(L)

main23209-09200×4i2ZRFE..ZSG10..MAP,THP,TWP202007-202411

(L)

main23209-09370×4i2ZRFXE..ZVG10..SA202110-202411

(L)

main23209-09410×4i2ZRFBE..ZSG10202401-202512

(L)

main23209-39145×4i2ZRFE..ZSG10..SAP202411

(J)

main23209-39146×4i2ZRFE..ZSG10..MAP,THP,TWP202007-202411

(J)

main23209-39295×4i2ZRFXE..ZVG10..SA202110-202411

(J)

main23209-39345×4i2ZRFXE..ZVG10..BZ; 2ZRFXE..ZVG10..BZP..GEN202501

PARAGUAY SPEC

main23209-39365×4i2ZRFE..ZSG10..SAP202411

23250BRING, O(FOR FUEL INJECTOR)

main90301-07037×4i2ZRFXE..ZVG10..BZP; M20AFKS..MXGA10202501

main90301-C0072×4iM20AFKS..MXGA10..AGT,GEN202103-202112

(L)

main90301-T0051×4i2ZRFE..ZSG10..MA202007-202111

(L)

23250EINJECTOR ASSY, FUEL(FOR DIRECT)

main23209-24010-01×4iM20AFKS..MXGA10..BZ202103-202104

MARK 1,REFER REPAIR MANUAL

main23209-24010-02×4iM20AFKS..MXGA10..AGT,GEN202501

MARK 2,REFER REPAIR MANUAL

main23209-24010-03×4iM20AFKS..MXGA10..AGT,GEN202404-202412

MARK 3,REFER REPAIR MANUAL

main23209-24010-04×4iM20AFKS..MXGA10..AGT,GEN202201-202403

MARK 4,REFER REPAIR MANUAL

main23209-24010-05×4iM20AFKS..MXGA10..AGT,GEN202201-202403

MARK 5,REFER REPAIR MANUAL

main23209-24010-06×4iM20AFKS..MXGA10..AGT,GEN202201-202403

MARK 6,REFER REPAIR MANUAL

main23209-24010-07×4iM20AFKS..MXGA10..BZ202103-202104

MARK 7,REFER REPAIR MANUAL

main23209-24010-08×4iM20AFKS..MXGA10..AGT,GEN202103-202112

MARK 8,REFER REPAIR MANUAL

main23209-24010-09×4iM20AFKS..MXGA10..AGT,GEN202501

MARK 9,REFER REPAIR MANUAL

main23209-24040-01×4iM20AFKS..MXGA10..BZ; M20AFKS..MXGA10..G..GEN202501

MARK 1,REFER REPAIR MANUAL; PARAGUAY SPEC,MARK 1,REFER REPAIR MANUAL

main23209-24040-02×4iM20AFKS..MXGA10..BZ; M20AFKS..MXGA10..G..GEN202404-202412

MARK 2,REFER REPAIR MANUAL; PARAGUAY SPEC,MARK 2,REFER REPAIR MANUAL

main23209-24040-03×4iM20AFKS..MXGA10..BZ; M20AFKS..MXGA10..G..GEN202404-202412

MARK 3,REFER REPAIR MANUAL; PARAGUAY SPEC,MARK 3,REFER REPAIR MANUAL

main23209-24040-04×4iM20AFKS..MXGA10..BZ; M20AFKS..MXGA10..G..GEN202501

MARK 4,REFER REPAIR MANUAL; PARAGUAY SPEC,MARK 4,REFER REPAIR MANUAL

main23209-24040-05×4iM20AFKS..MXGA10..BZ; M20AFKS..MXGA10..G..GEN202501

MARK 5,REFER REPAIR MANUAL; PARAGUAY SPEC,MARK 5,REFER REPAIR MANUAL

main23209-24040-06×4iM20AFKS..MXGA10..(E,G)..GEN; M20AFKS..MXGA10..BZ202201-202403

MARK 6,REFER REPAIR MANUAL; PARAGUAY SPEC,MARK 6,REFER REPAIR MANUAL

main23209-24040-07×4iM20AFKS..MXGA10..BZ; M20AFKS..MXGA10..GEN202104-202112

MARK 7,REFER REPAIR MANUAL; PARAGUAY SPEC,MARK 7,REFER REPAIR MANUAL

main23209-24040-08×4iM20AFKS..MXGA10..(E,G)..GEN; M20AFKS..MXGA10..BZ202201-202403

MARK 8,REFER REPAIR MANUAL; PARAGUAY SPEC,MARK 8,REFER REPAIR MANUAL

main23209-24040-09×4iM20AFKS..MXGA10..BZ; M20AFKS..MXGA10..G..GEN202501

MARK 9,REFER REPAIR MANUAL; PARAGUAY SPEC,MARK 9,REFER REPAIR MANUAL

23250FINJECTOR ASSY, FUEL(FOR PORT)

main23209-29115×4iM20AFKS..MXGA10..AGT,GEN202404-202412

main23209-29155×4iM20AFKS..MXGA10..(E,G)..GEN; M20AFKS..MXGA10..BZ202201-202403

PARAGUAY SPEC

main23209-29165×4iM20AFKS..MXGA10..AGT,GEN202103-202112

23255ASEAL, FUEL INJECTOR

main23255-25010×4iM20AFKS..MXGA10202404-202412

23256RING, FUEL INJECTOR BACK-UP, NO.1

main23256-25010×4iM20AFKS..MXGA10202201-202403

23258RING, FUEL INJECTOR BACK-UP, NO.3

main23258-24010×4iM20AFKS..MXGA10..BZ; M20AFKS..MXGA10..G..GEN202501

PARAGUAY SPEC

main23258-47010×4iM20AFKS..MXGA10..AGT,GEN202404-202412

23291INSULATOR, INJECTOR VIBRATION

main23291-0T010×4i2ZRFBE..ZSG10; 2ZRFE..ZSG10..THP..(GEN,PH,VN);2ZRFXE..ZVG10..THP..(GEN,IDN,PH,TH,VN)202007-202401

(L); (L),T/P B:REF.ILLUST

main23291-23010×4i2ZRFXE..ZVG10..BZP..(AGT,GEN)202404-202412

TYPE A:REFER ILLUST.

main23291-28020×4i2ZRFXE..ZVG10..BZ; 2ZRFXE..ZVG10..BZP..(AGT,GEN); 2ZRFXE..ZVG10..BZP..E..GEN; M20AFKS..MXGA10202404-202412

PARAGUAY SPEC; TYPE B:REFER ILLUST.

23291AINSULATOR, INJECTOR VIBRATION

main23291-31020×4iM20AFKS..MXGA10202103-202112

23470LIFTER ASSY, FUEL PUMP

main23470-25010iM20AFKS..MXGA10202501

23477GUIDE, FUEL PUMP LIFTER

main23477-25010iM20AFKS..MXGA10202501

(J)

main23477-F2020iM20AFKS..MXGA10202201-202205

23695ACLAMP, NOZZLE HOLDER

main23695-24010×4iM20AFKS..MXGA10..AGT,GEN202501

main23695-25010×4iM20AFKS..MXGA10..BZ; M20AFKS..MXGA10..G..GEN202501

PARAGUAY SPEC

23801PPIPE SUB-ASSY, FUEL, NO.1

main23801-24070iM20AFKS..MXGA10..AGT,GEN202501

main23801-24080iM20AFKS..MXGA10..BZ; M20AFKS..MXGA10..G..GEN202404-202412

PARAGUAY SPEC

23807PIPE SUB-ASSY, FUEL DELIVERY

main23807-37020i2ZRFXE..ZVG10..BZ; 2ZRFXE..ZVG10..BZP..GEN202501

PARAGUAY SPEC

main23814-24020iM20AFKS..MXGA10202201-202403

main23814-37051i2ZRFE..ZSG10..TWP..G;2ZRFE..ZSG10..(MAP,TWP)..(E,J,M,N)202007-202410

main23814-37100i2ZRFXE..ZVG10..BZP..(AGT,GEN)202401-202412

23814BPIPE, FUEL DELIVERY

main23814-24010iM20AFKS..MXGA10202103-202112

main23814-24011iM20AFKS..MXGA10..AGT,GEN202404-202412

main23814-24030iM20AFKS..MXGA10..BZ; M20AFKS..MXGA10..G..GEN202501

PARAGUAY SPEC

23825GUARD, FUEL DELIVERY

main23825-24010iM20AFKS..MXGA10202501

23841BCLAMP, FUEL PIPE, NO.1(FOR EFI)

main23841-0T042i2ZRFE..ZSG10..IDN202007-202212

main23841-24040iM20AFKS..MXGA10202103-202112

main23841-37081i2ZRFXE..ZVG10..SA;2ZRFE..ZSG10..SAP..E;2ZRFE..ZSG10..(G,N)..SA;2ZRFE..ZSG10..LHD..(G,N)..GEN202404

23841KCLAMP, FUEL PIPE

main23841-0T080i2ZRFE..ZSG10..TWP202410

main23841-0T130i2ZRFBE..ZSG10202401-202512

main23841-25040iM20AFKS..MXGA10202404-202412

main23841-47020i2ZRFE..ZSG10..SAP202110-202411

23843ACLAMP,FUEL PIPE, NO.3(FOR EFI)

main23847-24010iM20AFKS..MXGA10202501

23851HOLDER, FUEL PRESSURE SENSOR, NO.1

main23851-25020iM20AFKS..MXGA10202501

23851AHOLDER, FUEL PRESSURE SENSOR, NO.2

main23851-25030iM20AFKS..MXGA10202404-202412

23891SPACER, FUEL DELIVERY

main23891-24010×2iM20AFKS..MXGA10202501

23901TUBE SUB-ASSY, FUEL

main23901-0T280i2ZRFXE..ZVG10..MA202007-202111

main23901-0T290i2ZRFE..ZSG10..SAP;2ZRFE..ZSG10..MAP..G202007-202411

main23901-0T340i2ZRFXE..ZVG10..BZ; 2ZRFXE..ZVG10..BZP..E..GEN202404-202412

PARAGUAY SPEC&ENGINE-2ZR-FXB

main23901-0T410i2ZRFXE..ZVG10..BZP..(AGT,GEN)202201-202403

main23901-37260i2ZRFXE..ZVG10..TAIW202410

main23901-37290i2ZRFE..ZSG10..TAIW202410

main23901-F2050iM20AFKS..MXGA10..AGT,GEN202501

main23901-F2170iM20AFKS..MXGA10..BZ; M20AFKS..MXGA10..G..GEN202501

PARAGUAY SPEC&ENGINE-M20A-FKB

23910ATUBE SUB-ASSY, FUEL

main23901-24071iM20AFKS..MXGA10202501

7701FUEL TANK & TUBE

→ Go to FIG 77-01

8404ELECTRONIC FUEL INJECTION SYSTEM

→ Go to FIG 84-04

9010506350

main90105-06350

9010506352

main90105-06352

9010506376

main90105-06376

9010508510

main90105-08510

9030105013

main90301-05013

9030131016

main90301-31016

9052014004

main90520-14004

91551G0840

main91551-G0840

91553G1040

main91553-G1040

40 parts on this diagram · 6 diagrams in section
