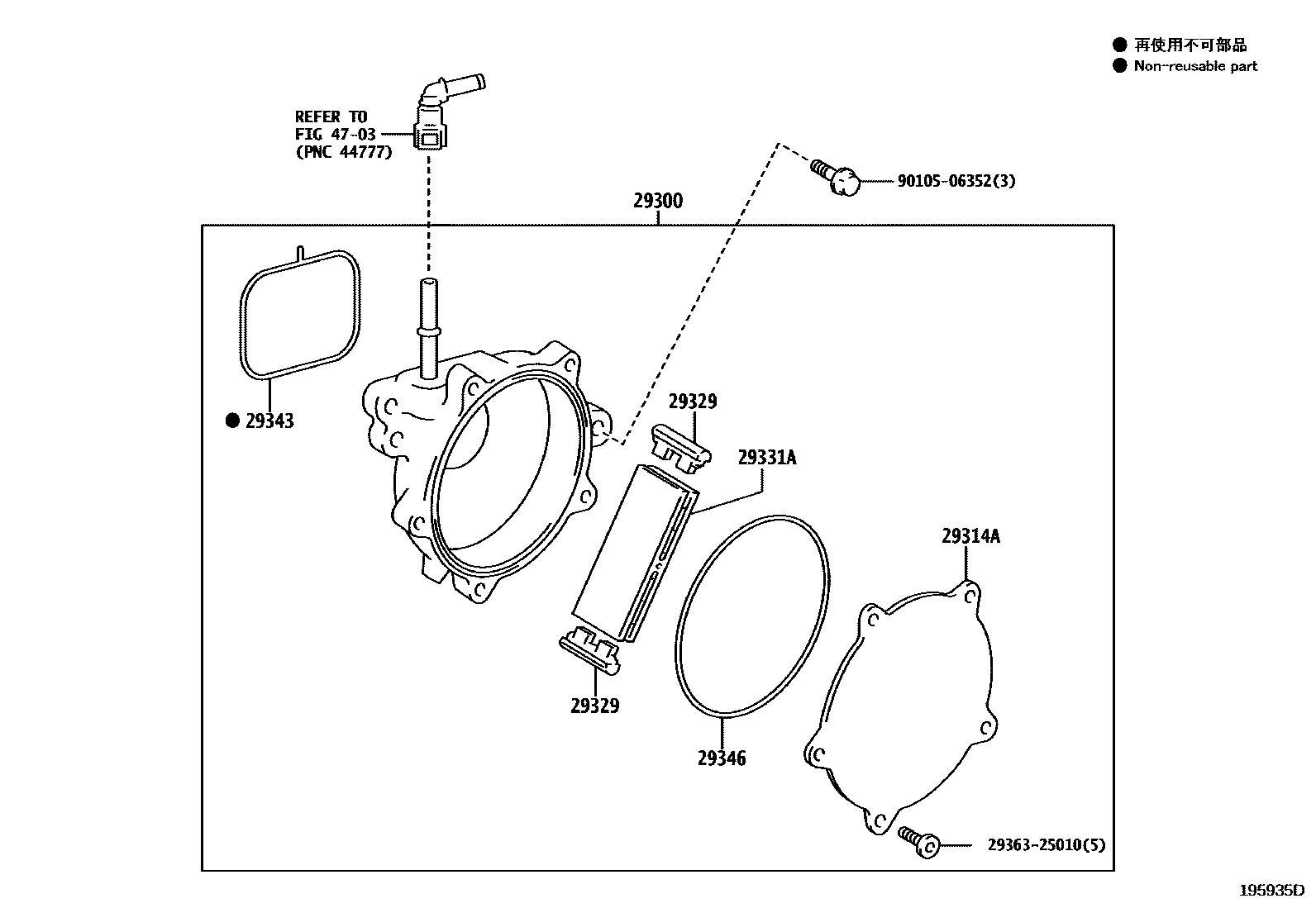

VACUUM PUMP

29300PUMP ASSY, VACUUM

main29300-24011iM20AFKS..MXGA10..AGT,GEN202309-202403

*639

main29300-F2021iM20AFKS..MXGA10202201-202204

main29300-F2031iM20AFKS..MXGA10..AGT,GEN; M20AFKS..MXGA10..BZ; M20AFKS..MXGA10..G..GEN202501

*641; PARAGUAY SPEC

29314ACOVER, END

main29314-25010iM20AFKS..MXGA10..AGT,GEN202501

*639

29329CAP, VACUUM PUMP VANE

main29329-24011×2iM20AFKS..MXGA10..AGT,GEN202404-202412

*639

29331AVANE, VACUUM PUMP

main29331-24010iM20AFKS..MXGA10..AGT,GEN202309-202403

*639

29343RING, O VACUUM PUMP, NO.1

main29343-25010iM20AFKS..MXGA10..AGT,GEN202309-202403

*639

main29343-F2030iM20AFKS..MXGA10..AGT,GEN; M20AFKS..MXGA10..BZ; M20AFKS..MXGA10..G..GEN202501

*641; PARAGUAY SPEC

29346RING, O VACUUM PUMP COVER

main29346-25010iM20AFKS..MXGA10..AGT,GEN202501

*639

4703BRAKE BOOSTER & VACUUM TUBE

→ Go to FIG 47-03

2936325010SCREW, HOLLOW VACUUM PUMP

main29363-25010

9010506352

main90105-06352

9 parts on this diagram · 1 diagram in section
