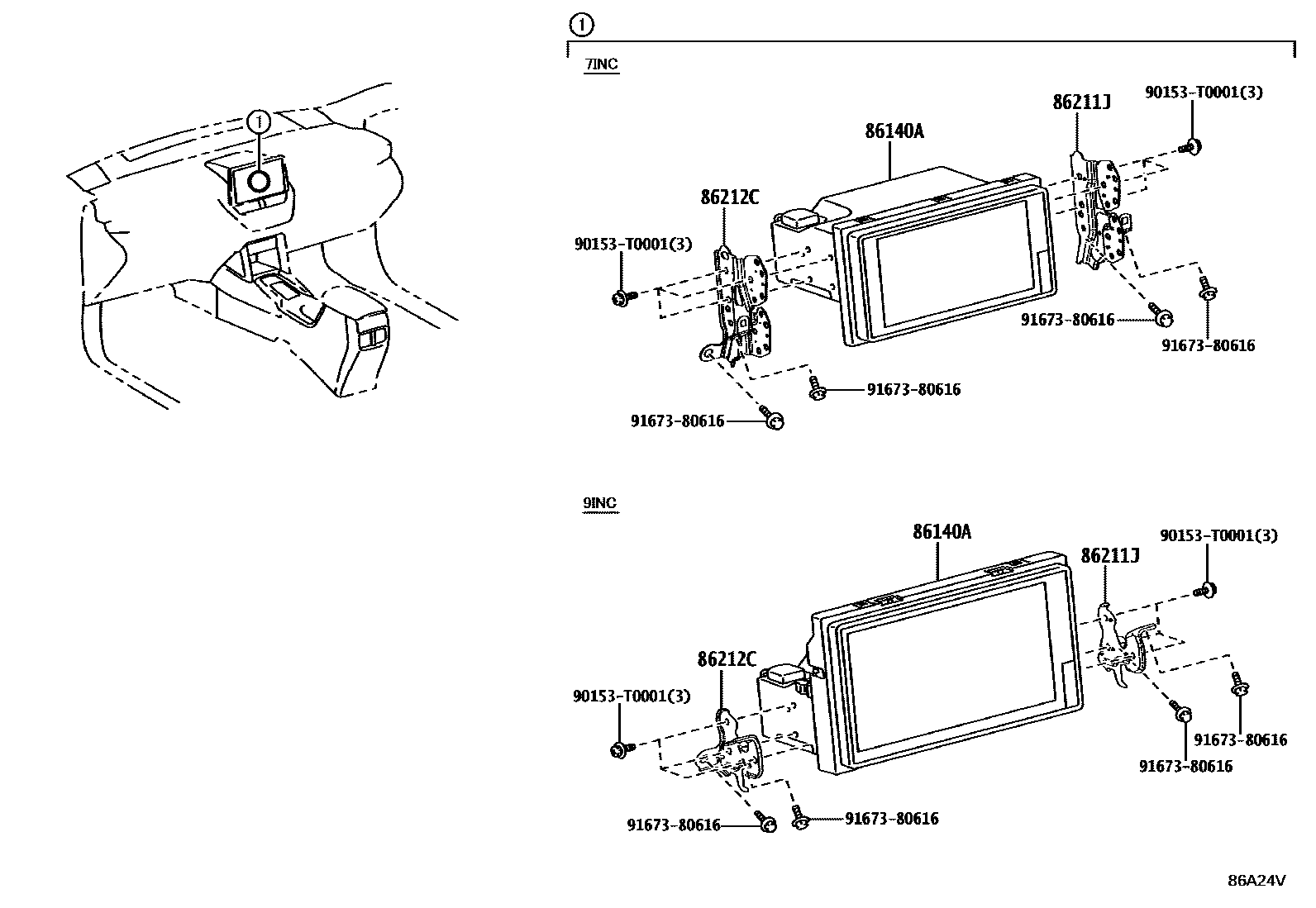

NAVIGATION & FRONT MONITOR DISPLAY

86140ARECEIVER ASSY, RADIO & DISPLAY

main86140-YY240iZSG10,ZVG10..G,N202312

PANASONIC

main86140-YY250iZSG10,ZVG10..E202312

PANASONIC

86211JBRACKET, RADIO RECEIVER, NO.1

main86211-02570iZSG10,ZVG10..E202312

main86211-02580iZSG10,ZVG10..G,N202312

86212CBRACKET, RADIO RECEIVER, NO.2

main86212-02570iZSG10,ZVG10..E202312

main86212-02580iZSG10,ZVG10..G,N202312

90153T0001

main90153-T0001

9167380616

main91673-80616

5 parts on this diagram · 1 diagram in section
