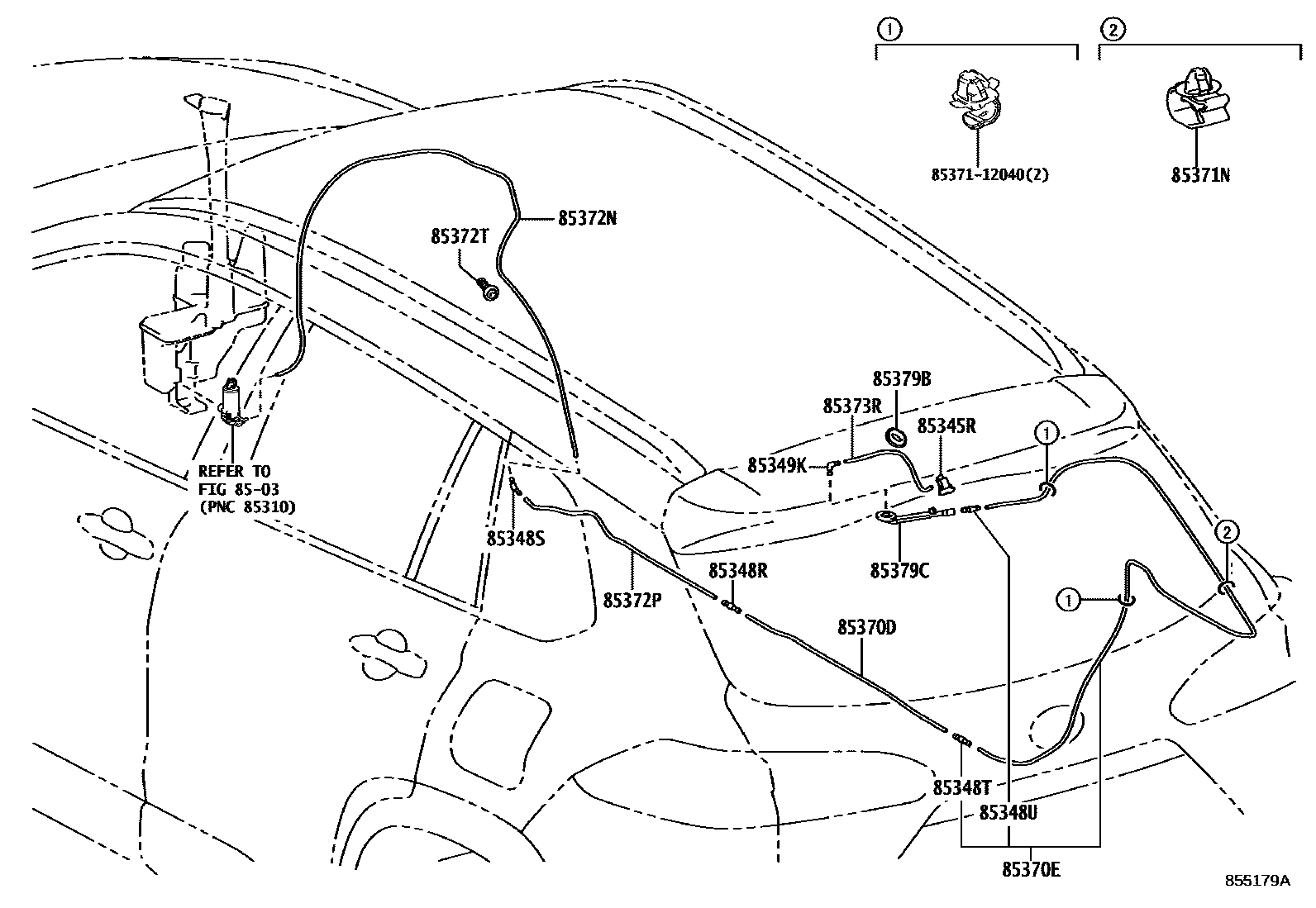

REAR WASHER

8503WINDSHIELD WASHER

85345RNOZZLE, REAR WASHER

85348RJOINT, REAR WASHER HOSE, NO.1

85348SJOINT, REAR WASHER ELBOW, NO.1

85348TJOINT, REAR WASHER HOSE, NO.2

85348UJOINT, REAR WASHER HOSE, NO.3

85349KJOINT, REAR WASHER ELBOW, NO.2

85370DHOSE ASSY, REAR WASHER, NO.1

85370EHOSE ASSY, REAR WASHER, NO.2

85371NCLAMP, REAR WASHER HOSE

85372NHOSE, REAR WASHER (FROM JOINT TO JOINT), NO.1

L=1750

85372PHOSE, REAR WASHER (FROM JOINT TO JOINT), NO.2

L=1450(*H,L=660)

85372TGROMMET, WASHER

85373RHOSE, REAR WASHER (FROM JOINT TO NOZZLE)

L=280

85379BGROMMET, WASHER, A

85379CGROMMET, REAR WASHER HOSE NO.1

8537112040HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)

17 parts on this diagram · 1 diagram in section
