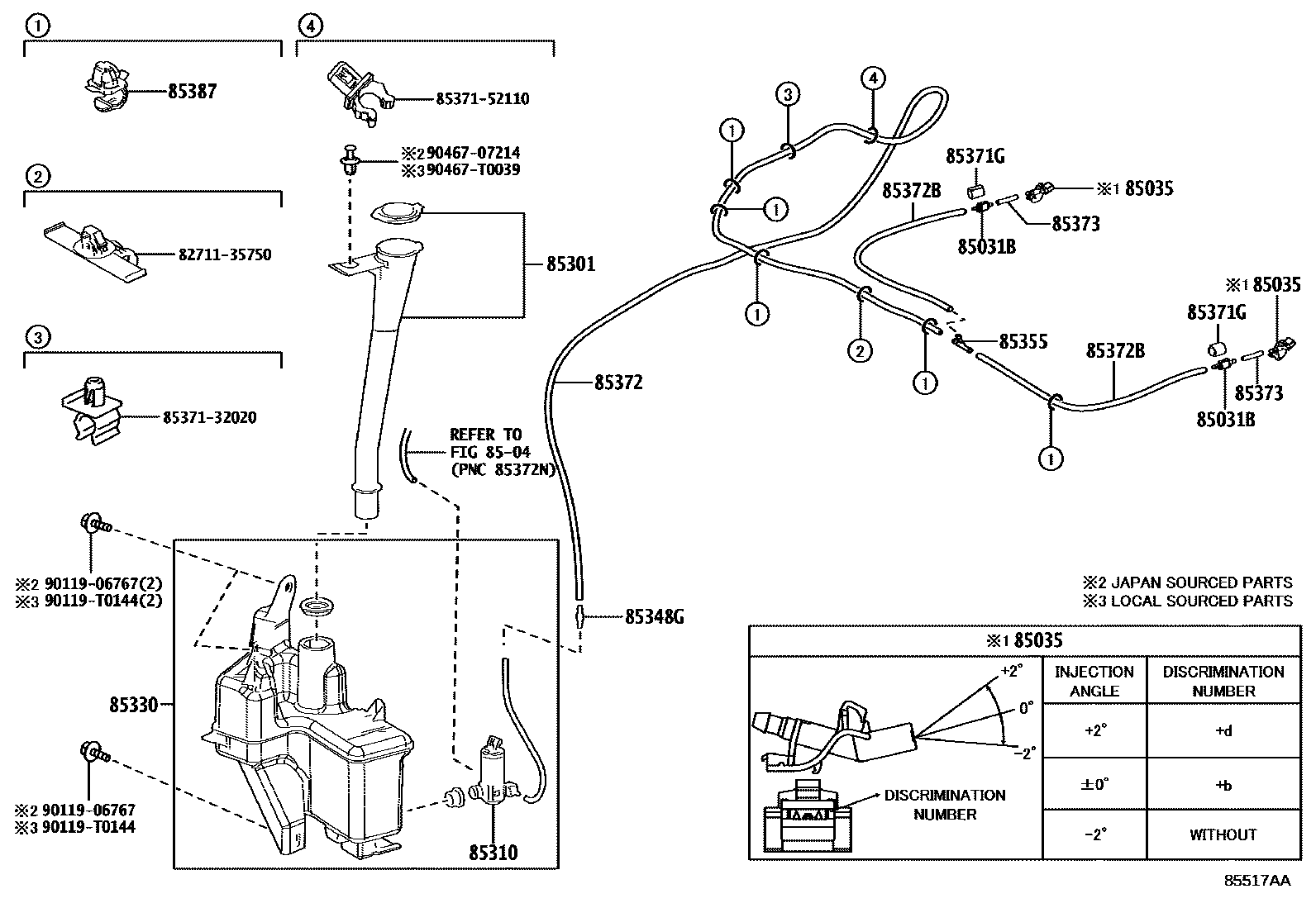

WINDSHIELD WASHER

85031BVALVE SUB-ASSY, WASHER

main85321-26020×2iZSG10,ZVG10202312

85035NOZZLE SUB-ASSY, WASHER

main85381-30220×2iZSG10,ZVG10202312

ANGLE 0

main85381-30230×2iZSG10,ZVG10202312

ANGLE -2

main85381-30240×2iZSG10,ZVG10202312

ANGLE +2

8504REAR WASHER

→ Go to FIG 85-04

85301INLET SUB-ASSY, WASHER

main85301-0A090iZSG10,ZVG10202312

85310MOTOR AND PUMP ASSY, WINDSHIELD WASHER

main85330-0A030iZSG10,ZVG10202312

85330JAR ASSY, WINDSHIELD WASHER

main85310-0A150iZSG10,ZVG10202312

85348GJOINT, WINDSHIELD WASHER HOSE, NO.2

main85375-02330iZSG10,ZVG10202312

85355VALVE, WINDSHIELD WASHER HOSE

main85348-14390iZSG10,ZVG10202312

85371GPROTECTOR, FRONT WASHER

main85389-26080×2iZSG10,ZVG10202312

85372HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1

main90068-33393iZSG10,ZVG10202312

L=2300

85372BHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.2

main90068-33360×2iZSG10,ZVG10202312

L=375

85373HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)

main90068-33019×2iZSG10,ZVG10202312

L=40

85387CLAMP NO.1 (FOR WINDSEIELD WASHER)

main85371-12040×5iZSG10,ZVG10202312

8271135750WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-35750

8537132020HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)

main85371-32020

8537152110HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)

main85371-52110

9011906767

main90119-06767

90119T0144

main90119-T0144

9046707214

main90467-07214

90467T0039

main90467-T0039

20 parts on this diagram · 1 diagram in section
