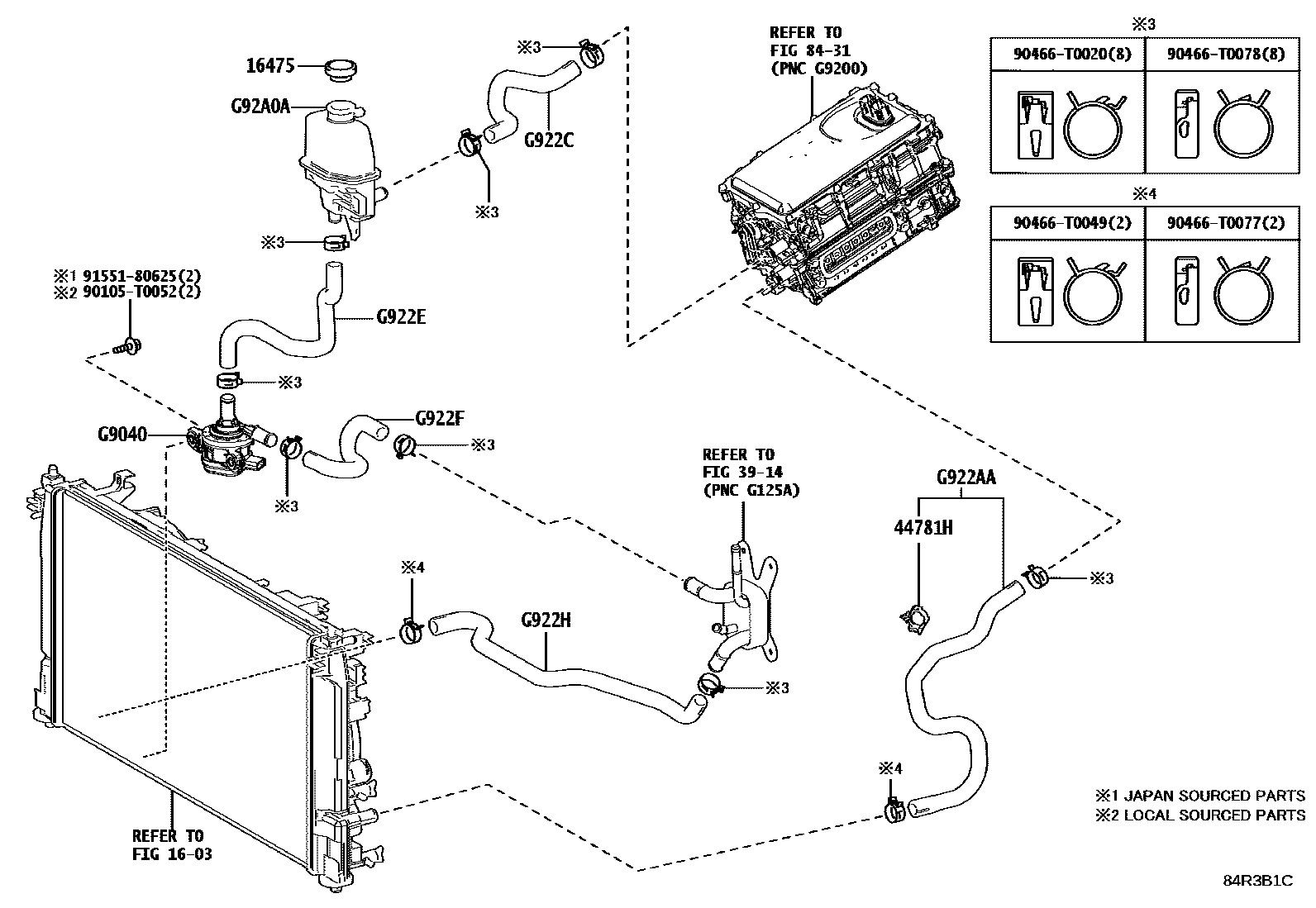

INVERTER COOLING

1603RADIATOR & WATER OUTLET

→ Go to FIG 16-03

16475CAP, RESERVE TANK

main16475-28140i2ZRFXE..ZVG10202312

3914OIL COOLER & TUBE (HEV OR BEV OR FCEV)

→ Go to FIG 39-14

44781HBRACKET, HOSE CLAMP

main16581-25160iZVG10202312

8431HEV INVERTER

→ Go to FIG 84-31

G9040INVERTER WATER PUMP ASSY(W/MOTOR)

mainG904047040iZVG10202312

G922AAHOSE, INVERTER COOLING INLET, NO.1

mainG922AF4020iZVG10202312

G922CHOSE, INVERTER COOLING OUTLET, NO.1

mainG922CF4020iZVG10202312

G922EHOSE, HYBRID WATER PUMP INLET

mainG922EF4020iZVG10202312

G922FHOSE, HYBRID WATER PUMP OUTLET, NO.1

mainG922FF4020iZVG10202312

G922HHOSE, HYBRID RADIATOR INLET

mainG922HF4060iZVG10202312

G92A0ATANK ASSY, INVERTER RESERVE

mainG910G12010iZVG10202312

90105T0052

main90105-T0052

90466T0020

main90466-T0020

90466T0049

main90466-T0049

90466T0077

main90466-T0077

90466T0078

main90466-T0078

9155180625

main91551-80625

18 parts on this diagram · 1 diagram in section
