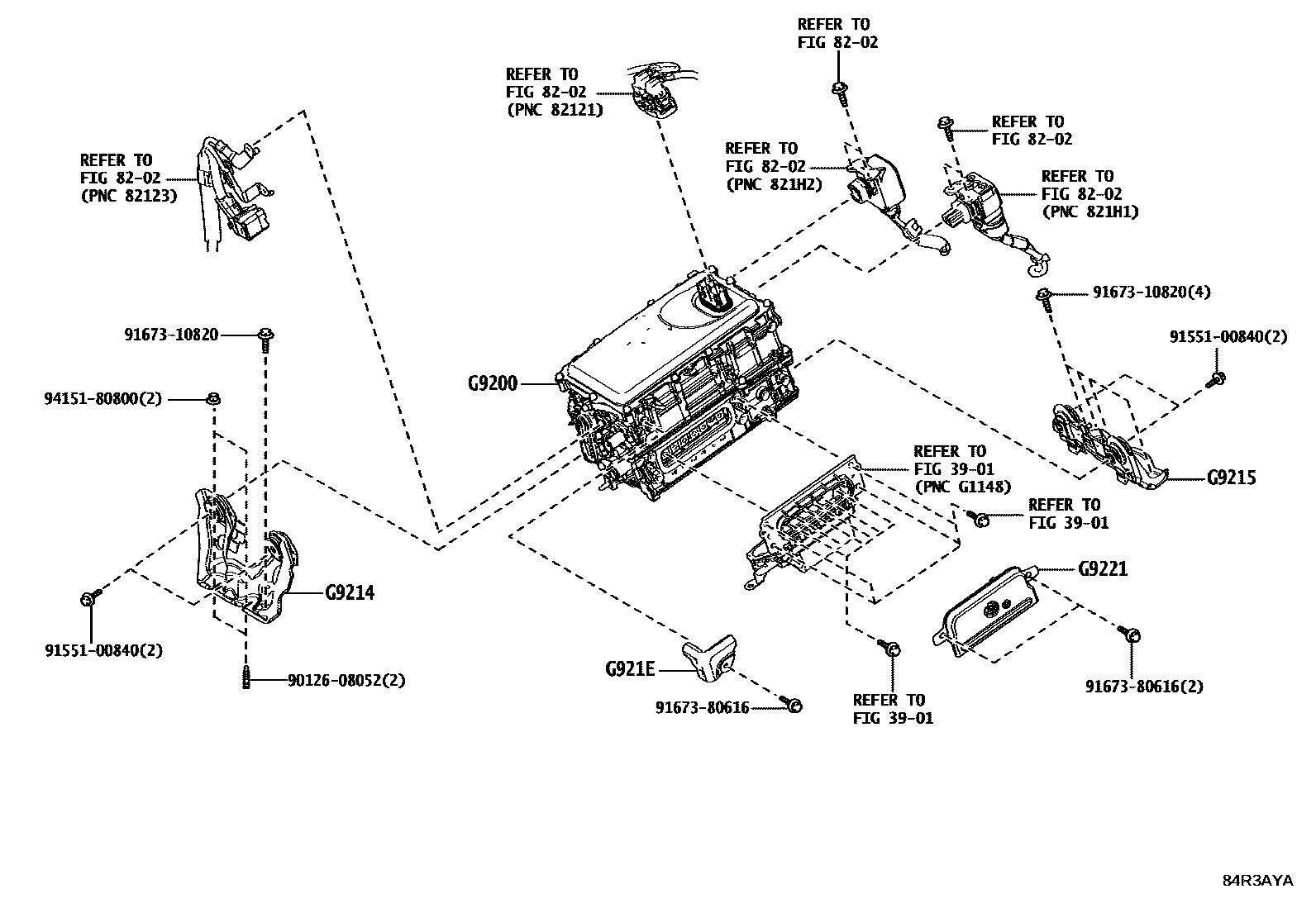

HEV INVERTER

0001 1 0002 1

3901TRANSAXLE ASSY(HEV OR BEV OR FCEV)

→ Go to FIG 39-01

8202WIRING & CLAMP

→ Go to FIG 82-02

G9200INVERTER ASSY, W/CONVERTER

mainG92A047101iZVG10202312

G9214BRACKET, INVERTER, NO.1

mainG921447070iZVG10202312

G9215BRACKET, INVERTER, NO.2

mainG921547050iZVG10202312

G921EPROTECTOR, INVERTER

mainG921E47010iZVG10202312

G9221COVER, INVERTER

mainG902247050iZVG10202312

9012608052

main90126-08052

9155100840

main91551-00840

9167310820

main91673-10820

9167380616

main91673-80616

9415180800

main94151-80800

12 parts on this diagram · 2 diagrams in section
