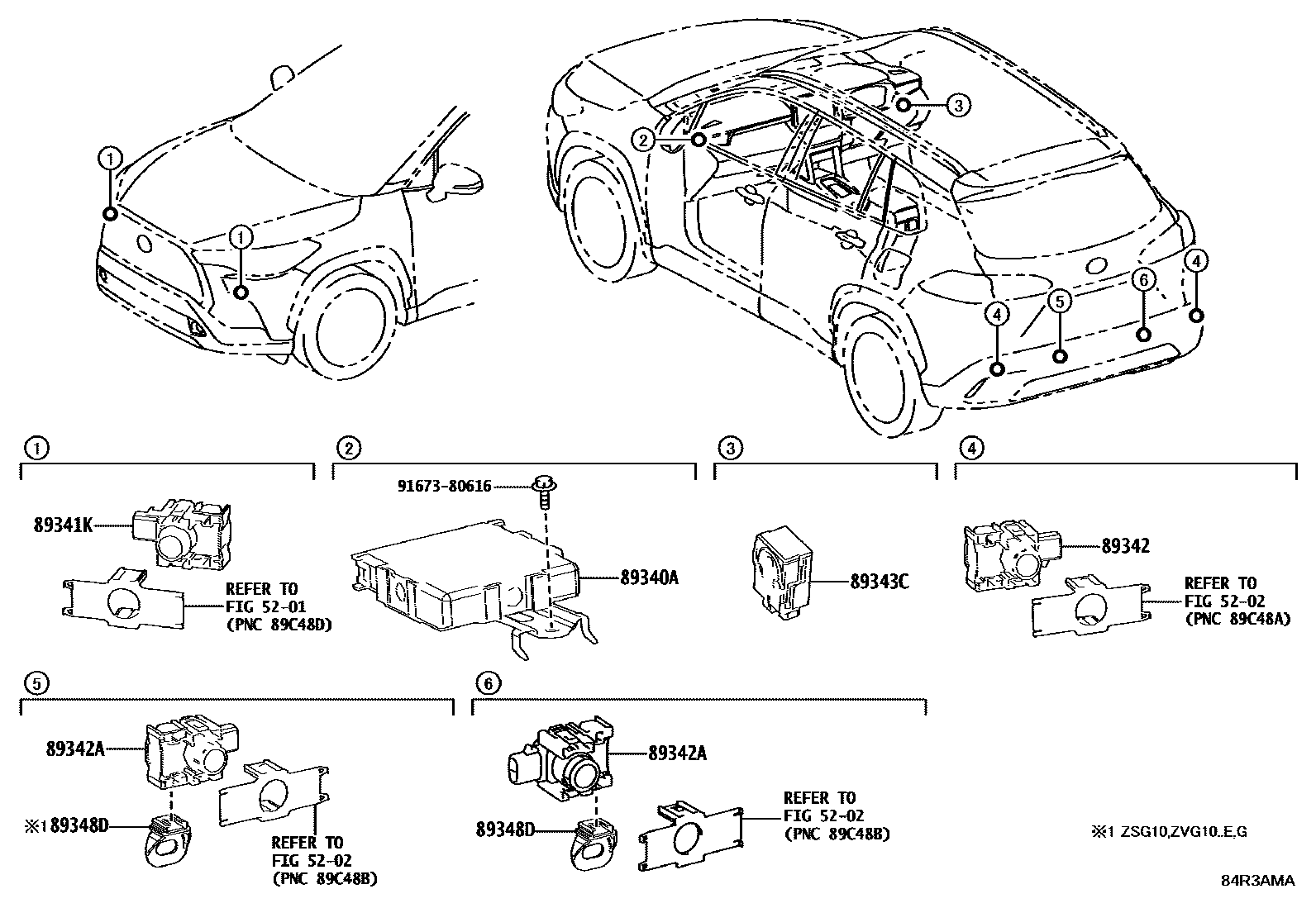

CLEARANCE & BACK SONAR

5201FRONT BUMPER & BUMPER STAY

→ Go to FIG 52-01

5202REAR BUMPER & BUMPER STAY

→ Go to FIG 52-02

89340ACOMPUTER ASSY, CLEARANCE WARNING

main89340-02190iZSG10,ZVG10..E,G202312

main89340-02240iZSG10..N202402

89341KSENSOR, ULTRASONIC, FRONT CORNER

main89341-02080-A0×2iZSG10,ZVG10..E,G202312

SUPER WHITE 2,040

main89341-02080-B2×2iZSG10,ZVG10..E,G202312

CELESTITE GRAY ME.,1K3

main89341-02080-B5×2iZSG10,ZVG10..E,G202312

METAL STREAM ME,1K0

main89341-02080-C1×2iZSG10,ZVG10..E,G202312

ATTITUDE BLACK MC.,218

main89341-02080-D1×2iZSG10,ZVG10..E,G202312

RED M.M.,3R3

main89341-02080-J1×2iZSG10,ZVG10..E,G202312

DK.BLUE M.M.,8W7

89342SENSOR, ULTRASONIC, REAR CORNER

main89341-0A020×2iZSG10,ZVG10..E,G202312

89342ASENSOR, ULTRASONIC, REAR CENTER

main89341-0A020×2iZSG10,ZVG10202312

89343CBUZZER, CLEARANCE WARNING, NO.1

main89343-48010iZSG10,ZVG10202312

89348DCLIP, ULTRASONIC SENSOR

main89348-35030×2iZSG10,ZVG10..E,G202312

9167380616

main91673-80616

9 parts on this diagram · 1 diagram in section
