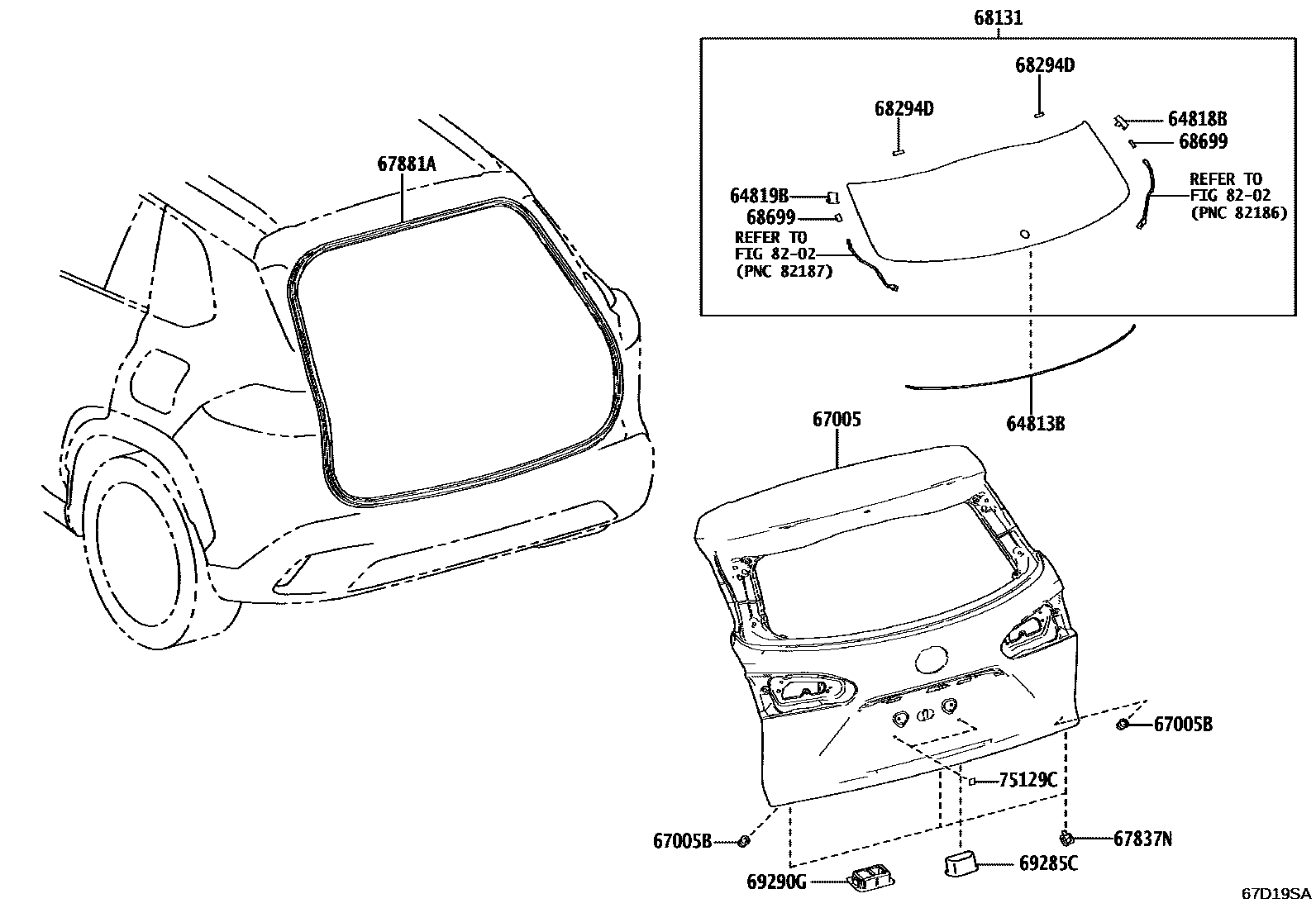

BACK DOOR PANEL & GLASS

0001 1DOOR PANEL 0002 1DOOR TRIM

64813BDAM, BACK WINDOW GLASS ADHESIVE

main64814-0A010iZSG10,ZVG10202312

64818BSPACER, BACK DOOR GLASS, NO.1

main64818-0A010iZSG10,ZVG10202312

64819BSPACER, BACK WINDOW GLASS, NO.2

main64819-0A010iZSG10,ZVG10202312

67005PANEL SUB-ASSY, BACK DOOR

main67005-0A350iZVG10..E202312

main67005-0A360iZSG10;ZVG10..G202312

67005BCUSHION(FOR BACK DOOR PANEL)

main90541-09142iZSG10,ZVG10202312

67837NSEAL, BACK DOOR DUST PROOF

main67837-0A040iZSG10,ZVG10202312

67881AWEATHERSTRIP, BACK DOOR

main67881-0A140iZSG10;ZVG10..G202312

main67881-0A150iZVG10..E202312

68131GLASS, BACK DOOR

main68105-0A010iZSG10,ZVG10202312

68294DDAM, BACK DOOR GLASS ADHESIVE, NO.2

main68294-26030iZSG10,ZVG10202312

68699SPACER, BACK DOOR WINDOW FRAME

main68699-0A010iZSG10,ZVG10202312

69285CHANDLE, PULL

main69285-0D040iZSG10,ZVG10202312

69290GBASE ASSY, GLIDE DOOR INSIDE HANDLE

main69290-0A010iZVG10..E202312

75129CCUSHION, REAR LICENCE PLATE

main75129-21010iZSG10,ZVG10202312

8202

14 parts on this diagram · 2 diagrams in section
