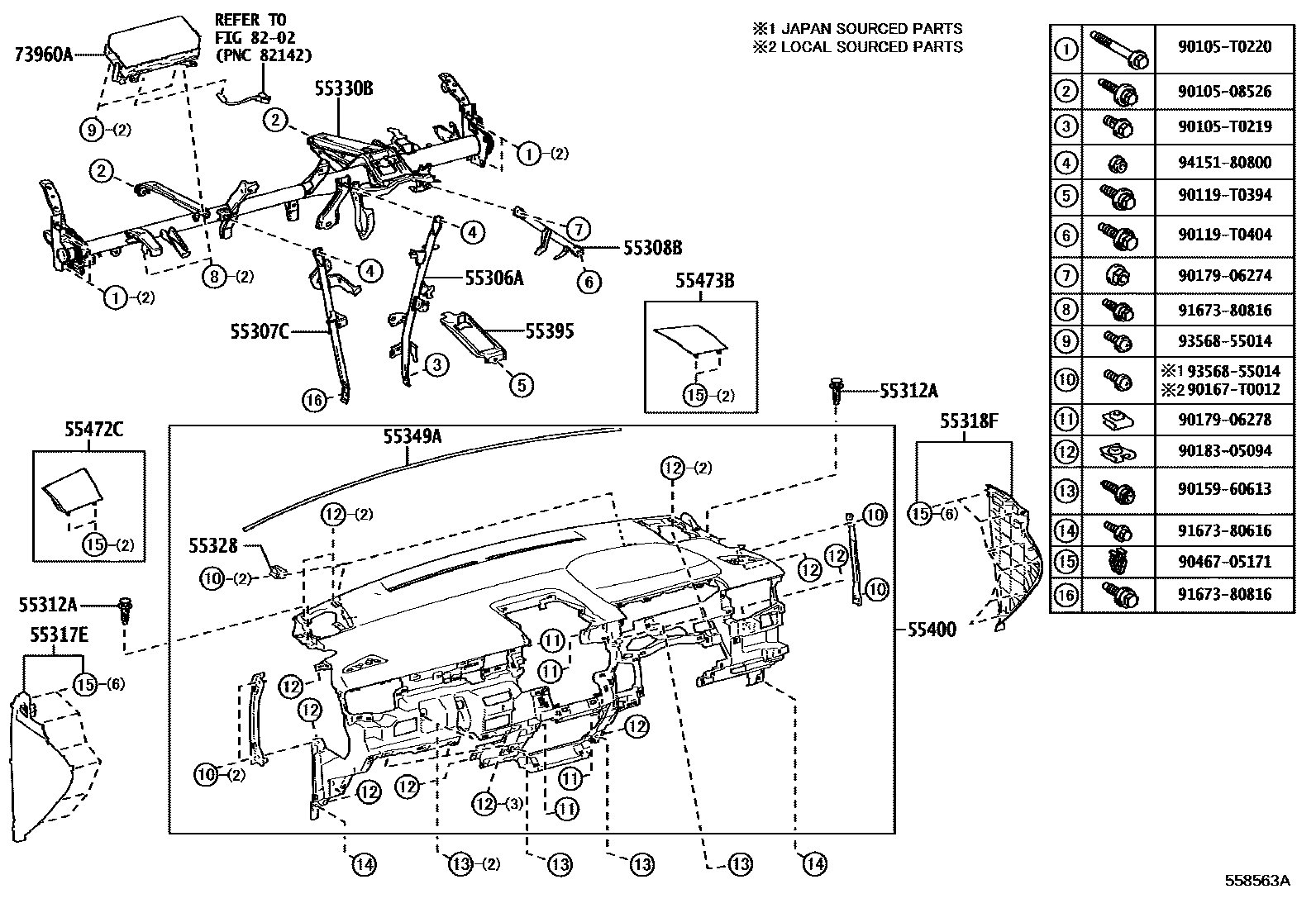

INSTRUMENT PANEL & GLOVE COMPARTMENT

0001 1 0002 1DRIVER SIDE 0003 1CENTER 0004 1PASSENGER SIDE

55306ABRACE SUB-ASSY, INSTRUMENT PANEL, NO.1

main55306-0A110iZSG10,ZVG10202312

55307CBRACE SUB-ASSY, INSTRUMENT PANEL, NO.2

main55307-0A140iZSG10,ZVG10202312

55308BBRACE SUB-ASSY, INSTRUMENT PANEL TO COWL, NO.3

main55308-0A090iZSG10,ZVG10202312

55312ACLIP, INSTRUMENT PANEL

main52161-0K040iZSG10,ZVG10202312

55317EPANEL, INSTRUMENT SIDE, NO.1

main55317-0A120-C0iZSG10,ZVG10202312

BLACK,TRIM3#

55318FPANEL, INSTRUMENT SIDE, NO.2

main55318-0A120-C0iZSG10,ZVG10202312

BLACK,TRIM3#

55328PIN, INSTRUMENT PANEL, NO.1

main55328-12430iZSG10,ZVG10202312

55330BREINFORCEMENT ASSY, INSTRUMENT PANEL

main55330-0A150iZSG10,ZVG10202312

55349ACUSHION, INSTRUMENT PANEL

main55349-0D240iZSG10,ZVG10202312

55395BRACKET, INSTRUMENT PANEL TO PEDAL

main55395-10010iZSG10,ZVG10202312

55400PAD ASSY, INSTRUMENT PANEL SAFETY

main55400-0A040-C0iZSG10,ZVG10202312

BLACK,TRIM3#

55472CPANEL, INSTRUMENT PANEL SPEAKER, NO.1

main55472-0A140-C0iZSG10,ZVG10202312

BLACK,TRIM3#

55473BPANEL, INSTRUMENT PANEL SPEAKER, NO.2

main55473-0A130-C0iZSG10,ZVG10202312

BLACK,TRIM3#

73960AAIRBAG ASSY, INSTRUMENT PANEL PASSENGER W/O DOOR

main73960-0A010iZSG10,ZVG10202312

8202WIRING & CLAMP

→ Go to FIG 82-02

9010508526

main90105-08526

90105T0219

main90105-T0219

90105T0220

main90105-T0220

90119T0394

main90119-T0394

90119T0404

main90119-T0404

9015960613

main90159-60613

90167T0012

main90167-T0012

9017906274

main90179-06274

9017906278

main90179-06278

9018305094

main90183-05094

9046705171

main90467-05171

9167380616

main91673-80616

9167380816

main91673-80816

9356855014

main93568-55014

9415180800

main94151-80800

30 parts on this diagram · 4 diagrams in section
