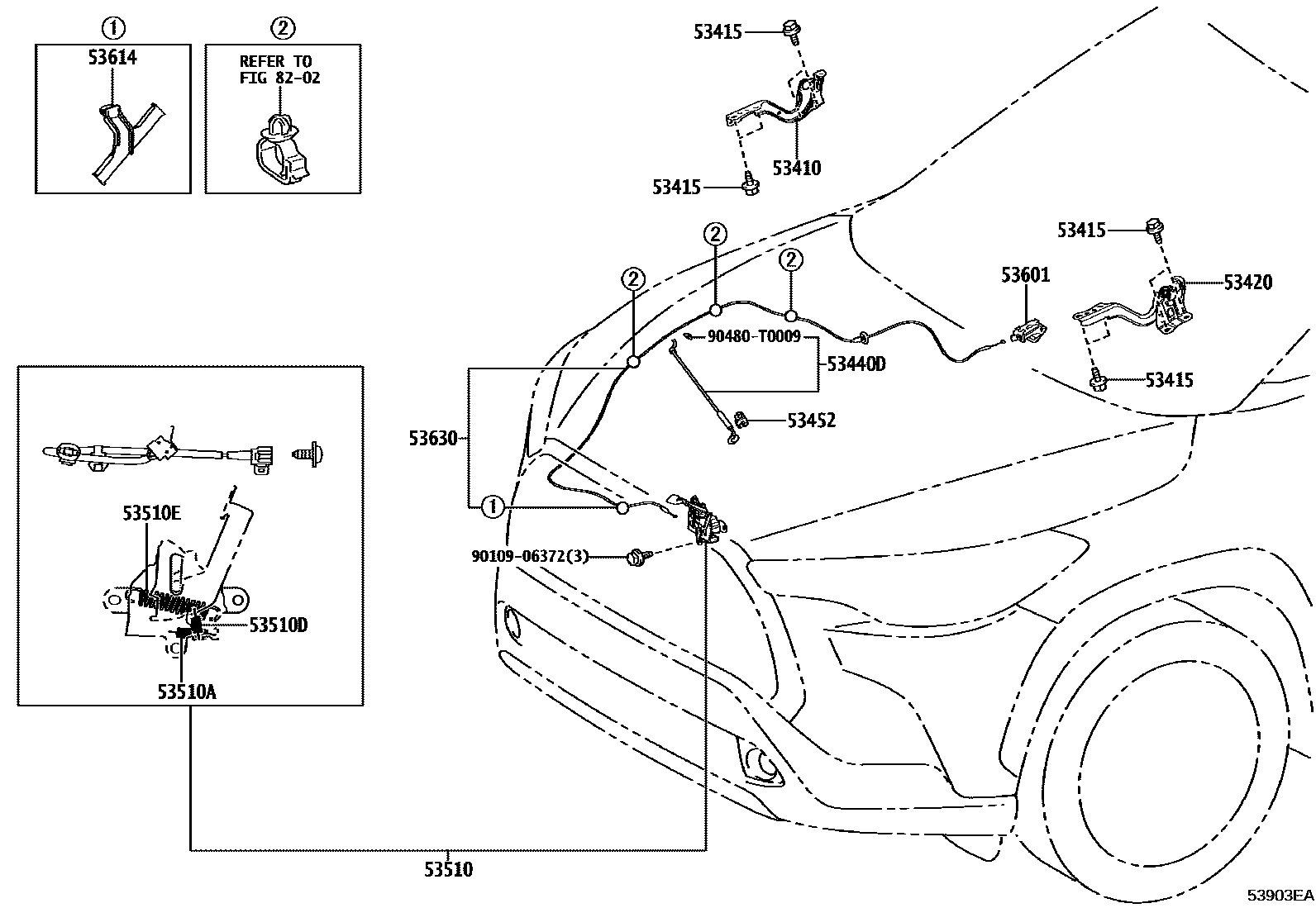

HOOD LOCK & HINGE

53410HINGE ASSY, HOOD, RH

main53410-0A030iZSG10,ZVG10202312

53415BOLT, HOOD HINGE

main90105-08031×4iZSG10,ZVG10202312

53420HINGE ASSY, HOOD, LH

main53420-0A030iZSG10,ZVG10202312

53440DSUPPORT ASSY, HOOD

main53440-0A080iZSG10,ZVG10202312

53452HOLDER, HOOD STAY

main53452-15020iZSG10,ZVG10202312

53510LOCK ASSY, HOOD

main53510-0A040iZSG10,ZVG10202312

53510ASPRING, TENSION(FOR HOOD LOCK)

main90506-09055iZSG10,ZVG10202312

WD=0.9,CW=21

53510DSPRING, TENSION(FOR HOOD LOCK)

main90506-12063iZSG10,ZVG10202312

WD=1.2,CW=8.5

53510ESPRING, TENSION(FOR HOOD LOCK)

main90506-18067iZSG10,ZVG10202312

WD=1.8,CW=13

53601LEVER SUB-ASSY, HOOD LOCK CONTROL

main53601-0D040-C1iZSG10,ZVG10202312

BLACK,TRIM3#

53614CLAMP, HOOD LOCK CONTROL CABLE

main53614-16010iZSG10,ZVG10202312

53630CABLE ASSY, HOOD LOCK CONTROL

main53630-0A030iZSG10,ZVG10202312

8202WIRING & CLAMP

→ Go to FIG 82-02

9010906372

main90109-06372

90480T0009

main90480-T0009

15 parts on this diagram · 1 diagram in section
