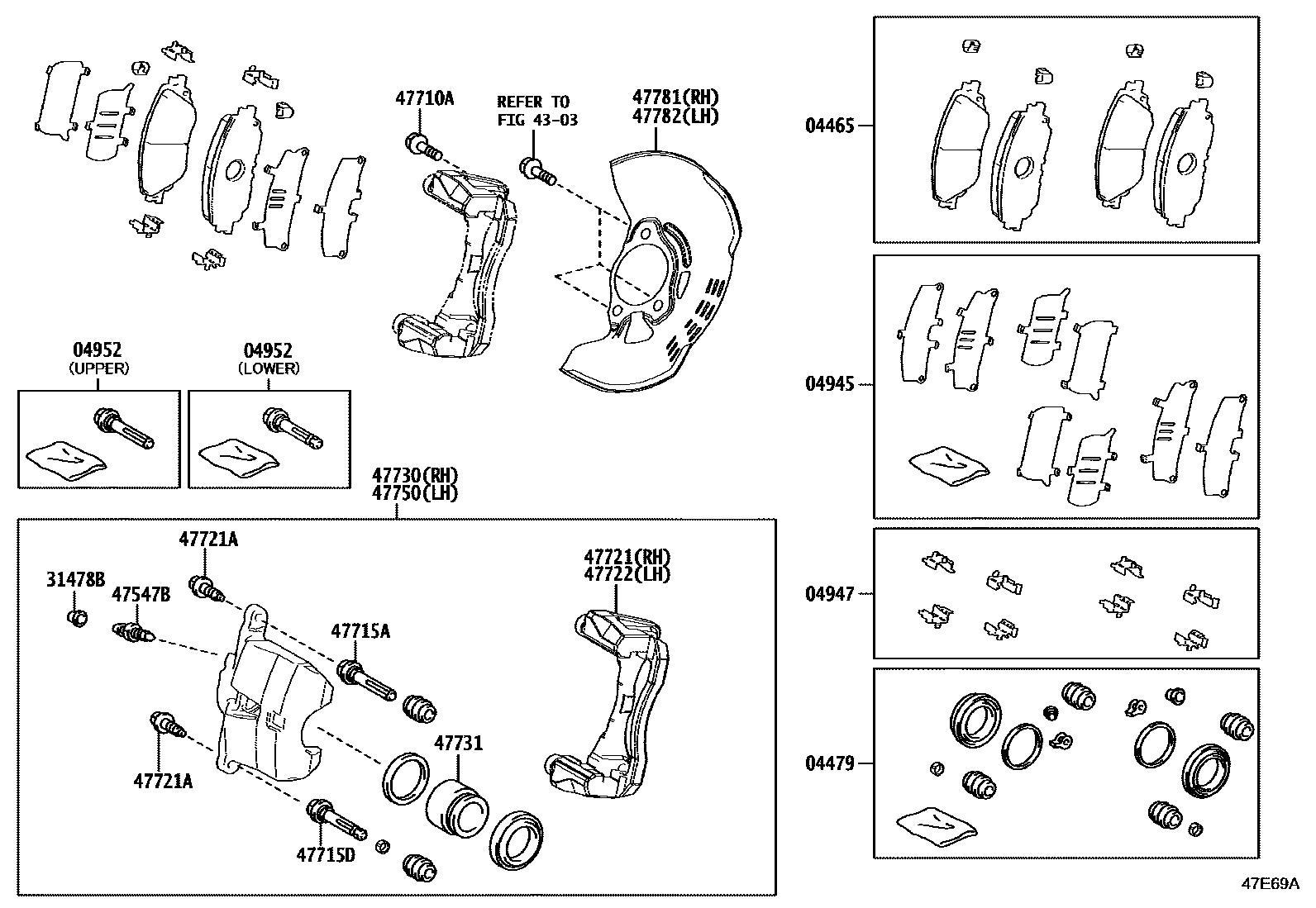

FRONT DISC BRAKE CALIPER & DUST COVER

04465PAD KIT, DISC BRAKE, FRONT

main04465-06160iZSG10,ZVG10202312

MARK NBK D6994H

04479CYLINDER KIT, DISC BRAKE, FRONT

main04478-06330iZSG10,ZVG10202312

04945SHIM KIT, ANTI SQUEAL, FRONT

main04945-0A010iZSG10,ZVG10202312

04947FITTING KIT, DISC BRAKE, FRONT

main04947-06121iZSG10,ZVG10202312

04952PIN KIT, FRONT DISC BRAKE CYLINDER SLIDE

main04952-0K020×2iZSG10,ZVG10202312

UPPER SIDE

main04952-0K030×2iZSG10,ZVG10202312

LOWER SIDE

31478BCAP, BLEEDER PLUG(FOR FRONT DISC BRAKE)

main31478-0D040×2iZSG10,ZVG10202312

47547BPLUG, BLEEDER(FOR FRONT DISC BRAKE)

main47547-20010×2iZSG10,ZVG10202312

47710ABOLT, HEXAGON(FOR FRONT DISC BRAKE CALIPER)

main90105-T0186×4iZSG10,ZVG10202312

*12-1.25PX29.5-23

47715APIN, FRONT DISC BRAKE CYLINDER SLIDE

main47714-0K220×2iZSG10,ZVG10202312

47715DPIN, FRONT DISC BRAKE CYLINDER SLIDE, NO.2

main47715-0K220×2iZSG10,ZVG10202312

47721MOUNTING, FRONT DISC BRAKE CYLINDER, RH

main47721-0A010iZSG10,ZVG10202312

47721ABOLT(FOR FRONT DISC BRAKE CYLINDER MOUNTING)

main90016-AA603×4iZSG10,ZVG10202312

*8-1.00PX23-15

47722MOUNTING, FRONT DISC BRAKE CYLINDER, LH

main47722-0A010iZSG10,ZVG10202312

47730CYLINDER ASSY, FRONT DISC BRAKE, RH

main47730-0A010iZSG10,ZVG10202312

47731PISTON, FRONT DISC BRAKE

main47731-06330×2iZSG10,ZVG10202312

47750CYLINDER ASSY, DISC BRAKE, LH

main47750-0A010iZSG10,ZVG10202312

47781COVER, DISC BRAKE DUST, FRONT RH

main47781-0A050iZSG10,ZVG10202312

47782COVER, DISC BRAKE DUST, FRONT LH

main47782-0A050iZSG10,ZVG10202312

18 parts on this diagram · 1 diagram in section
