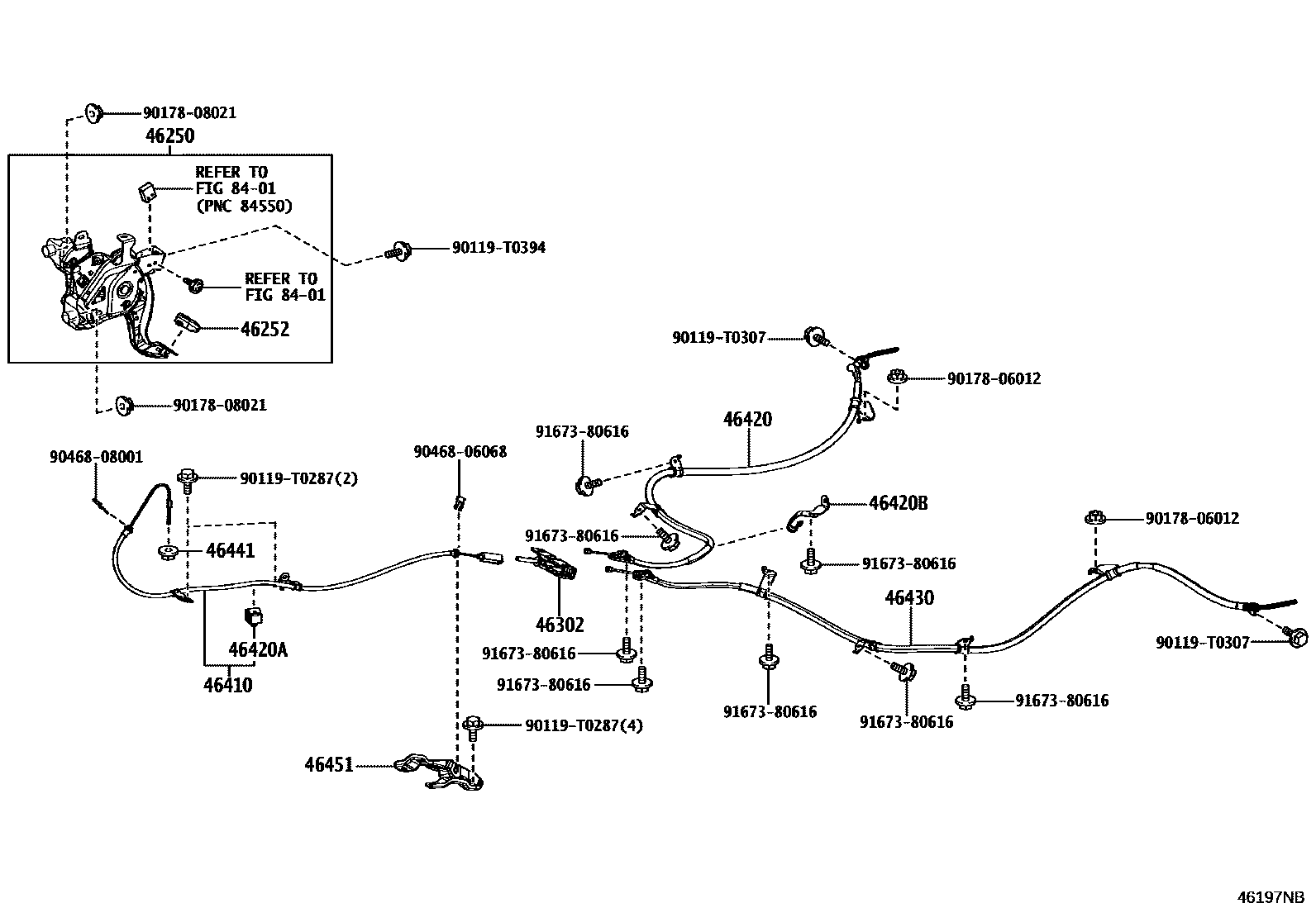

PARKING BRAKE & CABLE

0001 1CABLE 0002 1BRAKE SHOE

46250PEDAL ASSY, PARKING BRAKE W/O CABLE

main46250-0A010iZSG10,ZVG10202312

46252PAD, PARKING PEDAL

main46252-0A010iZSG10,ZVG10202312

46302ROD SUB-ASSY, PARKING BRAKE PULL, NO.1

main46302-0A020iZSG10,ZVG10202312

46410CABLE ASSY, PARKING BRAKE, NO.1

main46410-0A020iZSG10,ZVG10202312

46420CABLE ASSY, PARKING BRAKE, NO.2

main46420-0A020iZSG10,ZVG10202312

46420ACLAMP, NO.1(FOR PARKING BRAKE CABLE)

main46402-12030iZSG10,ZVG10202312

46420BCLAMP, NO.2(FOR PARKING BRAKE CABLE)

main46421-0A010iZSG10,ZVG10202312

46430CABLE ASSY, PARKING BRAKE, NO.3

main46430-0A020iZSG10,ZVG10202312

46441NUT, WIRE ADJUSTING, NO.1

main90177-06003iZSG10,ZVG10202312

46451BRACKET, CABLE SUPPORT

main46451-0A120iZSG10,ZVG10202312

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

90119T0287

main90119-T0287

90119T0307

main90119-T0307

90119T0394

main90119-T0394

9017806012

main90178-06012

9017808021

main90178-08021

9046806068

main90468-06068

9046808001

main90468-08001

9167380616

main91673-80616

19 parts on this diagram · 2 diagrams in section
