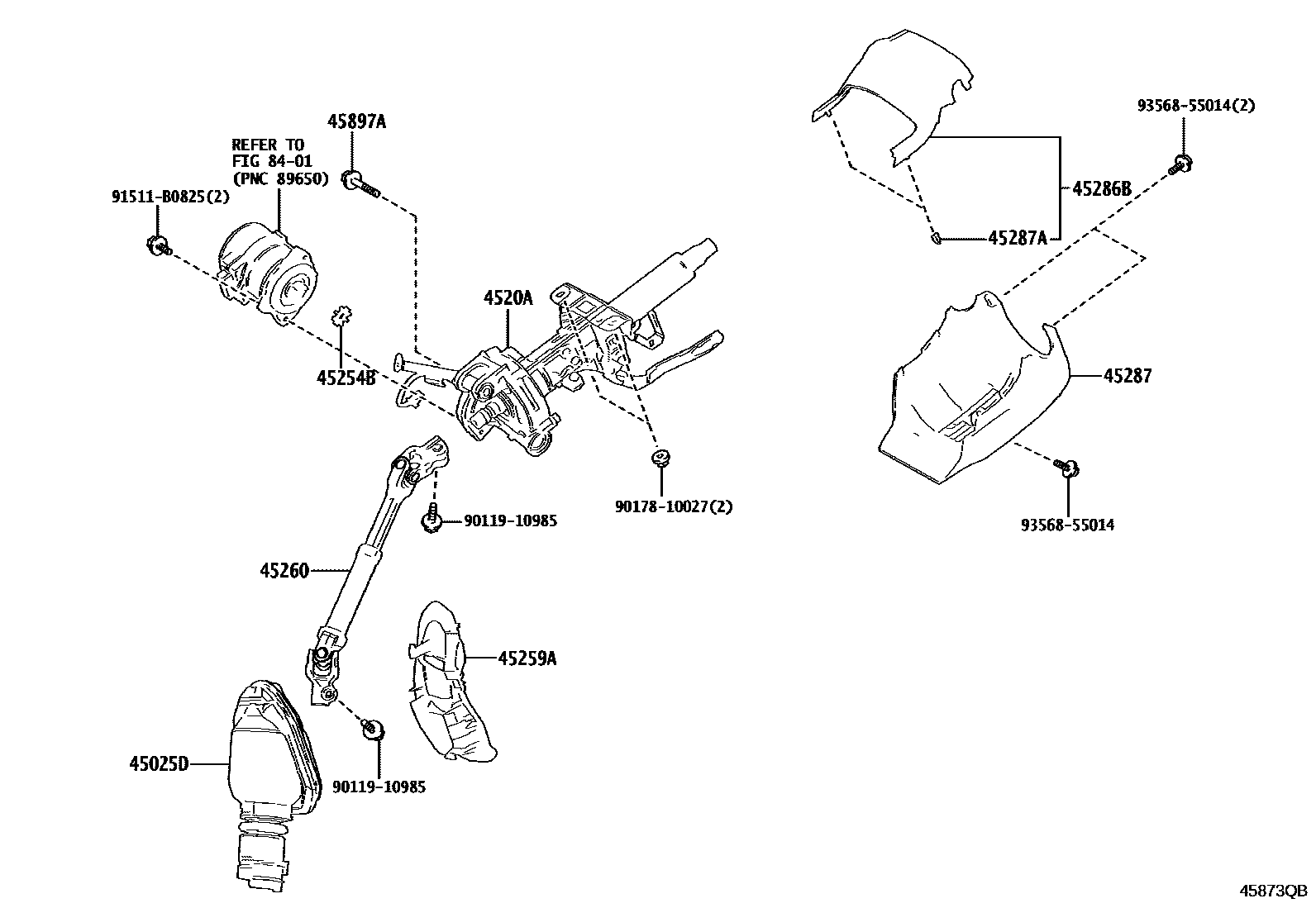

STEERING COLUMN & SHAFT

45025DCOVER SUB-ASSY, STEERING COLUMN HOLE, NO.1

main45025-0A050iZSG10,ZVG10202312

4520ACOLUMN SUB-ASSY, ELECTRIC POWER STEERING

main4520A-0A010iZSG10,ZVG10202312

45254BDAMPER, ELECTRIC POWER STEERING MOTOR SHAFT

main45254-28040iZSG10,ZVG10202312

45259ASHEET, COLUMN HOLE COVER SILENCER

main45259-0A050iZSG10,ZVG10202312

45260SHAFT ASSY, STEERING INTERMEDIATE, NO.2

main45260-F4030iZSG10,ZVG10202312

45286BCOVER, STEERING COLUMN, UPR

main45286-02650-C0iZSG10,ZVG10202312

BLACK,TRIM3#

45287COVER, STEERING COLUMN, LWR

main45287-02650-C0iZSG10,ZVG10202312

BLACK,TRIM3#

45287ACLIP(FOR STEERING COLUMN COVER)

main90467-05171iZSG10,ZVG10202312

45897ABOLT, TILT STEERING PAWL SET

main90119-10981iZSG10,ZVG10202312

8401

9011910985

main90119-10985

9017810027

main90178-10027

91511B0825

main91511-B0825

9356855014

main93568-55014

14 parts on this diagram · 1 diagram in section
