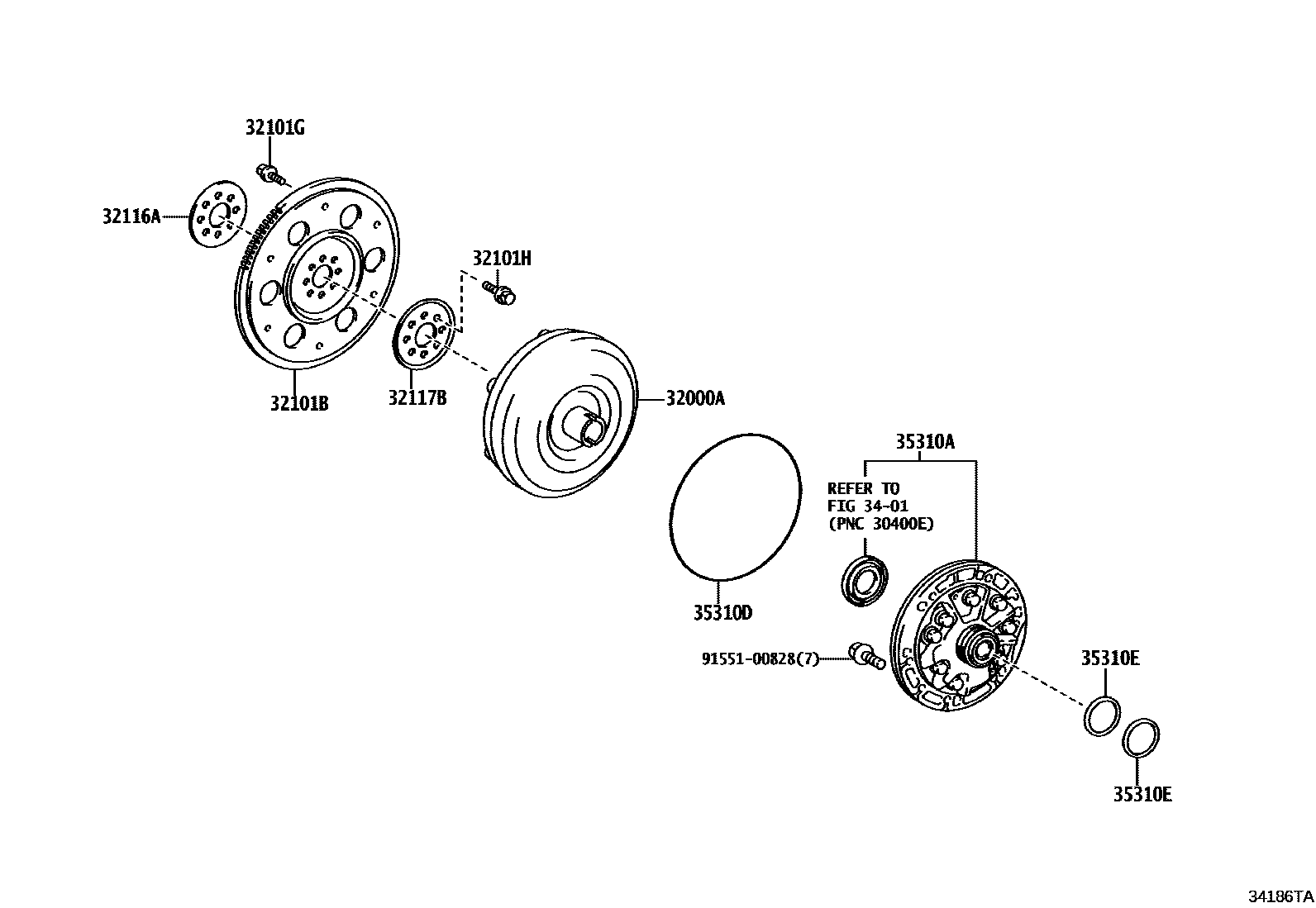

TORQUE CONVERTER, FRONT OIL PUMP(CVT)

32000ACONVERTER ASSY, TORQUE

main32000-12500iZSG10202402-202503

32101BGEAR SUB-ASSY, DRIVE PLATE & RING

main32101-12100iZSG10202402

32101GBOLT(FOR DRIVE PLATE & TORQUE CONVERTER SETTING)

main90109-08113iZSG10202402

*8-1.25PX12-8.4,BLACK

main90119-08498iZSG10202402

*8-1.25PX12-8,SILVER WHITE

32101HBOLT, HEXAGON(FOR DRIVE PLATE SETTING)

main90105-10048iZSG10202402

32116ASPACER, DRIVE PLATE, FRONT

main32116-12030iZSG10202402

32117BSPACER, DRIVE PLATE, REAR

main32117-12040iZSG10202402

3401

35310APUMP ASSY, FRONT OIL

main35310-12170iZSG10202402

35310DRING, O (FOR FRONT OIL PUMP)

main90301-99202iZSG10202402

35310ESEAL, TYPE T OIL (FOR FRONT OIL PUMP)

main35617-12031iZSG10202402

9155100828

main91551-00828

11 parts on this diagram · 1 diagram in section
