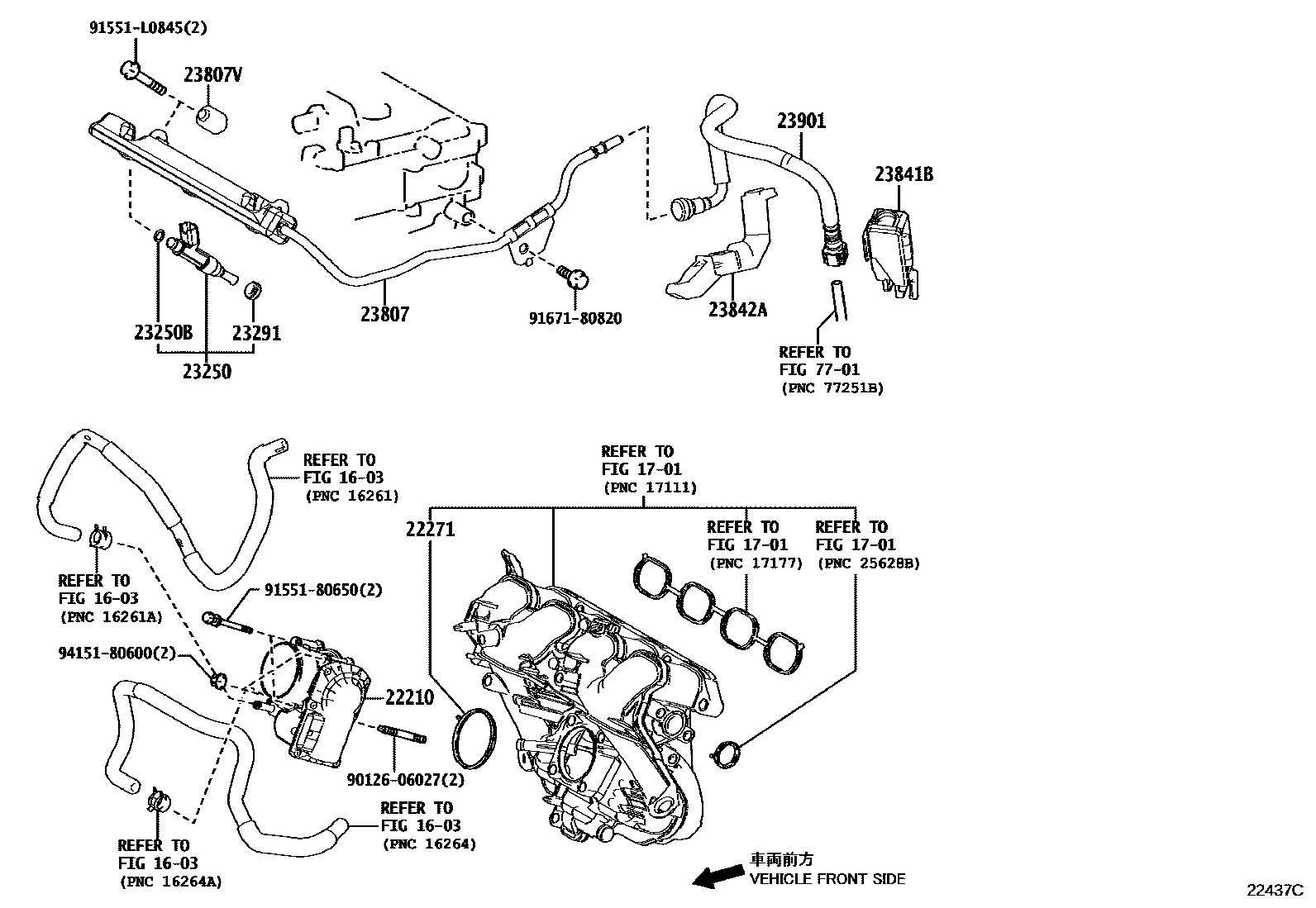

FUEL INJECTION SYSTEM

0001 1 0002 1

1603RADIATOR & WATER OUTLET

→ Go to FIG 16-03

1701MANIFOLD

→ Go to FIG 17-01

22210BODY ASSY, THROTTLE

main22030-37060i2ZRFXE..ZVG10202312

main22030-37090i2ZRFE..ZSG10202402

22271GASKET, THROTTLE BODY

main22271-37020i2ZRFXE..ZVG10202312

main22271-75031i2ZRFE..ZSG10202402

23250INJECTOR ASSY, FUEL

main23209-39146×4i2ZRFE..ZSG10202402

main23209-39295×4i2ZRFXE..ZVG10202312

23250BRING, O(FOR FUEL INJECTOR)

main90301-07037×4i2ZR#..ZSG10,ZVG10202312

23291INSULATOR, INJECTOR VIBRATION

main23291-28020×4i2ZR#..ZSG10,ZVG10202312

23807PIPE SUB-ASSY, FUEL DELIVERY

main23814-37051i2ZRFE..ZSG10202402

main23814-37100i2ZRFXE..ZVG10202312

23807VSPACER, NO.1(FOR DELIVERY PIPE)

main23891-37010×2i2ZR#..ZSG10,ZVG10202312

23841BCLAMP, FUEL PIPE, NO.1(FOR EFI)

main23841-0T042i2ZR#..ZSG10,ZVG10202312

23842ACLAMP, FUEL PIPE, NO.2(FOR EFI)

main23841-37131i2ZRFXE..ZVG10202312

main23842-22020i2ZRFE..ZSG10202402

23901TUBE SUB-ASSY, FUEL

main23901-0T280i2ZRFXE..ZVG10202312

main23901-0T290i2ZRFE..ZSG10202402

7701FUEL TANK & TUBE

→ Go to FIG 77-01

9012606027

main90126-06027

9155180650

main91551-80650

91551L0845

main91551-L0845

9167180820

main91671-80820

9415180600

main94151-80600

18 parts on this diagram · 2 diagrams in section
