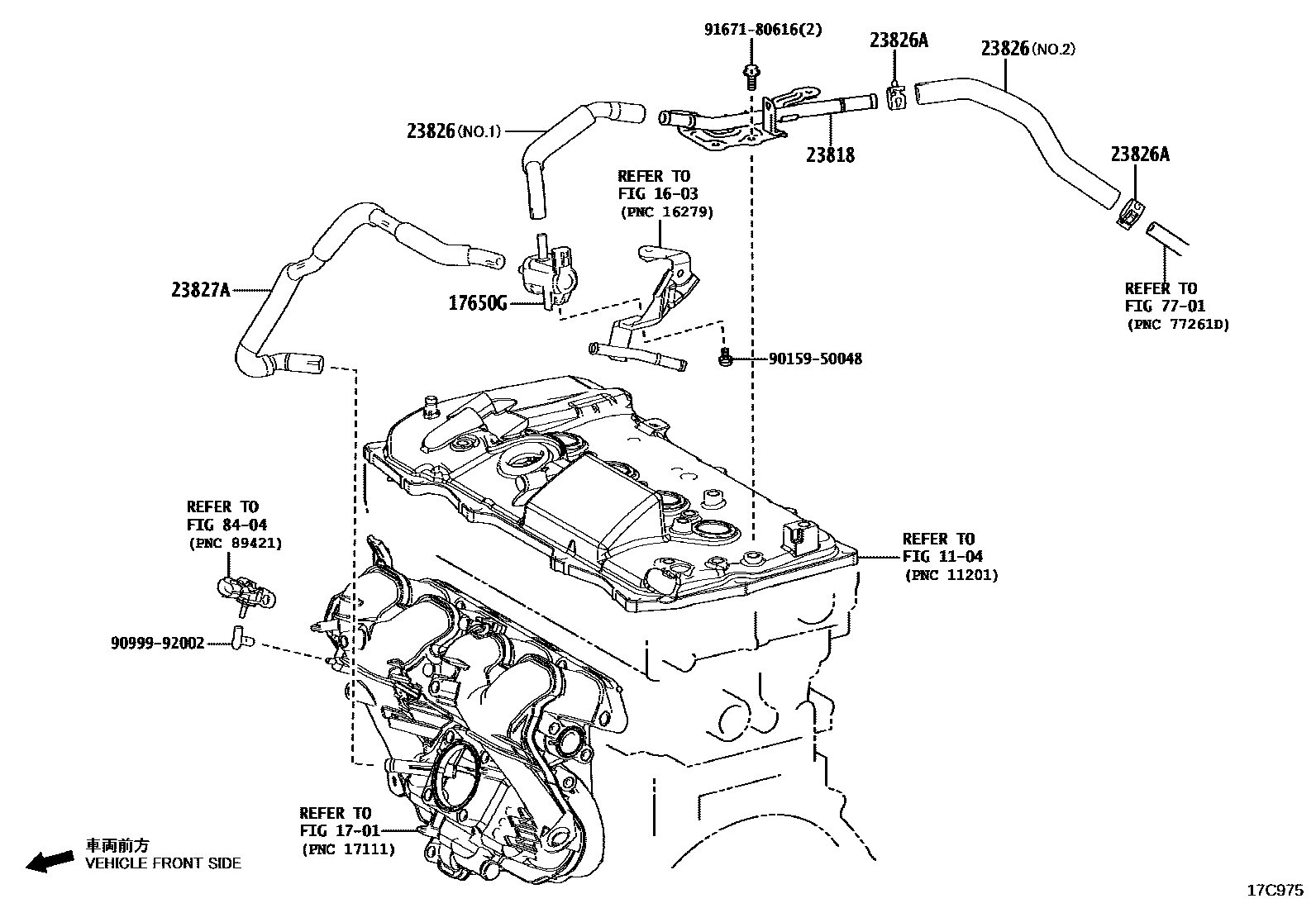

VACUUM PIPING

0001 1 0002 1

1104CYLINDER HEAD

→ Go to FIG 11-04

1603RADIATOR & WATER OUTLET

→ Go to FIG 16-03

1701MANIFOLD

→ Go to FIG 17-01

17650GVALVE, DUTY VACUUM SWITCHING

main90910-12276i2ZR#..ZSG10,ZVG10202312

23818PIPE, FUEL VAPOR FEED

main23818-37050i2ZRFXE..ZVG10202312

23826HOSE, FUEL VAPOR FEED, NO.1

main23826-0T360i2ZRFXE..ZVG10202312

NO.2

main23826-0T370i2ZRFE..ZSG10202402

NO.2

main23826-37250i2ZRFXE..ZVG10202312-202411

NO.1

main23826-37331i2ZRFE..ZSG10202402

NO.1

main23826-37340i2ZRFXE..ZVG10202411

NO.1

23826ACLIP(FOR FUEL VAPOR FEED HOSE, NO.1)

main96132-51300i2ZRFE..ZSG10202402

main96136-41901i2ZRFXE..ZVG10202312

23827AHOSE, FUEL VAPOR FEED, NO.2

main23827-37060i2ZRFE..ZSG10202402

main23827-37070i2ZRFXE..ZVG10202312

7701FUEL TANK & TUBE

→ Go to FIG 77-01

8404ELECTRONIC FUEL INJECTION SYSTEM

→ Go to FIG 84-04

9015950048

main90159-50048

9099992002

main90999-92002

9167180616

main91671-80616

13 parts on this diagram · 2 diagrams in section
