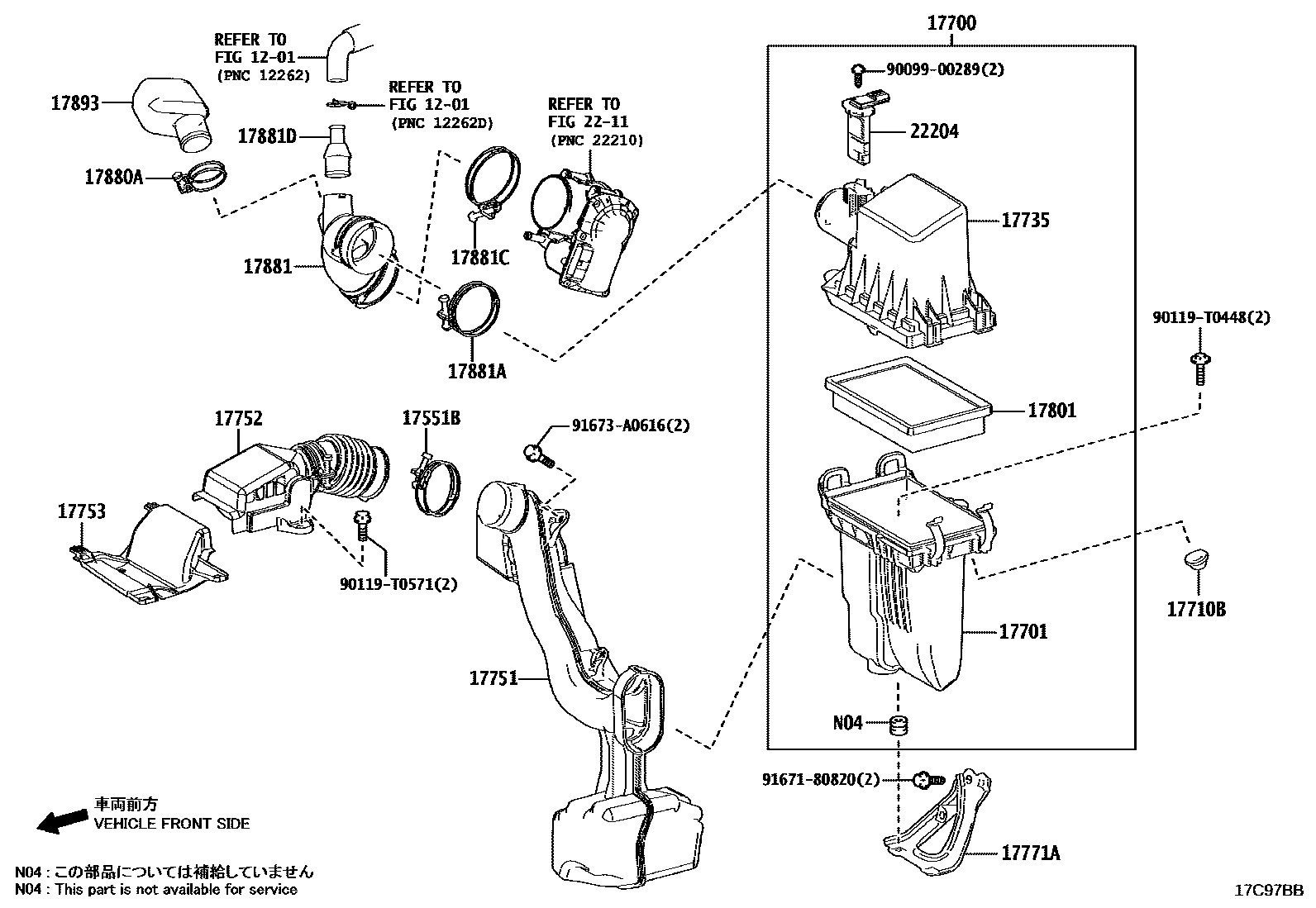

AIR CLEANER

0001 1 0002 1

1201

17551BCLAMP(FOR AIR CLEANER INLET, NO.1)

main96111-10650i2ZRFXE..ZVG10202312

17700CLEANER ASSY, AIR

main17700-0T270i2ZRFE..ZSG10202402

main17700-0T280i2ZRFXE..ZVG10202312

17701CASE SUB-ASSY, AIR CLEANER

main17701-0T220i2ZRFXE..ZVG10202312

main17701-0T230i2ZRFE..ZSG10202402

17710BGROMMET

main90480-18006i2ZR#..ZSG10,ZVG10202312

17735CAP, AIR CLEANER

main17735-0T180i2ZRFXE..ZVG10202312

main17735-0T190i2ZRFE..ZSG10202402

17751INLET, AIR CLEANER, NO.1

main17751-0T250i2ZRFXE..ZVG10202312

main17751-0T260i2ZRFE..ZSG10202402

17752INLET, AIR CLEANER, NO.2

main17752-0T100i2ZRFXE..ZVG10202312

main17752-0T110i2ZRFE..ZSG10202402

17753INLET, AIR CLEANER, NO.3

main17753-0T150i2ZRFE..ZSG10202402

main17753-0T160i2ZRFXE..ZVG10202312

17771ABRACKET, AIR CLEANER

main17771-37020i2ZRFXE..ZVG10202312

17801ELEMENT SUB-ASSY, AIR CLEANER FILTER

main17801-0T090i2ZRFXE..ZVG10202312

main17801-F0030i2ZRFE..ZSG10202402

17880ACLAMP, HOSE

main96111-10430i2ZRFXE..ZVG10202312

17881HOSE, AIR CLEANER, NO.1

main17881-0T490i2ZRFXE..ZVG10202312

main17881-0T510i2ZRFE..ZSG10202402

17881ACLAMP(FOR AIR CLEANER HOSE, NO.1)

main96111-10650i2ZRFXE..ZVG10202312

main96111-10780i2ZRFE..ZSG10202402

17881CCLAMP(FOR AIR CLEANER HOSE, NO.1)

main96111-10750i2ZR#..ZSG10,ZVG10202312

17881DTUBE, UNION(FOG AIR CLEANER HOSE)

main12229-0Y030i2ZRFE..ZSG10202402

main90904-06008i2ZRFXE..ZVG10202312

17893RESONATOR, INTAKE AIR

main17893-0T120i2ZRFXE..ZVG10202312

2211

22204METER SUB-ASSY, INTAKE AIR FLOW

main22204-75030i2ZRFXE..ZVG10202312

main22204-75040i2ZRFE..ZSG10202402

9009900289

main90099-00289

90119T0448

main90119-T0448

90119T0571

main90119-T0571

9167180820

main91671-80820

91673A0616

main91673-A0616

24 parts on this diagram · 2 diagrams in section
