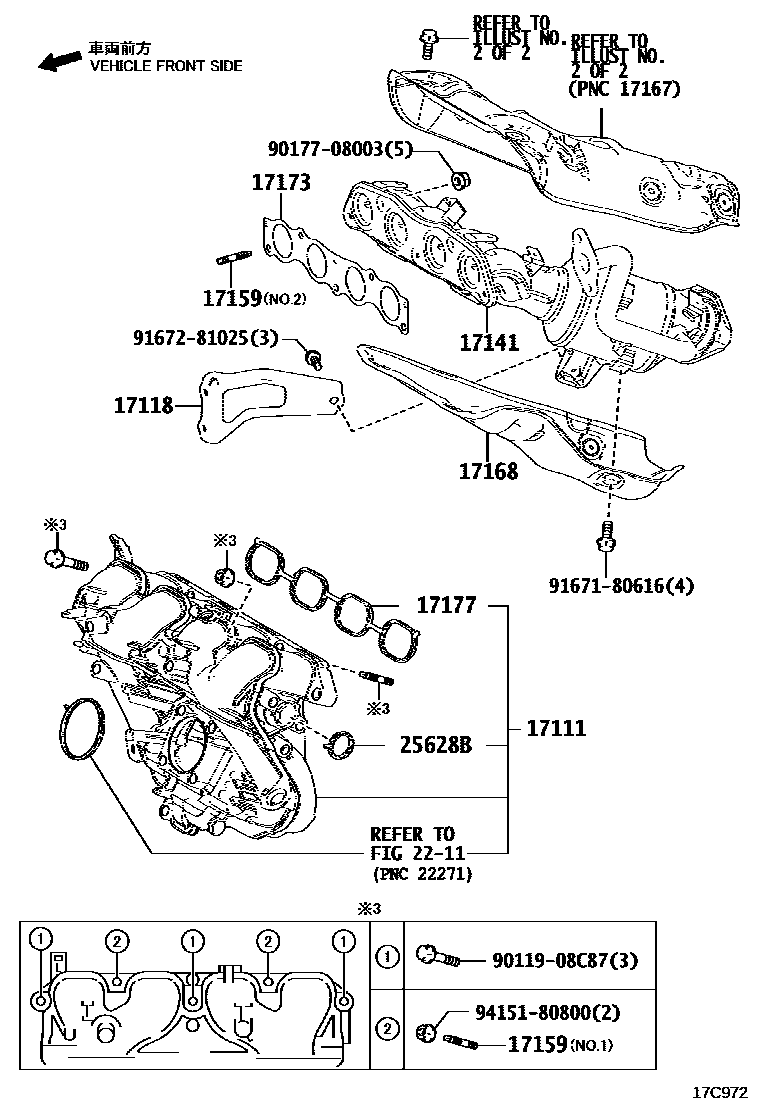

MANIFOLD

0001 1 0002 1 0003 1

17111MANIFOLD, INTAKE

main17120-37070i2ZRFE..ZSG10202402

main17120-37110i2ZRFXE..ZVG10202312

17118STAY, MANIFOLD

main17118-37010i2ZRFE..ZSG10202402

main17118-37090i2ZRFXE..ZVG10202312

17141MANIFOLD, EXHAUST

main17141-37230i2ZRFE..ZSG10202402

main17141-37321i2ZRFXE..ZVG10202312

17159BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD)

main90126-08026×2i2ZR#..ZSG10,ZVG10202312

NO.1

main90126-08052×5i2ZR#..ZSG10,ZVG10202312

NO.2

17168INSULATOR, EXHAUST MANIFOLD HEAT, NO.2

main17168-37120i2ZRFXE..ZVG10202312

main17168-37130i2ZRFE..ZSG10202402

17173GASKET, EXHAUST MANIFOLD TO HEAD

main17173-37010i2ZR#..ZSG10,ZVG10202312

17177GASKET, INTAKE MANIFOLD TO HEAD, NO.1

main17177-37030i2ZR#..ZSG10,ZVG10202312

2211FUEL INJECTION SYSTEM

→ Go to FIG 22-11

25628BGASKET, EGR INLET

main25628-36020i2ZRFXE..ZVG10202312

9011908C87

main90119-08C87

9017708003

main90177-08003

9167180616

main91671-80616

9167281025

main91672-81025

9415180800

main94151-80800

14 parts on this diagram · 3 diagrams in section
