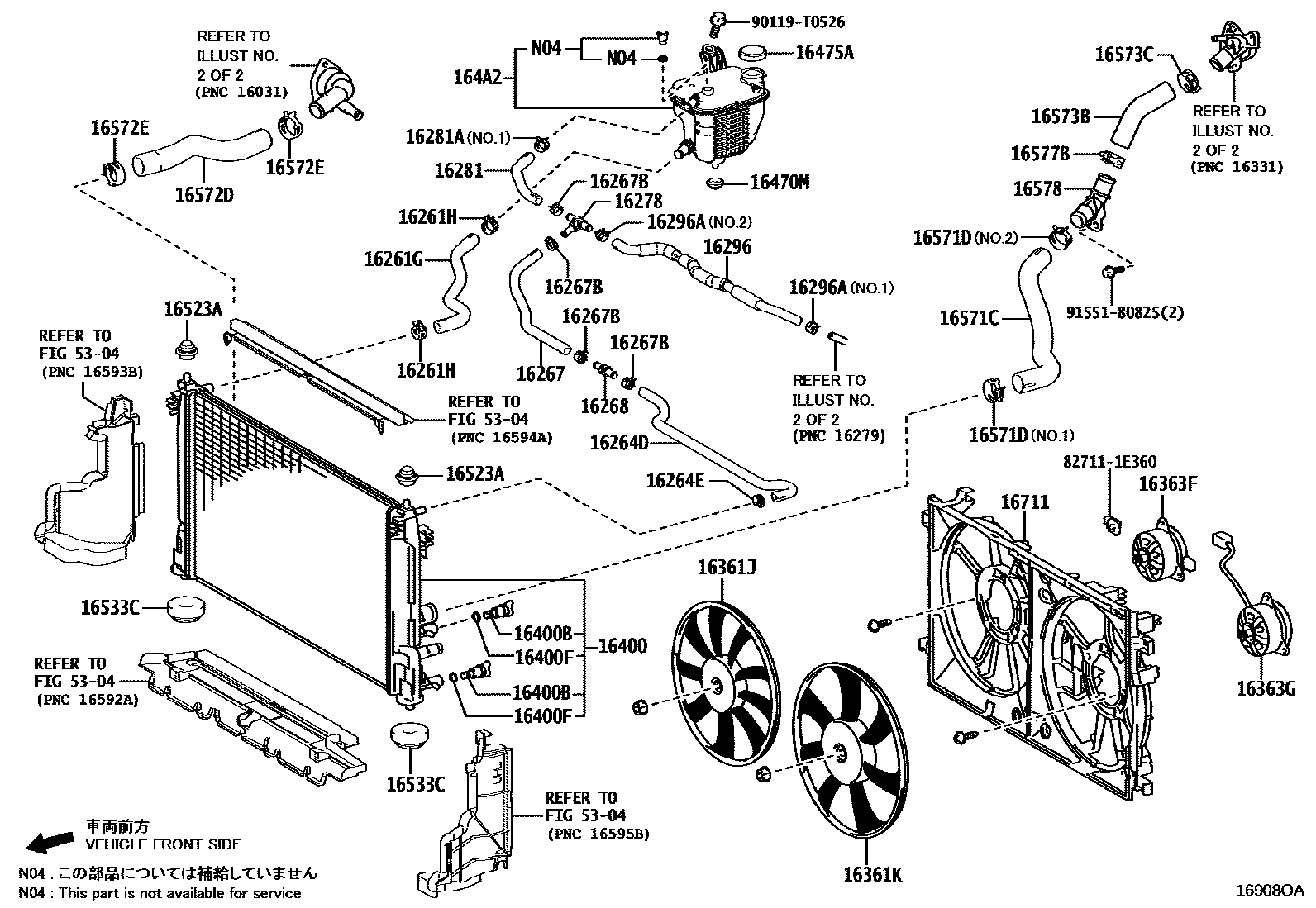

RADIATOR & WATER OUTLET
16261GHOSE, WATER BY-PASS, NO.1
16261HCLIP(FOR WATER BY-PASS HOSE NO.1)
(L)
(L)
(J)
16264DHOSE, WATER BY-PASS, NO.2
16264ECLIP(FOR WATER BY-PASS HOSE NO.2)
16267BCLIP(FOR WATER BY-PASS HOSE)
16268PIPE, WATER BY-PASS, NO.1
16278PIPE, WATER BY-PASS, NO.2
16281HOSE, WATER BY-PASS, NO.4
16281ACLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.4)
NO.2
16296HOSE, WATER BY-PASS, NO.8
16296ACLIP(FOR WATER BY-PASS HOSE NO.8)
NO.1
NO.2
16361FAN
16361JFAN, RH
16361KFAN, LH
16363MOTOR, COOLING FAN
16363FMOTOR, COOLING FAN, RH
16363GMOTOR, COOLING FAN, LH
16400BPLUG, RADIATOR DRAIN COCK
16400FPACKING(FOR RADIATOR DRAIN COCK)
16470MGROMMET
16475ACAP, RESERVE TANK
164A2TANK, RESERVE SEALED W/O CAP
16523ACUSHION, RADIATOR SUPPORT
16533CGROMMET(FOR RADIATOR SUPPORT)
16571DCLIP, RADIATOR HOSE, NO.1
NO.2
NO.1
16572ECLIP, RADIATOR HOSE, NO.2
16573CCLAMP OR CLIP, RADIATOR HOSE, NO.3
16577BCLAMP OR CLIP, HOSE(FOR RADIATOR PIPE)
16578PIPE, RADIATOR, NO.2
5304
827111E360WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)
main82711-1E360
90119T0526
main90119-T0526
9155180825
main91551-80825
41 parts on this diagram · 4 diagrams in section
