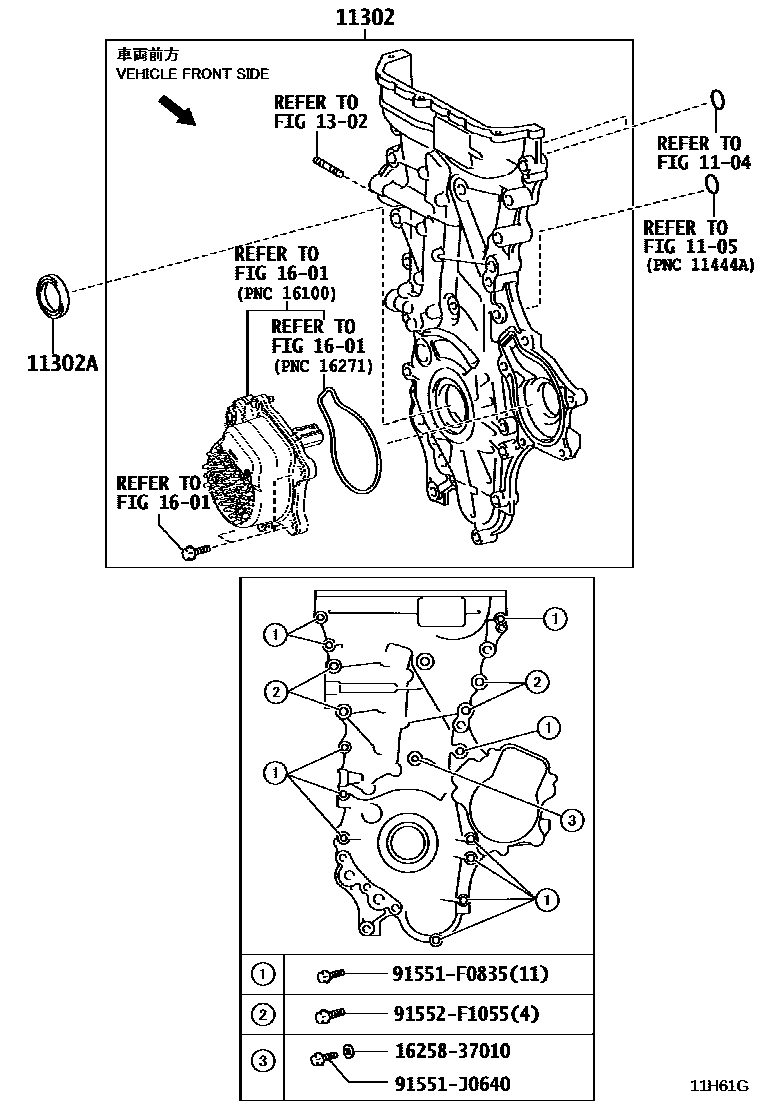

TIMING GEAR COVER & REAR END PLATE

0001 1 0002 1

1104CYLINDER HEAD

→ Go to FIG 11-04

1105CYLINDER BLOCK

→ Go to FIG 11-05

11302COVER SUB-ASSY, TIMING CHAIN OR BELT

main11310-37040i2ZRFE..ZSG10202402

main11310-37090i2ZRFXE..ZVG10202312

11302ASEAL, OIL(FOR TIMING CHAIN OR BELT COVER)

main90311-38096i2ZR#..ZSG10,ZVG10202312

1302CAMSHAFT & VALVE

→ Go to FIG 13-02

1601WATER PUMP

→ Go to FIG 16-01

1625837010GASKET(FOR HEATER RETURN)

main16258-37010

91551F0835

main91551-F0835

91551J0640

main91551-J0640

91552F1055

main91552-F1055

10 parts on this diagram · 2 diagrams in section
