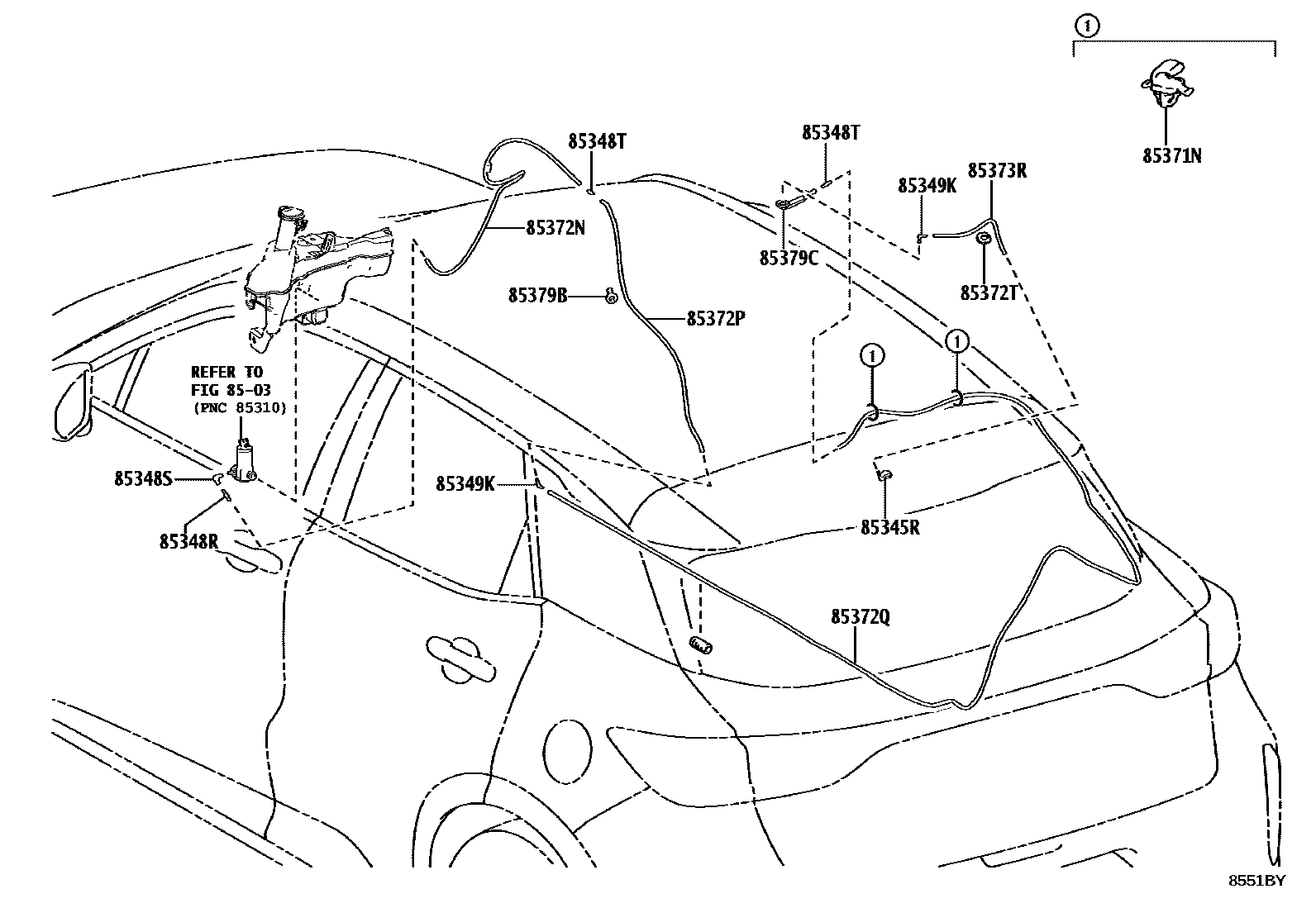

REAR WASHER

0001 1W/O(CAMERA WASHER) 0002 1W(CAMERA WASHER)

8503

85345RNOZZLE, REAR WASHER

main85391-52230iGAYA16202408

85348RJOINT, REAR WASHER HOSE, NO.1

main85349-89122iGAYA16202408

85348SJOINT, REAR WASHER ELBOW, NO.1

main85355-14481iGAYA16202408

85348TJOINT, REAR WASHER HOSE, NO.2

main85349-89122×2iGAYA16202408

85349KJOINT, REAR WASHER ELBOW, NO.2

main85355-20200×2iGAYA16202408

85371NCLAMP, REAR WASHER HOSE

main85371-12040×2iGAYA16202408

85372NHOSE, REAR WASHER (FROM JOINT TO JOINT), NO.1

main90099-33080iGAYA16202408

L=1450(*H,L=870)

85372PHOSE, REAR WASHER (FROM JOINT TO JOINT), NO.2

main90099-62263iGAYA16202408

L=1000(*H,L=670)

85372QHOSE, REAR WASHER (FROM JOINT TO JOINT), NO.3

main90099-62264iGAYA16202408

L=2800

85372TGROMMET, WASHER

main85372-20020iGAYA16202408

85373RHOSE, REAR WASHER (FROM JOINT TO NOZZLE)

main90099-33080iGAYA16202408

L=1450(*H,L=240)

85379BGROMMET, WASHER, A

main85379-12850iGAYA16202408

85379CGROMMET, REAR WASHER HOSE NO.1

main85372-20040iGAYA16202408

14 parts on this diagram · 2 diagrams in section
