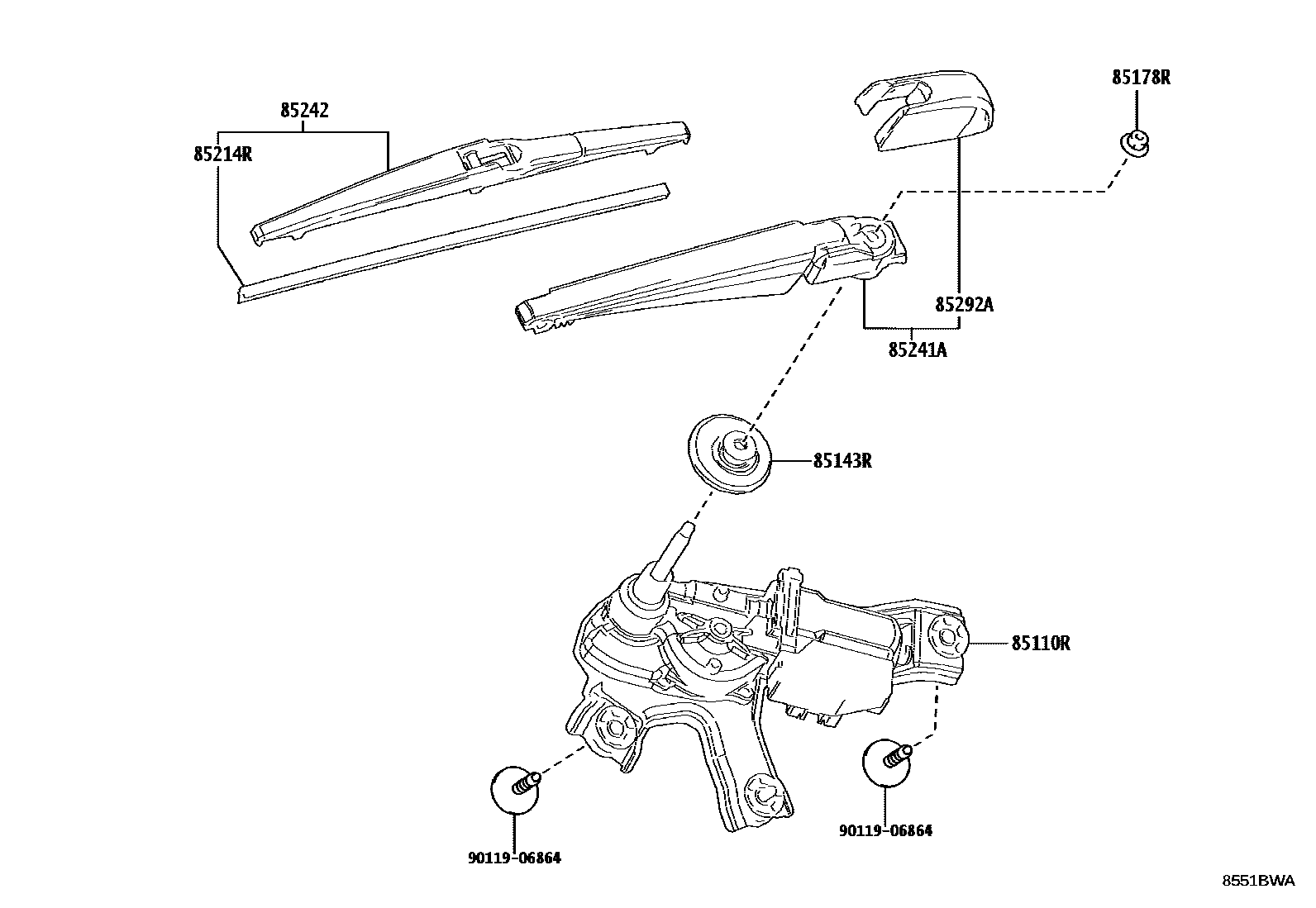

REAR WIPER

85110RMOTOR ASSY, REAR WIPER

main85130-52320iGAYA16202408

85143RGROMMET, REAR WIPER MOTOR

main85143-28070iGAYA16202408

85178RNUT (FOR REAR WIPER ARM SETTING)

main90179-06158iGAYA16202408

85214RRUBBER, REAR WIPER

main85214-42060iGAYA16202408

85241AARM, REAR WIPER

main85241-52270iGAYA16202408

85242BLADE, RR WIPER

main85242-K0030iGAYA16202408

85292ACAP, REAR WIPER ARM HEAD

main85292-42010iGAYA16202408

9011906864

main90119-06864

8 parts on this diagram · 1 diagram in section
