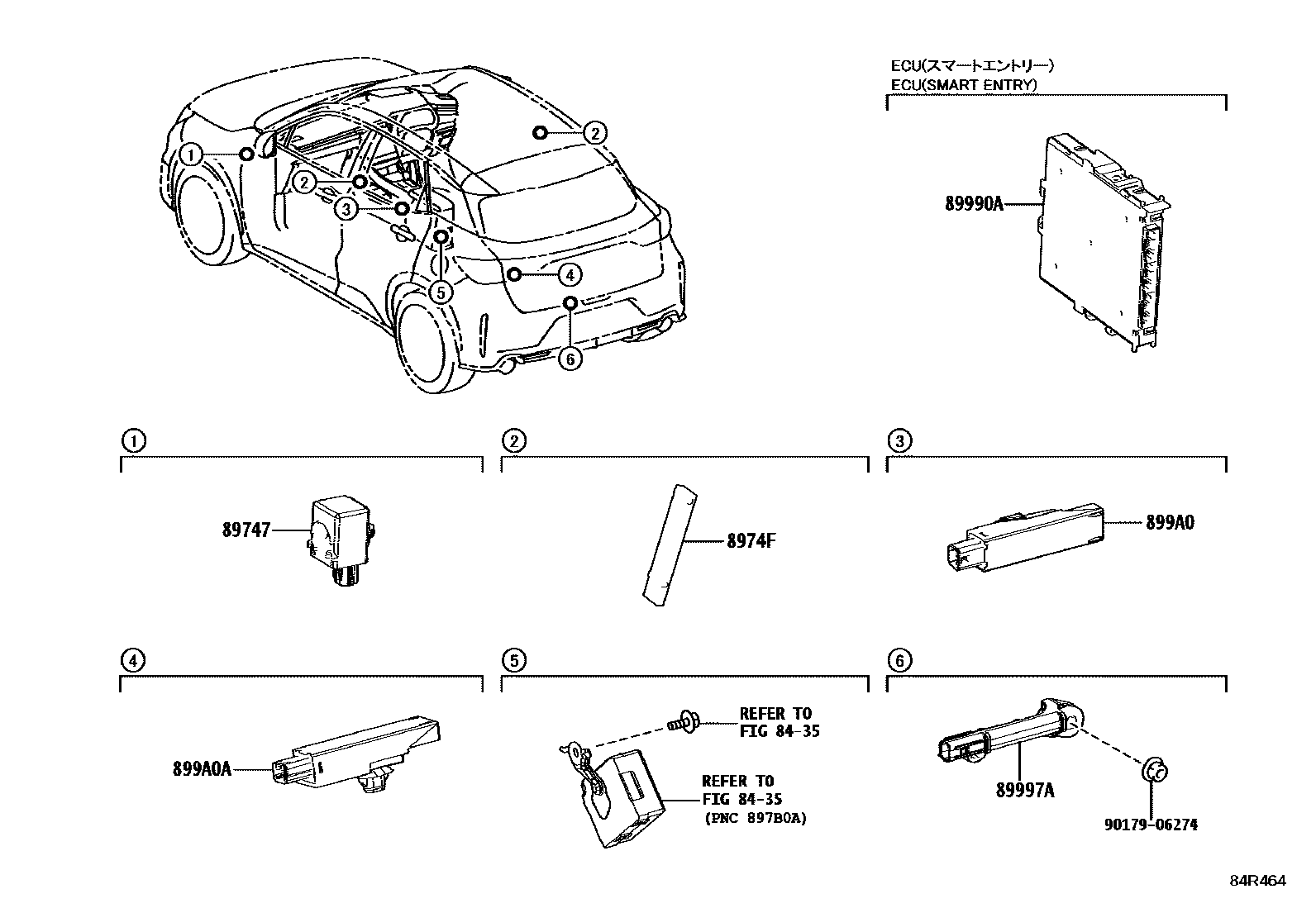

WIRELESS DOOR LOCK

8435TIRE PRESSURE WARNING SYSTEM

→ Go to FIG 84-35

89747BUZZER, WIRELESS DOOR LOCK

main89747-30040iGAYA16202408

8974FCASE, W/O DIGITAL KEY

main8974F-78010×2iGAYA16202408

89990ACOMPUTER ASSY, SMART KEY

main899H0-52260iGAYA16202408

89997AANTENNA, ELECTRICAL KEY, NO.2

main89997-30100iGAYA16202408

899A0ANTENNA ASSY, INDOOR ELECTRICAL KEY, NO.1

main899A0-12080iGAYA16202408

899A0AANTENNA ASSY, INDOOR ELECTRICAL KEY, NO.2

main899A0-12130iGAYA16202408

9017906274

main90179-06274

8 parts on this diagram · 1 diagram in section
